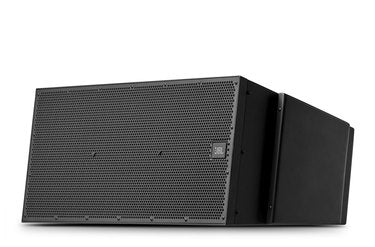

JBL VLA-C2100-GR Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF

SKU: VLAC2100GR  |  UPC: 691991010354
$7,960.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Seamless Rigging System\n Built to Weather the Elements\n Powerful Low-Frequency Performance\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Seamless Rigging System

  • Built to Weather the Elements

  • Powerful Low-Frequency Performance


Introducing the VLA-C2100: A Masterpiece of Audio Engineering

Unleash the power of sound with the VLA-C2100, a line array module that seamlessly blends cutting-edge technology with superior design for unparalleled audio experiences. Crafted with precision and built to perform, this speaker system is a game-changer for permanent installations.

Exceptional High-Frequency Precision

At the heart of the VLA-C2100 lies JBL's proven technology, ensuring uncompromised quality. Its high-frequency section is horn-loaded, offering maximum sensitivity and precise pattern control. This section boasts three D2415 drivers, each sporting a 1.5” annular diaphragm, 1.5” voice coil, and neodymium motors. The result? Crystal-clear highs that elevate your audio to the next level.

Powerful Low-Frequency Performance

The low-frequency section of the VLA-C2100 is driven by dual 2261 10” Differential Drive® drivers with 3” voice coils. These components work in harmony to deliver deep, resonant bass that shakes the ground and stirs the soul.

Built to Weather the Elements

Designed for durability, the VLA-C2100 features enclosures constructed from multi-layer reinforced fiberglass and steel end-panels. Its grilles, zinc plated and powder coated with 14-gauge perforated steel, are not just rugged but acoustically transparent. They are backed by hydrophobic mesh and a waterproof rail system, ensuring your investment remains protected, come rain or shine.

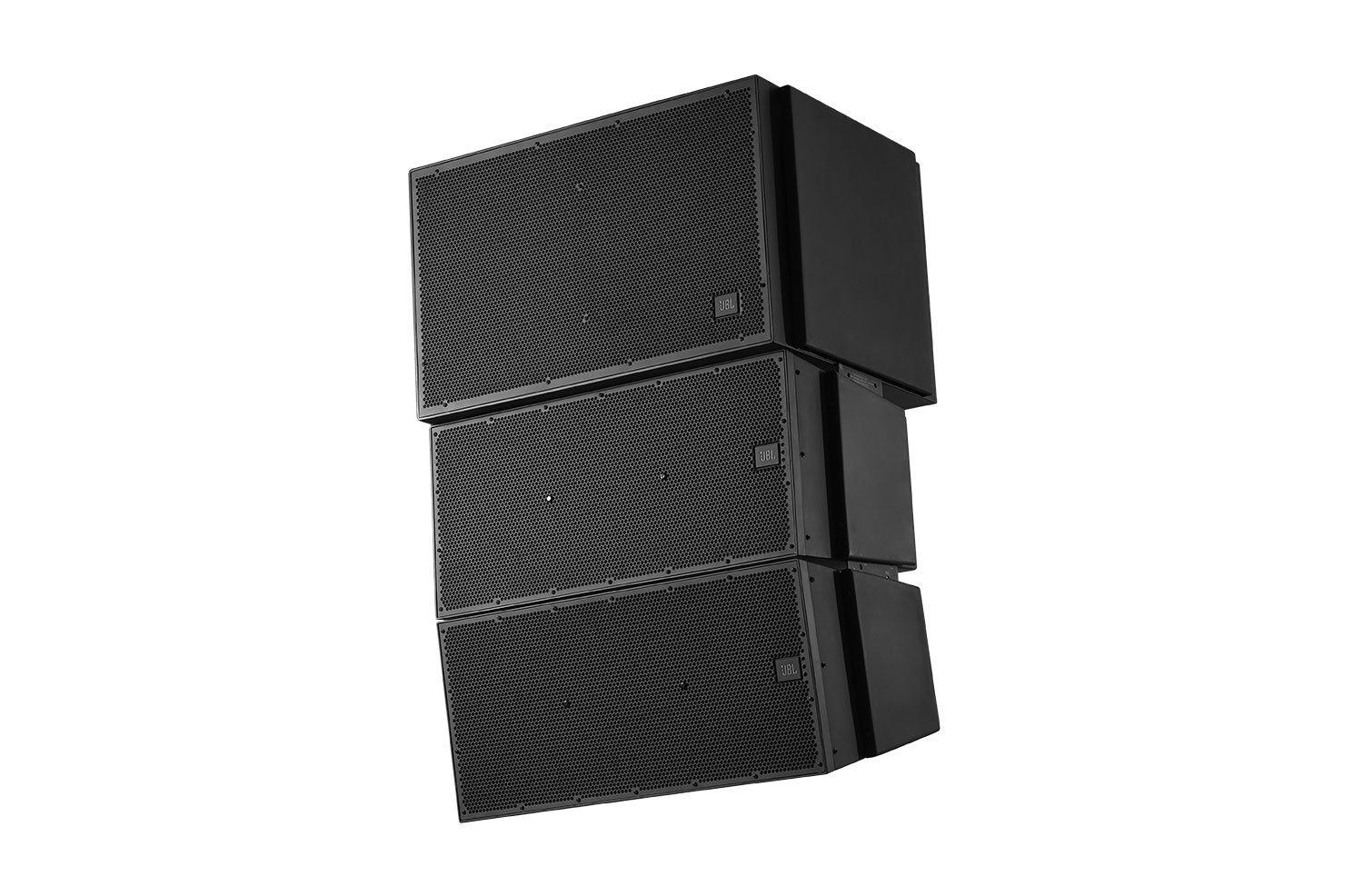

Seamless Rigging System

Setting up your line array has never been easier. The VLA-C2100's inherent rigging system allows you to select inter-box angles during assembly, providing flexibility for any venue. Plus, additional accessories such as the rigging frame, pull-back bar, and cardioid kit for the sub expand your configuration possibilities.

Versatile Amplification Options

Choose your audio destiny with the VLA-C2100. You can bi-amplify it for maximum SPL, or opt for passive feeding to reduce amplification costs. This versatility empowers you to tailor your setup to your specific needs.

Expansive Sound Coverage

With a 100° horizontal coverage pattern, the VLA-C2100 blankets your venue in breathtaking sound. No matter where you are in the audience, you'll experience audio immersion like never before.

The VLA-C2100: Where Innovation Meets Acoustical Excellence. Elevate your audio experience today.

Is This Right For You?


Recommendation


JBL VLA-C2100-GR Two-Way Full Range Loudspeaker with 2 x 10 Differential Drive LF
JBL

JBL VLA-C2100-GR Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF

$7,960.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

Sensitivity4
: Full-Range: 102 dB (85 Hz – 19 kHz)
Bi-Amp LF: 100 dB (85 Hz – 950 Hz)
Bi-Amp HF: 107 dB (950 Hz – 19.2 kHz)
Coverage Pattern (-6 dB): Horizontal: 100° (+5°/-15°, 1.5 kHz to 15 kHz)
Vertical: Varies with array size and configuration
Impedance: Full-Range: 8Ω, 6.7Ω min @ 200 Hz
Bi-Amp LF: 8Ω, 6.9 Ω min @ 230 Hz
Bi-Amp HF: 16 Ω, 15.9 Ω min @ 1.1 kHz
Amplifiers: Crown DCi Family with DSP on-board
Recommended: Crown DCi 2 | 1250N
Crown DCi 4 | 1250N/ND/DA
Crown DCi 2 | 2400N
Crown DCi 4 | 2400N

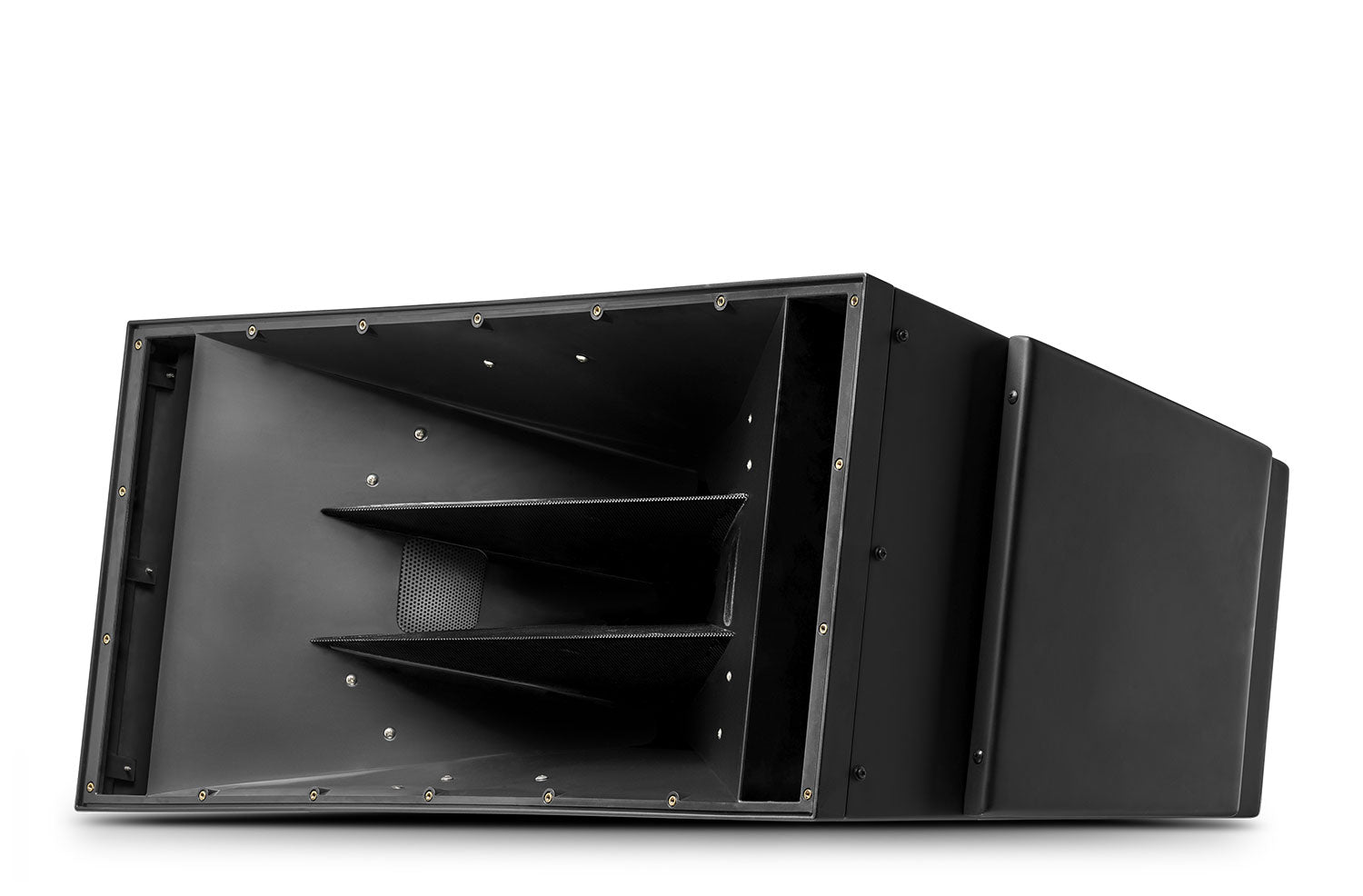

Included grilles removed, -BK model shown, included side trim cover panel installed
Transducers:
Low Frequency Driver:
High Frequency Driver:
2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in)
diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers,
each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Physical:
Enclosure Material: Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal
bracing.
Grille: Powder coated 14 gauge hex-perforated steel with zinc under-coating,
backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles: VLA-C2100 to VLA-C2100: 2.4°, 3.8°, 6.0°, 9.5°, 15° using
VLA-C2100 Bracket Plate (included with VLA-C2100)
VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9°, 3.0°
using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°,
7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)
VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be
connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate
(included with VLA-C125S)
Environmental: IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals: CE-compliant covered barrier strip terminals. Barrier terminals accept up
to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs.
Touch-proof covers

Frequency Range (-10 dB)1
: 86 Hz - 18 kHz
Frequency Response (±3 dB)1
: 109 Hz – 15.3 kHz
