Product Summary


  • 60° by 40° Coverage Pattern

  • Integrated Rigging System

  • Pattern Control Below 400 Hz


Introducing the pinnacle of audio excellence – the PD764i Very High Output Mid-High Loudspeaker System. Engineered to redefine the boundaries of sound reinforcement, the PD764i Precision Directivity™ loudspeaker delivers an extraordinary impact that transcends the limitations of single-driver designs. With just a single module, experience an astounding continuous output exceeding 104 dB SPL, effortlessly spanning distances of up to 50 meters (165 feet).

The PD764i stands as a testament to versatility, seamlessly integrating into clusters alongside other PD family modules, or standing confidently as a solo powerhouse within a distributed system.

Key Features:

  • 60° by 40° Coverage Pattern: The symmetrical frontal dimensions of the PD764i provide the flexibility of horizontal or vertical orientation within an array, adapting to your sound reinforcement needs with ease.

  • IFS™ Interference Free Summation Dual HF Driver Module: Redefining performance, the IFS™ module eliminates destructive interference and elevates output by an impressive 6 dB, ensuring unmatched clarity.

  • Dual 2432H Compression Drivers: Equipped with 3” diaphragms, these dual compression drivers deliver exceptional high frequencies, guaranteeing a pristine audio experience.

  • Dual CMCD-82H 8” Horn Loaded Cone Mid-Range Drivers: Pushing boundaries, these dual mid-range drivers provide a remarkable 6 dB increase in output compared to traditional designs, setting new standards for sound projection.

  • Pattern Control Below 400 Hz: Impeccable pattern control is maintained even in lower frequencies, ensuring consistent and uniform audio dispersion.

  • Co-axial Mid/High-Frequency Module Layout: Optimized for seamless mid-frequency arraying and minimal size, the co-axial layout enhances overall system performance.

  • Integrated Rigging System: Simplifying array design and construction, the integrated rigging system ensures a hassle-free setup while guaranteeing secure installations.


Unleash the potential of your audio with the PD764i Very High Output Mid-High Loudspeaker System. Whether you integrate it into an array or let it shine individually, its innovative design and superior capabilities make it the ultimate choice for elevating your sound reinforcement endeavors.

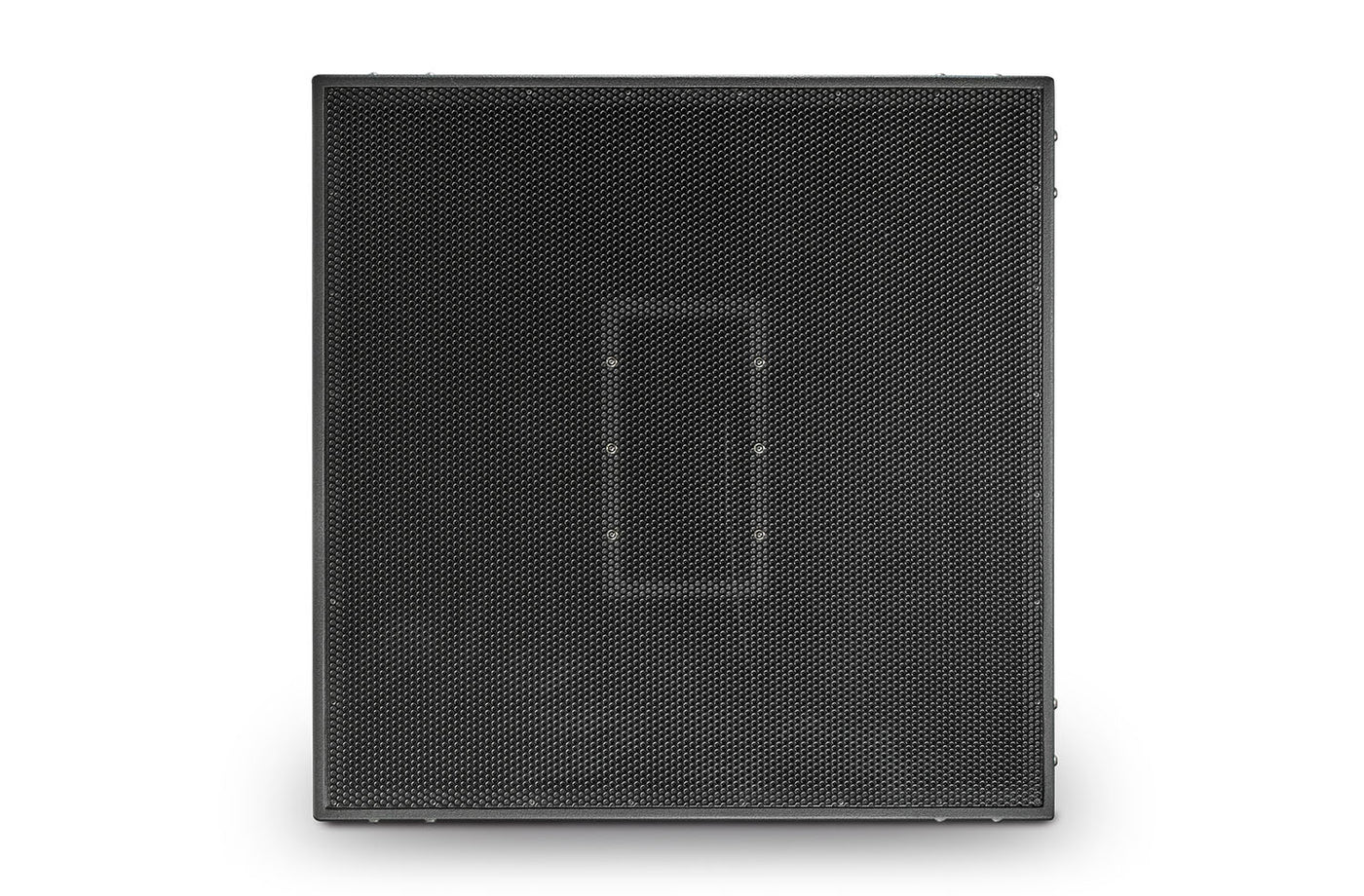

JBL PD764i-WRC 8" Very High Output Mid-High Loudspeaker System

SKU: PD764iWRC
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD764i-WRC 8" Very High Output Mid-High Loudspeaker System Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>60° by 40° Coverage Pattern</li>\n <li>Integrated Rigging System</li>\n <li>Pattern Control Below 400 Hz</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 200 Hz to 19.5 kHz
Frequency Response (±3 dB) 230 Hz - 18.5 kHz
Coverage Pattern 60° x 40°
Directivity Index (DI) 13 dB
System Sensitivity (1w @ 1m) Passive Mid-High: 110 dB SPL
Maximum SPL (1m) MHF - 142 dB Peak
Transducer Power Rating (AES) MHF - 400 W (1600 W Peak)
Crossover Frequencies 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
MF Driver 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil
HF Driver 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance MF: 4 ohms HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Enclosure WRC/WRX Version For direct exposure or extreme environments, berglassed with stainless steel hardware
Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing
Grille WRC/WRX Version Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh
Input Connector NL4 for bi-amp operation
Input Connectors WRC/WRX Version 4 conductor 16 awg direct burial cable assy 20 length
Environmental Available WRC/WRX Version: IP55
Suspension Attachment 52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar
Dimensions (H x W x D) 991 mm x 991 mm x 1145.8 mm(39.0 x 39.0 x 45.1 in)
Net Weight (each) 215 lbs (97.7 kg)
Crossover Modes Passive
System Power Rating MHF - 400 W (1600 W Peak) (AES rated)
