Product Summary


  • Unrivaled Mid-Frequency Power

  • Innovative Co-Axial Design

  • Effortless Integration














Presenting the PD743i Precision Directivity™ Loudspeaker System – a groundbreaking solution that delivers commanding sound reinforcement over distances that once eluded traditional single-driver designs. This versatile system redefines audio impact, setting new standards for immersive sonic experiences.

Key Features:

Unmatched Sound Impact: The PD743i is engineered to redefine sound reinforcement, effortlessly covering distances beyond the capabilities of conventional single-driver setups. A single module produces an astounding continuous output exceeding 104 dB SPL at distances of up to 50 meters (165 feet).

Cluster or Solo, Your Choice: The PD743i-215 shines both in clusters alongside other PD family modules or as a standalone powerhouse in distributed systems. Its adaptability ensures its excellence in various configurations.

Flexible Coverage: With a symmetrical 40° by 30° coverage pattern, the PD743i offers the freedom of horizontal or vertical orientation within an array. This adaptability guarantees a perfect fit within your setup.

Cutting-edge IFST Technology: Our revolutionary Interference Free Summation Technology (IFST) dual HF driver module sets new benchmarks in sound optimization. By eliminating destructive interference and boosting output by an impressive 6 dB, it crafts a pristine auditory landscape.

Unrivaled Mid-Frequency Power: Featuring dual 8-inch horn-loaded cone mid frequency drivers, the PD743i achieves an incredible 6 dB greater output compared to conventional designs. This formidable power extends even below 400 Hz, ensuring crystal-clear and impactful audio across all frequencies.

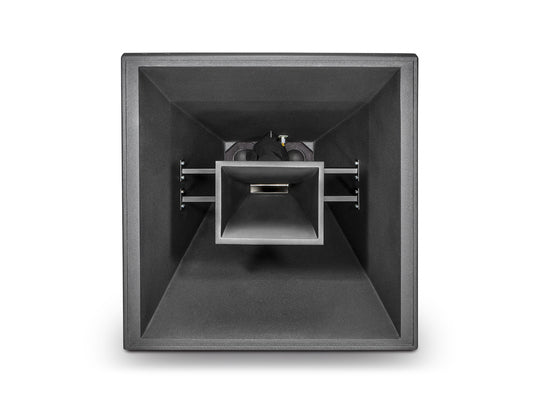

Innovative Co-Axial Design: The co-axial mid/high-frequency module layout not only enhances mid-frequency arrayability but also minimizes the system's overall size. This ingenious design contributes to a harmonious and immersive sound experience.

Effortless Integration: With an integrated rigging system, the PD743i streamlines array design and construction, simplifying the setup process while maintaining precision.

Experience the future of sound reinforcement with the PD743i Precision Directivity™ Loudspeaker System. It redefines the capabilities of mid-high loudspeaker technology, delivering an unrivaled combination of power, adaptability, and audio excellence.

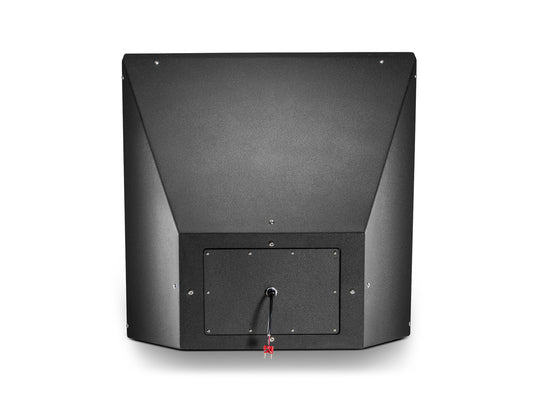

JBL PD743i-WRC 8" Very High Output Mid-High Loudspeaker System

SKU: PD743iWRC
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD743i-WRC 8" Very High Output Mid-High Loudspeaker System Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Unrivaled Mid-Frequency Power</li>\n <li>Innovative Co-Axial Design</li>\n <li>Effortless Integration</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 200 Hz to 19.5 kHz
Frequency Response (±3 dB) 230 Hz - 18.5 kHz
Coverage Pattern 40° x 30°
Directivity Index (DI) 16 dB
System Sensitivity (1w @ 1m) Passive Mid-High: 110 dB SPL
Maximum Peak SPL MHF - 142 dB Peak Passive Mode
Transducer Power Rating (AES) MHF - 400 W (1600 W Peak)
Crossover Frequencies 1.2 kHz
DSP Custom DSP for Crown ITHD and IT4x3500HD amplifiers
MF Driver 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil
HF Driver 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance MF: 4 ohms HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Enclosure WRC/WRX Version For direct exposure or extreme environments, berglassed with stainless steel hardware

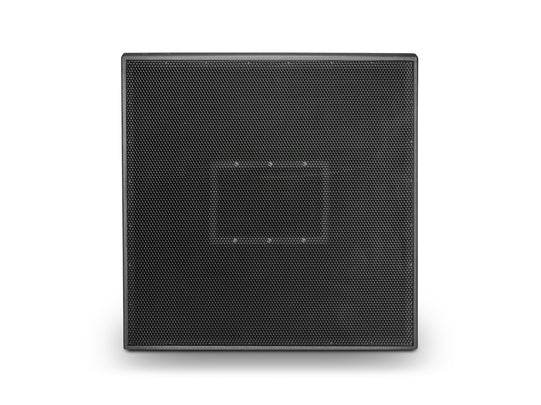

Grille Black powder coated zinc treated 14 gauge perforated steel with black foam backing
Grille WRC/WRX Version Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh
Input Connector NL4 for bi-amp operation
Input Connectors WRC/WRX Version 4 conductor 16 awg direct burial cable assy 20 length (or length TBD)
Suspension Attachment 32 total points (7 top and bottom, 7 each side, 4 back), M10 threaded hardware
Dimensions (H x W x D) 991 mm x 991 mm x 1145.8 mm (39.0 x 39.0 x 45.1 in)
Net Weight (each) 245 lbs (111.4 kg)
Crossover Modes Passive
System Power Rating MHF - 400 W (1600 W Peak) (IEC rated)
Environmental Available WRC/WRX Version: IP55
