Product Summary


  • Large format neodymium HF

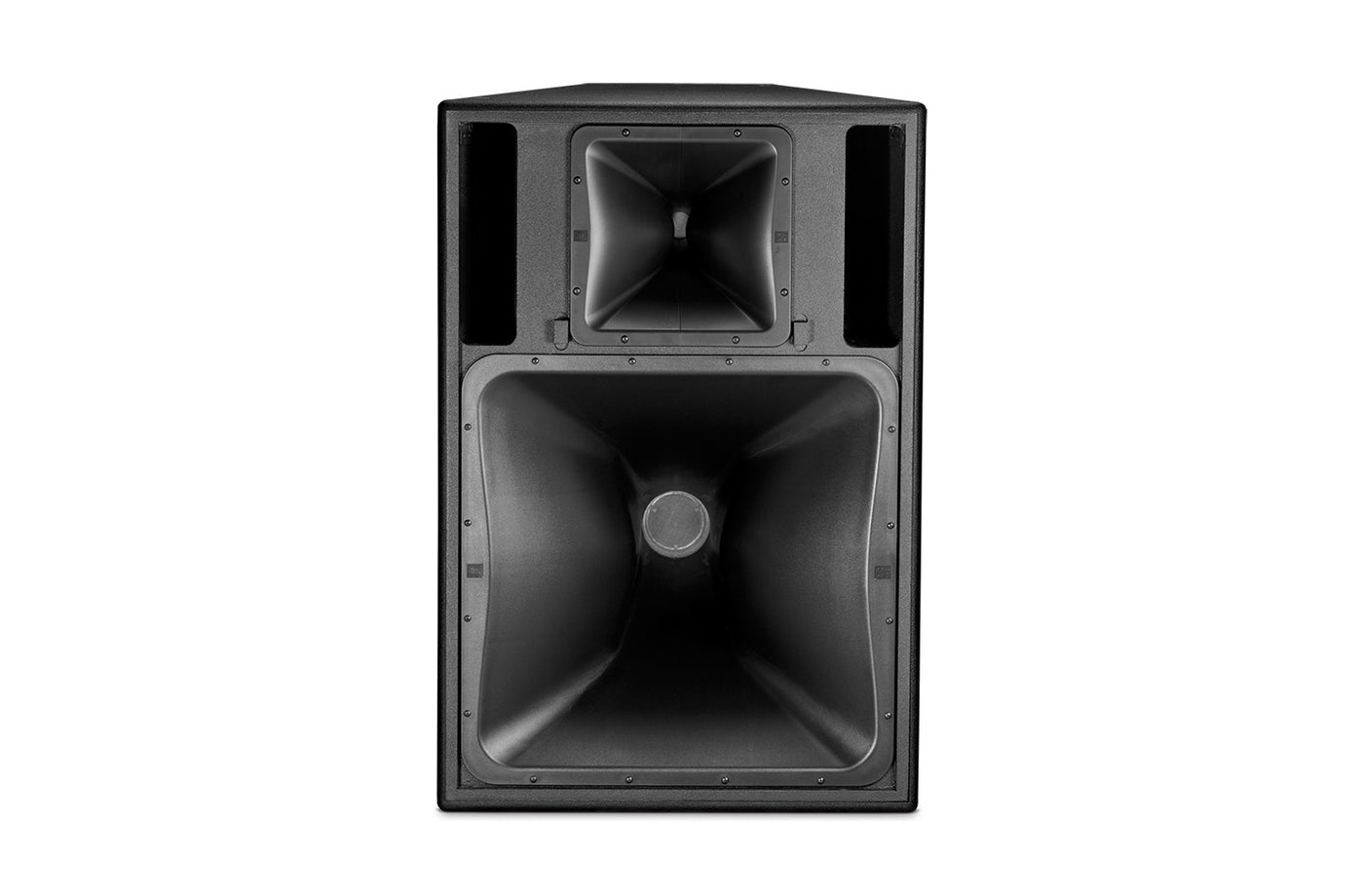

  • Rotatable mid and high-frequency waveguides

  • Clear and intelligible high-frequency projection

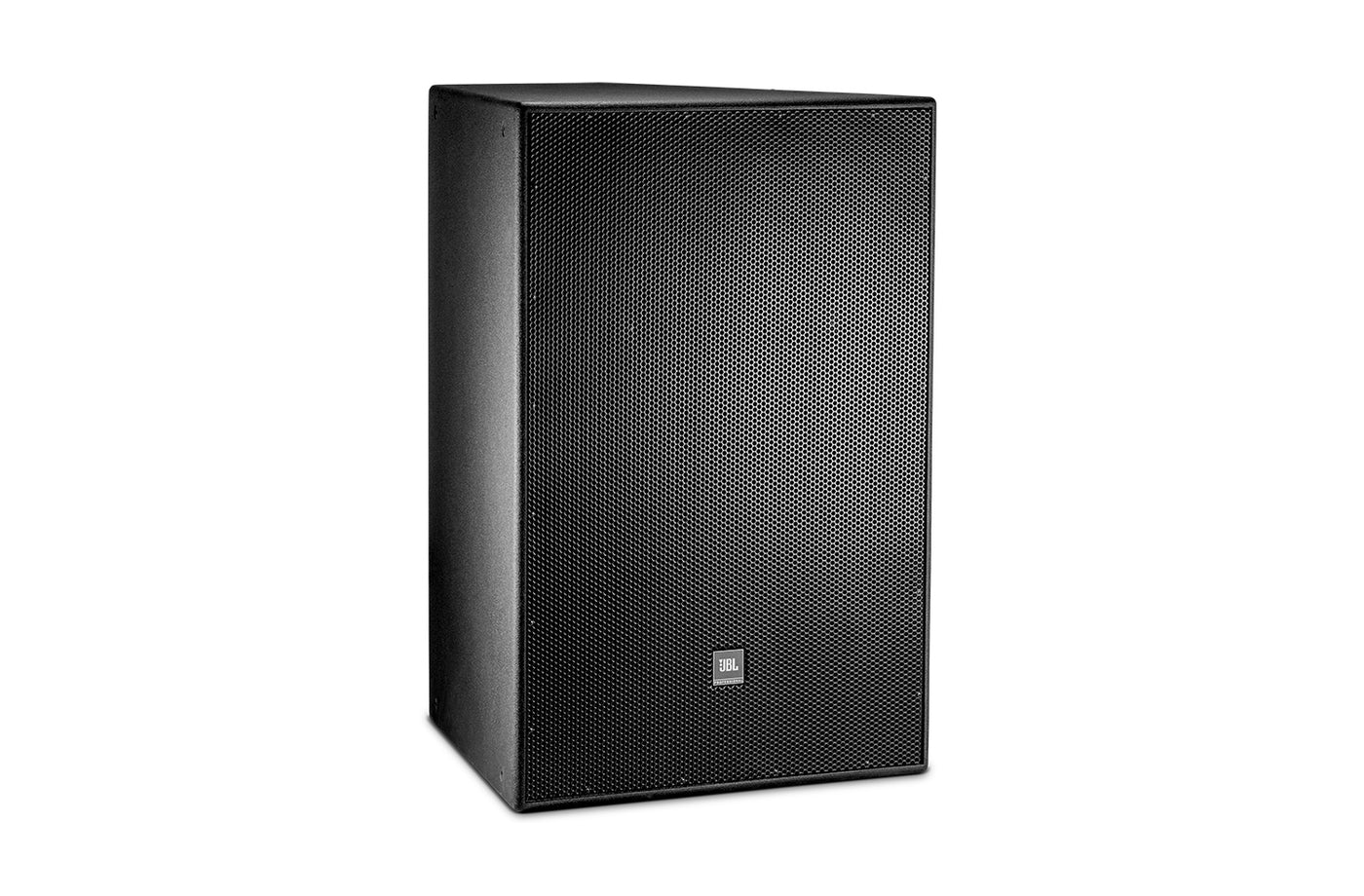

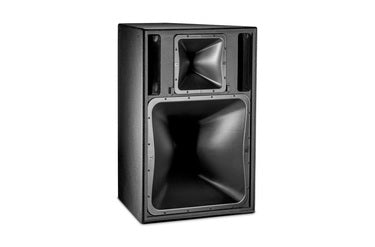

Precision Directivity Full Range Three-Way Loudspeakers: PD6322

When it comes to uncompromising audio quality and precise sound control, look no further than the PD6322 Precision Directivity full range, three-way loudspeakers. These speakers are meticulously engineered to meet the demands of applications that require both high output sensitivity and impeccable pattern control. Whether you're setting the stage for a captivating musical performance or delivering a powerful speech, the PD6322 loudspeakers are your trusted companions.

Key Features:

  • Deep, Resonant Bass: The PD6322 is equipped with two high-power 300 mm (12 in) transducers in a compact slot-loaded configuration. This design delivers impressive low-frequency extension down to 40 Hz, ensuring that the audience feels the depth and power of the bass in every note.

  • Midrange Precision: The high-power CMCD™ (Cone Midrange Compression Driver) is a game-changer in the audio world. It offers high sensitivity, continuous SPL capability, low distortion, extended bandwidth, and impeccable phase coherence. Your music and speeches will be reproduced with exceptional clarity and precision.

  • Crystal-Clear Highs: Thanks to the large format neodymium HF (High-Frequency) driver, the PD6322 provides clear and intelligible high-frequency projection. This driver captures the finest nuances and details of your audio, ensuring that the highs shine with brilliance.

  • Consistent Pattern Control: The PD6322 features large PT™ (Progressive Transition™) waveguides that provide consistent pattern control. This feature guarantees that your sound remains focused and precise, even when you're operating at high SPL (Sound Pressure Level) levels. Distortion is minimized, and the frequency response is smooth and accurate.

  • Flexible Cabinet Orientation: To cater to various venue setups, the PD6322 is equipped with rotatable mid and high-frequency waveguides. You can choose either horizontal or vertical cabinet orientation, ensuring adaptability for any space.

  • Advanced Crossover: The loudspeakers feature a sophisticated, steep-slope passive mid-high crossover network with switchable tri-amp/bi-amp crossover modes. This level of flexibility allows you to fine-tune your audio setup to perfection.


Versatile Applications:

The PD6322 Precision Directivity loudspeakers are designed to excel in a wide range of professional applications:

  • Live Performances: Whether it's a concert, a conference, or a theater production, these speakers ensure that your audio is delivered with outstanding clarity and power.

  • Speech and Presentations: Captivate your audience during speeches and presentations, knowing that your voice will be heard with precision and impact.

  • Studio and Recording: Whether you're in a recording studio or capturing a live performance, the PD6322 reproduces audio with uncompromising accuracy.

  • Houses of Worship: Enhance the spiritual experience with clear, articulate sound in places of worship.

  • Event Production: From weddings to corporate gatherings and sporting events to theme parks, these loudspeakers shine in various event production scenarios.


In conclusion, the PD6322 Precision Directivity full range, three-way loudspeakers are your gateway to audio excellence. With their outstanding features, adaptability, and versatile applications, they elevate sound quality to new heights, ensuring that your audience experiences audio brilliance in every setting. Whether you're a seasoned audio professional or an enthusiast, these loudspeakers are a must-have addition to your audio toolkit.

JBL PD6322/95-WRC Precision Directivity Full Range Three-Way Loudspeakers

SKU: PD632295WRC | UPC: 691991014772
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL PD6322/95-WRC Precision Directivity Full Range Three-Way Loudspeakers Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Large format neodymium HF</li>\n <li>Rotatable mid and high-frequency waveguides</li>\n <li>Clear and intelligible high-frequency projection</li>\n</ul>

Technical Details

Specifications

General
Enclosure Type
Horn / Folded Horn Loudspeaker
Total Power Capacity
Passive: 4800 W Peak (at 4 Ohms) 1200 W Peak (at 4 Ohms) Tri-Amp: 6400 W Peak 1400 W Peak 300 W Peak
System Impedance
HF: 1 x 8 Ohms (Tri-Amp) MF: 1 x 8 Ohms (Tri-Amp) LF: 2 x 8 Ohms (Tri-Amp)
Drivers
HF Driver
1 x 1.5" / 38.1 mm Rotatable Horn Aluminum Compression Driver with 1.5" / 38.1 mm Throat
HF Voice Coil
4" / 101.6 mm
MF Driver
1 x 8" / 203.2 mm Horn-Loaded Cone Compression Driver
MF Voice Coil
Dual 3" / 76.2 mm
LF Driver
2 x 12" / 304.8 mm Woofer
LF Voice Coil
3" / 76.2 mm
Magnet
Neodymium
Performance
Frequency Range
41 Hz to 18 kHz -10 dB
Frequency Response
49 Hz to 16 kHz ±3 dB
Maximum SPL
140 dB SPL (Passive) 134 dB SPL (LF) 140 dB SPL (MF, Tri-Amp) 139 dB SPL (HF, Tri-Amp)
Coverage Angle
90° H x 50° V (Rotatable Horn)
Directivity
10.5 dB (Directivity/Q Factor) 10.2 dB (Directivity Index)
Speaker Sensitivity
Passive: 109 dB SPL LF/Tri-Amp: 96 dB SPL MF/Tri-Amp: 109 dB SPL HF/Tri-Amp: 114 dB SPL
Connectivity
Audio I/O
1 x speakON NL8 Speaker Input (Lockable) 1 x Barrier Strip Speaker Input/Thru
Signal Processing
Crossover
1.5 kHz (Passive)
Physical
Mounting
20 x M10 (Bottom, Each Side, Rear, Top)
Environmental Protection
None
Construction Material
Metal Grille, Plywood
Dimensions
39 x 26.5 x 27.8" / 990.6 x 673.1 x 706.1 mm
Weight
170 lb / 77.1 kg
