SKU:
PD632264H

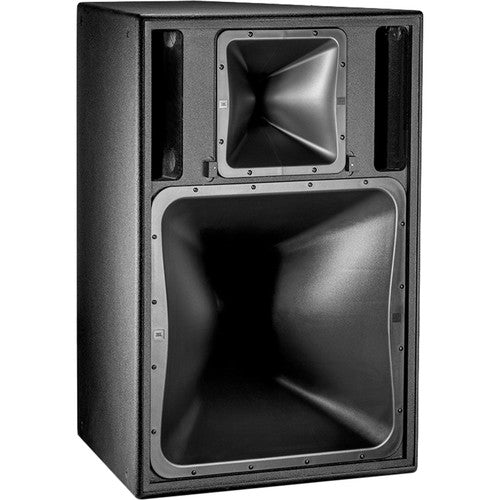

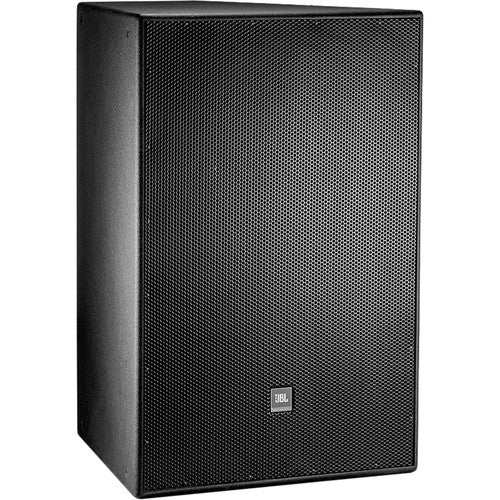

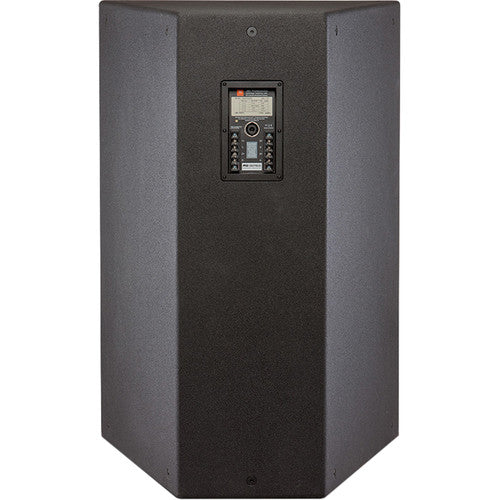

JBL PD6322/64-H Passive/Tri-Amp Three-Way Full-Range Loudspeaker (Black)
$5,850.00
Unit price
/
Unavailable
Free Shipping At Checkout!
JBL PD6322/64-H Passive/Tri-Amp Three-Way Full-Range Loudspeaker (Black) is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
Product Highlights:
- Pattern Control and Off-Axis Response
- Low-frequency extension to 40 Hz up to 17 kHz
- Consistent coverage pattern of 60x40 degrees
Click above to submit a purchase order
DUNS #074303253
IRS W-9 form
DUNS #074303253
IRS W-9 form
Included In The Box:
- JBL PD6322/64 Passive/Tri-Amp Three-Way Full-Range Loudspeaker (Black)
- Limited 5-Year Warranty on Components
- Limited 2-Year Warranty on Enclosure
JBL PD6322/64-H Passive/Tri-Amp Three-Way Full-Range Loudspeaker (B...
$5,850.00
Unit price
/
Unavailable
- Pattern Control and Off-Axis Response
- Low-frequency extension to 40 Hz up to 17 kHz
- Consistent coverage pattern of 60x40 degrees
The JBL Professional PD6322/64 is a versatile and high-output three-way full-range loudspeaker designed to provide exceptional audio performance in a wide range of professional installations. With its advanced driver configuration, extended frequency response, and precise pattern control, this speaker is well-suited for demanding applications such as performing arts facilities, auditoriums, houses of worship, live music venues, nightclubs, sports facilities, and theme parks.
Key Specifications and Features:
-
Driver Configuration:
- 12" VGC LF (Low-Frequency) Transducers: The speaker features two 12" Vented Gap Cooled (VGC) low-frequency transducers with 4" voice coils. This configuration ensures high output capability and extends the low-frequency response down to 40 Hz.
- 8" CMCD (Cone Midrange Compression Driver): The CMCD-82H 8" cone midrange compression driver is equipped with a 3" voice coil and a driver/phasing plug assembly. This design offers high output, low distortion, and extended bandwidth for clear and intelligible midrange frequencies.
- 1.5" Exit Compression HF (High-Frequency) Driver: The 2432H neodymium HF driver with a 1.5" exit and a 3" voice coil provides accurate and intelligible high-frequency projection.
- Coverage Pattern: The two PT Progressive Transition waveguides provide a consistent coverage pattern of 60x40 degrees, allowing for controlled dispersion of audio across a wide area. The waveguides are rotatable for flexible cabinet orientation.
- Frequency Range: The PD6322/64 covers a frequency range from low-frequency extension to 40 Hz up to 17 kHz, ensuring comprehensive audio reproduction.
- Operational Flexibility: The speaker can be easily switched between tri-amp or bi-amp (passive mid-high) cabinet configurations, offering operational flexibility based on specific audio setups.
- Pattern Control and Off-Axis Response: The large Progressive Transition (PT) waveguides contribute to controlled pattern control, low distortion at high SPL levels, and a smooth frequency response. The well-controlled off-axis response enhances the arrayability of the speaker.
- Dimensions and Weight: The dimensions of the speaker are 991 x 673 x 897 mm (39 x 26.5 x 35.3 inches), and it weighs approximately 87.3 kg (192 lbs).
- Color Options: The standard color of the speaker is black, and it is also available in white.
In summary, the JBL Professional PD6322/64 is a powerful and adaptable three-way full-range loudspeaker that delivers high-quality audio performance with extended low-frequency response, intelligible midrange, and clear high-frequency projection. Its versatility, precise pattern control, and operational flexibility make it an excellent choice for various professional audio installations where outstanding sound quality and durability are essential.
-
