SKU: PD632243WH  |  UPC: 691991014710

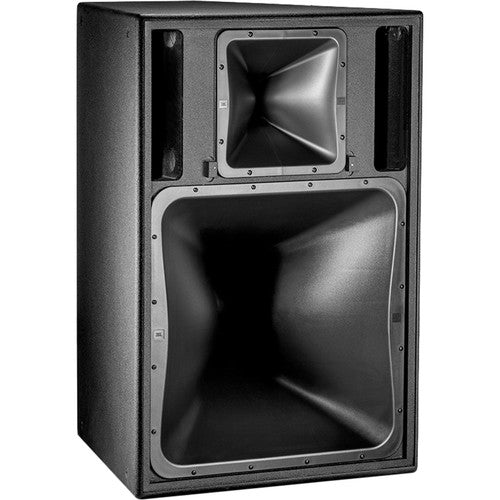

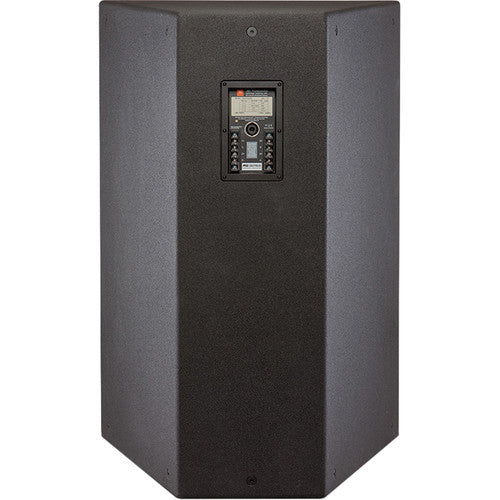

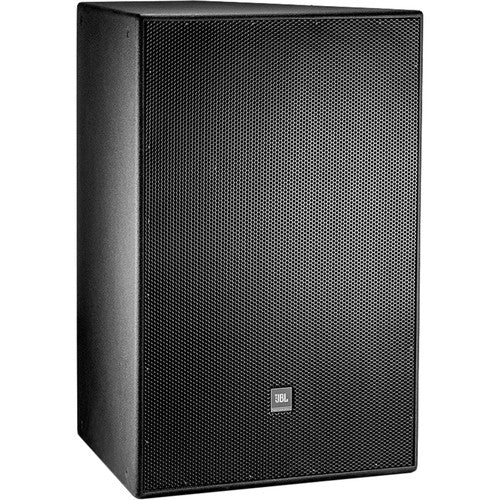

JBL PD6322/43-WH Passive/Tri-Amp Three-Way Full-Range Loudspeaker (Black)

$7,890.00
Free Shipping At Checkout!

CYBER WEEK Extended additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • Tri-Amp and Bi-Amp Capabilities
  • Sophisticated Crossover Network
  • Neodymium HF Driver

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • JBL PD6322/43 Passive/Tri-Amp Three-Way Full-Range Loudspeaker (Black)
  • Limited 2-Year Manufacturer Warranty (Enclosure)
  • Limited 5-Year Manufacturer Warranty (Components)


  • Tri-Amp and Bi-Amp Capabilities

  • Sophisticated Crossover Network

  • Neodymium HF Driver


The black JBL Professional PD6322/43 Passive/Tri-Amp Three-Way Full-Range Loudspeaker is a versatile and high-performance audio solution tailored for professional installations demanding exceptional sound quality. With its capacity to deliver precise high-frequency projection, extended low-frequency response, and minimal distortion even at high drive levels, this loudspeaker proves ideal for various settings, including performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, nightclubs, sports facilities, and theme parks.

Key Features:

  1. Advanced Driver Configuration: The PD6322/43 features a comprehensive setup consisting of two JBL 2206H 12" Vented Gap Cooled (VGC) low-frequency transducers with 4" voice coils, a CMCD-82H 8" cone midrange compression driver equipped with a 3" voice coil, and a 2432H 1.5" exit compression driver with a 3" voice coil. This combination enables the loudspeaker to cover a broad frequency spectrum while maintaining high-quality audio reproduction.

  2. Enhanced Low-Frequency Extension: Utilizing two high-power 12" transducers in a compact slot-loaded configuration, the PD6322/43 achieves extended low-frequency response down to 40 Hz. This design contributes to robust bass delivery and an immersive audio experience.

  3. High-Power Cone Midrange Compression Driver (CMCD): The CMCD-82H midrange compression driver features a driver/phasing plug assembly that offers high sensitivity and continuous SPL capability. This arrangement ensures reduced distortion, extended bandwidth, and improved phase coherence for superior midrange audio reproduction.

  4. Neodymium HF Driver: Equipped with a large-format neodymium high-frequency driver, the loudspeaker provides clear and intelligible high-frequency projection, offering detailed and precise sound reproduction.

  5. Progressive Transition (PT) Waveguides: Featuring large PT waveguides, the loudspeaker guarantees consistent pattern control across the listening area. These waveguides minimize distortion at high sound pressure levels and contribute to a smooth frequency response.

  6. Flexible Orientation: The PD6322/43 includes rotatable mid- and high-frequency waveguides, allowing the loudspeaker to be deployed in either horizontal or vertical orientations, according to the installation requirements.

  7. Tri-Amp and Bi-Amp Capabilities: With the ability to operate as either a tri-amp or bi-amp (passive mid-high) cabinet, the loudspeaker provides versatility in its operational modes, offering the flexibility to adapt to various audio setups.

  8. Sophisticated Crossover Network: The speaker employs a sophisticated steep-slope passive mid/high crossover network. This network ensures seamless frequency separation, contributing to the overall clarity and precision of the audio output.


In summary, the JBL Professional PD6322/43 Passive/Tri-Amp Three-Way Full-Range Loudspeaker in black is designed to excel in demanding professional audio installations, providing exceptional sound quality and adaptability. With its comprehensive driver arrangement, advanced waveguides, and versatile operational modes, it is well-suited to deliver impressive audio performance across a range of challenging environments.
