Product Summary


  • Large PT Progressive Transition waveguides

  • Rotatable waveguide

  • Horn-loaded low-frequency driver









Introducing PD564: Elevate Your Sound Precision

Experience audio precision like never before with PD564, a precision directivity loudspeaker that stands at the forefront of cutting-edge design. Perfect for applications demanding remarkable output capabilities and impeccable pattern control, the PD564 redefines your auditory experience.

Unleash Sonic Excellence Step into a world of unparalleled sound with the PD564. Its horn-loaded low-frequency driver ensures every note resonates with power and clarity, setting the stage for an exceptional audio journey. Whether it's music or speeches, this powerhouse delivers optimal performance.

Seamless Pattern Mastery Powered by large PT Progressive Transition waveguides, the PD564 grants you mastery over sound patterns. Experience minimal distortion even at elevated SPL levels, alongside a remarkably smooth frequency response that captivates your senses.

Adapt to Your Space Flexibility meets perfection with the PD564's rotatable waveguide. Seamlessly switch between horizontal and vertical cabinet orientations to match your environment without compromising audio quality.

Crafted for Sonic Prowess Beneath its sleek exterior, the PD564 boasts a sophisticated steep-slope passive crossover network. With switchable bi-amp / passive crossover modes, you have ultimate control over your sound. Achieve tailor-made audio perfection that resonates with your vision.

A Symphony of Key Advantages

  • Horn-loaded low-frequency driver for precision and power

  • Large PT Progressive Transition waveguides for pattern control, low distortion, and a smooth frequency response

  • Rotatable waveguide for versatile cabinet orientation

  • Sophisticated steep-slope passive crossover network with switchable bi-amp / passive crossover modes


Your Audio Revolution Begins Elevate your sound experience with PD564. It's not just a loudspeaker; it's a gateway to precision. Whether you're seeking high-powered music projection or captivating speech delivery, PD564 sets new standards in precision directivity. Your audio revolution starts here.

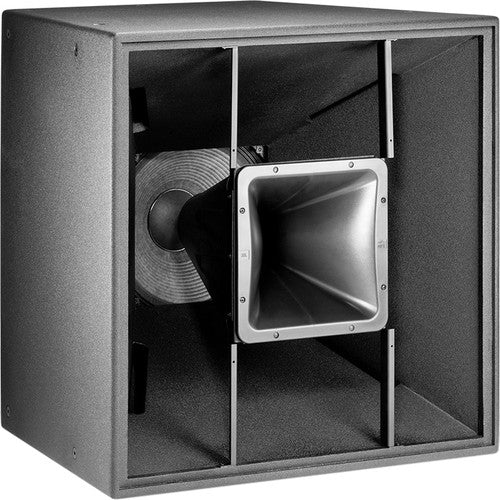

JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System (60° x 40°, Black)

SKU: PD564 | UPC: 691991014826
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$4,680.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System (60° x 40°, Black) $4,680.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Large PT Progressive Transition waveguides</li>\n <li>Rotatable waveguide</li>\n <li>Horn-loaded low-frequency driver</li>\n</ul>

Technical Details

Specifications

General
Product Type
Speaker
Enclosure Color
Black
Enclosure Material
Birch plywood
Design Features
DuraFlex finish, trapezoidal design
Speaker System
Speaker Type
2-way - passive
Nominal Output Power
300 Watt
Max (RMS) Output Power
500 Watt
Frequency Response
50 - 20000 Hz
Nominal Impedance
8 Ohm
Max Output Level (Max SPL)
139 dB
Sensitivity
105 dB
Crossover Frequency
1200Hz
Coverage
60° x 40°
Speaker System Details
Driver Details
Speaker: woofer driver - 15" - Horn Speaker: tweeter driver - 1.5" - neodymium - aluminum - Horn Loaded Compression Driver (HLCD)

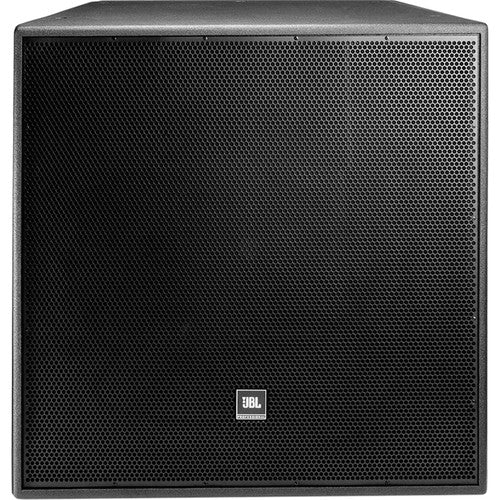

JBL PD564 15 Horn-Loaded Full-Range Loudspeaker System (60° x 40°, Black) f
