Product Summary


  • Dual 25 mm (1") Exit Compression Driver

  • Extremely Wide-Coverage Waveguide

  • Dual 205 mm (8 in) LF Transducers


Introducing the JBL Crossfired Waveguide Technology CWT128, an ingenious compact full-range 2-way system designed to redefine audio coverage. This system offers an unparalleled blend of wide-angle coverage, maximum bandwidth, and impressive SPL within a single, streamlined package. At the core of its design is the distinctive wide coverage pattern horn, meticulously crafted to deliver seamless coverage spanning an impressive 160-degrees horizontally. The CWT128's compact dimensions and small footprint are tailor-made for architecturally sensitive environments, consuming only about one-third of the space typically taken by two speakers placed side by side.

Highlighted Features:

  • Seamless Horizontal Coverage: With a full 160° of horizontal coverage, the CWT128 ensures consistent and uniform audio distribution across wide areas.

  • Architecturally Sensitive Environments: Designed with compact size and a small footprint, this system is the perfect fit for spaces that demand both impressive audio quality and minimal visual impact.

  • Dual 205 mm (8 in) LF Transducers: Equipped with dual 8-inch low-frequency transducers, the CWT128 delivers a powerful audio performance that fills the space with clarity.

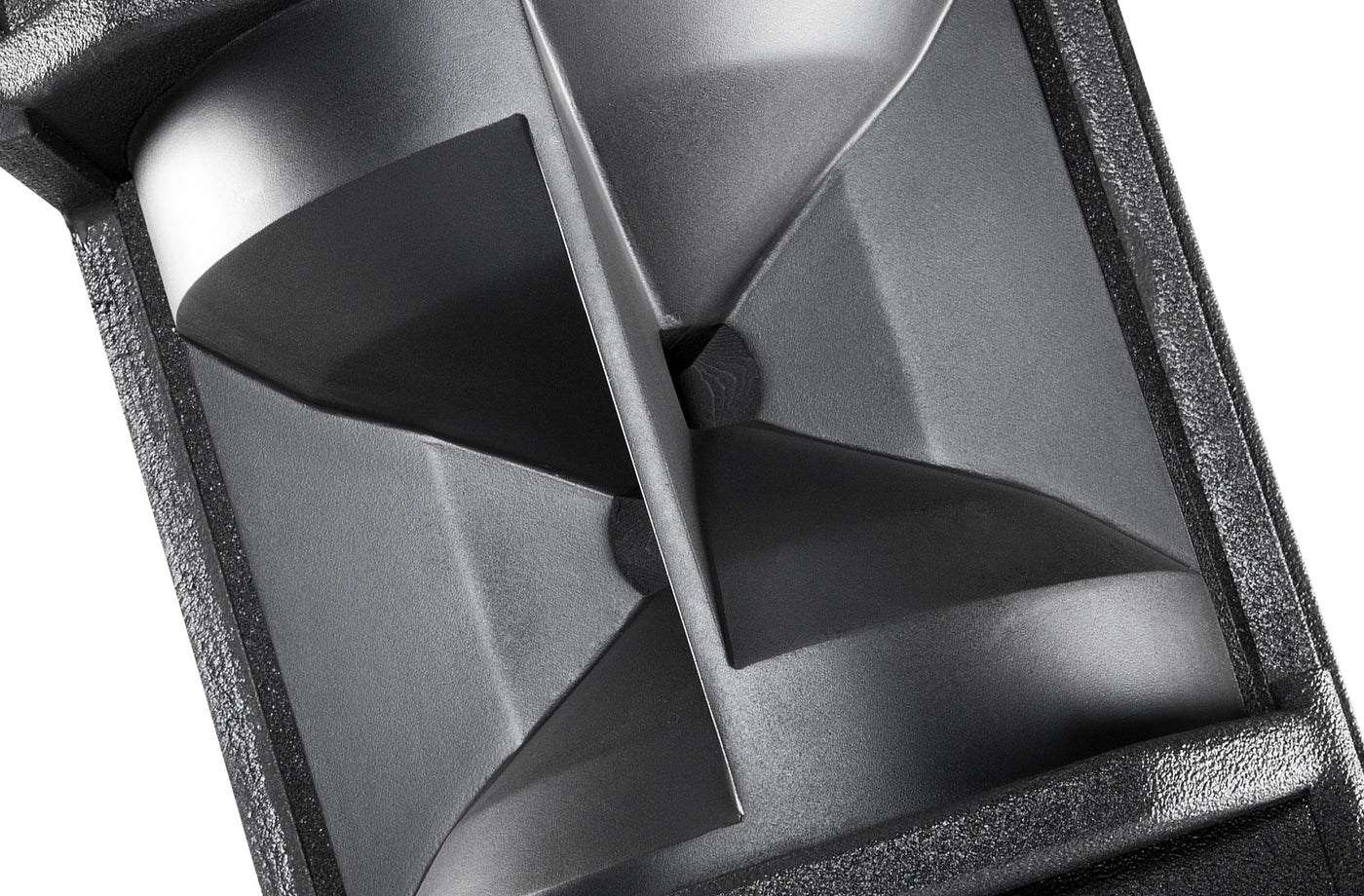

  • Extremely Wide-Coverage Waveguide: The 160° x 60° waveguide ensures that audio is projected precisely where it's needed, creating an immersive experience for the audience.

  • Dual 25 mm (1") Exit Compression Driver: The dual 25 mm exit compression driver with a 38 mm diaphragm guarantees crisp and clear high-frequency delivery.

  • Installation Flexibility: Installation is made easy with 4 M10 attachment points built across the top and sides, while 4 M8 points on the back panel accept OmniMount® wall mounting brackets.

  • Weather Resistance Options: WRC and WRX versions, providing weather resistance, are available upon request, making the CWT128 adaptable to various environments.

  • Elegance in White: Available in an elegant white finish (WH), the CWT128 seamlessly blends into a variety of settings.


Applications:

  • Transportation Facilities

  • Cinema

  • Sports Facilities

  • Theme Parks


Elevate your auditory experience with the JBL Crossfired Waveguide Technology CWT128, a testament to JBL's commitment to exceptional sound quality and intelligent design. Whether you're in a bustling transportation hub, a cinematic space, a sports arena, or a vibrant theme park, the CWT128 guarantees an immersive audio experience that resonates with every listener.

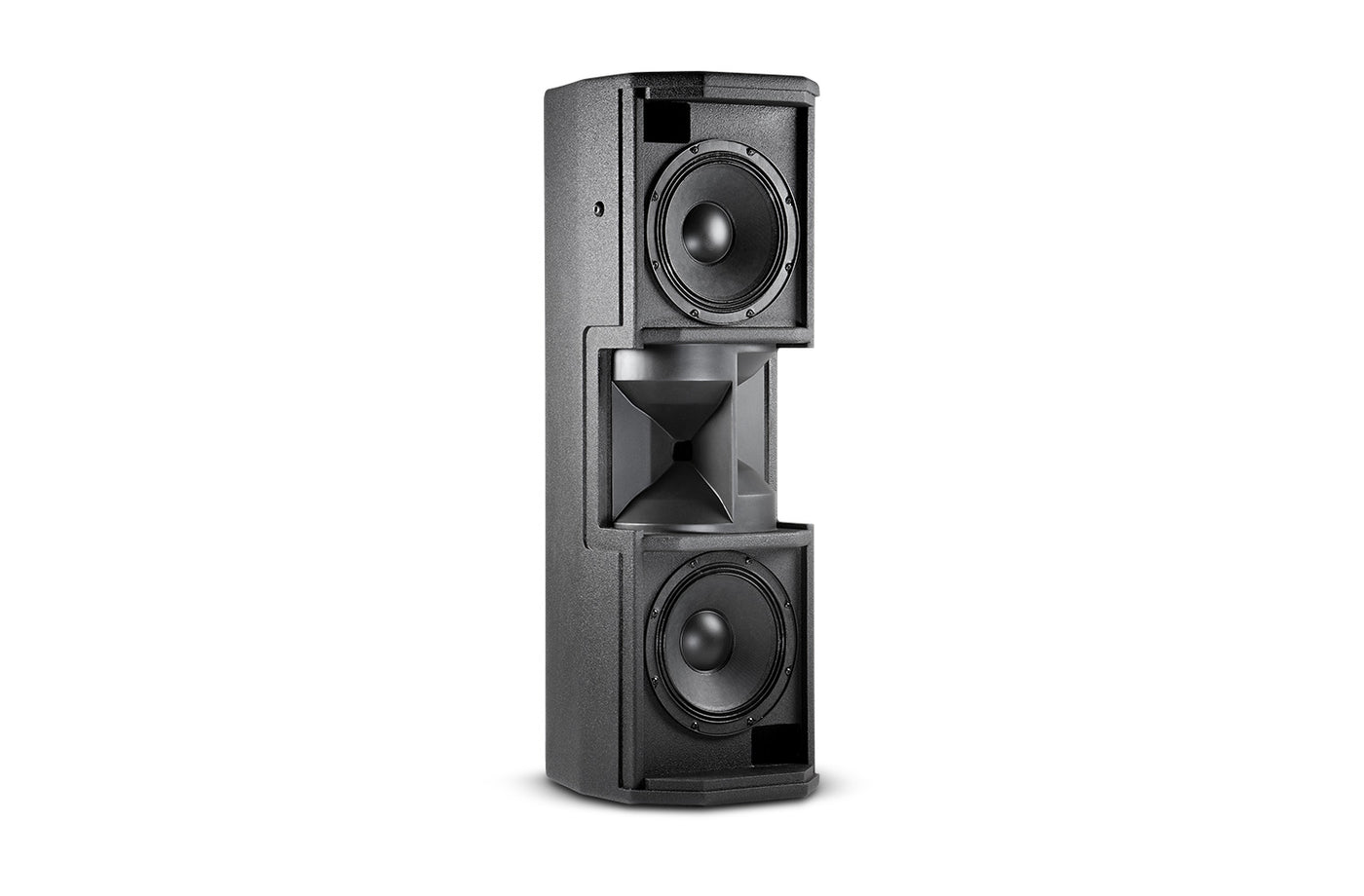

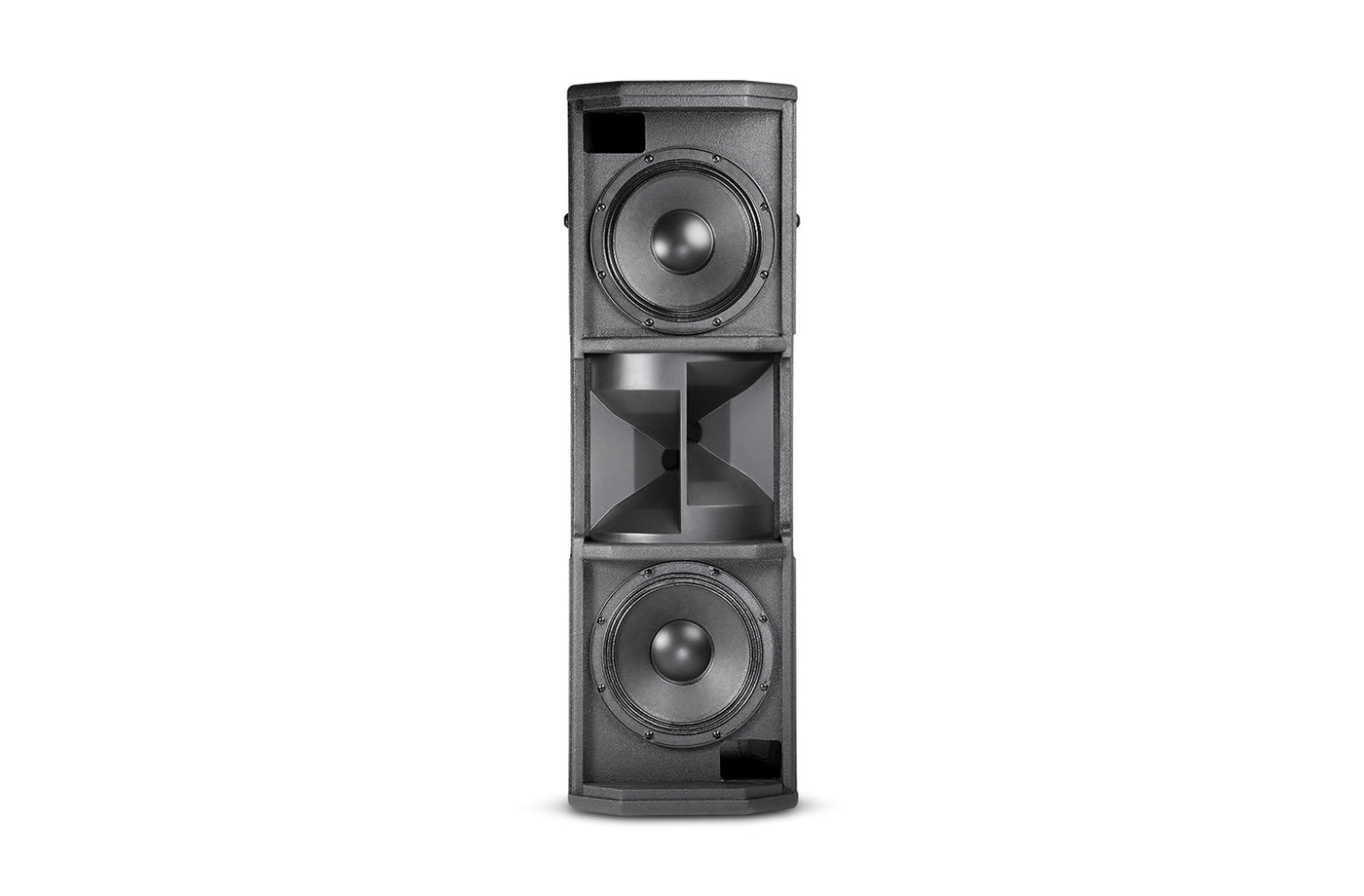

JBL CWT128-WRC Dual 8" 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology

SKU: CWT128WRC | UPC: 691991013867
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL CWT128-WRC Dual 8" 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Dual 25 mm (1") Exit Compression Driver</li>\n <li>Extremely Wide-Coverage Waveguide</li>\n <li>Dual 205 mm (8 in) LF Transducers</li>\n</ul>

Technical Details

Specifications

General
System Format Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System
Frequency Range (-10dB) 71 Hz - 20 kHz
Frequency Response (±3 dB) 96 Hz - 19 kHz
Coverage Pattern 160° x 60°
Maximum SPL (1m) 129 dB
System Nominal Impedance 8 Ohms
Long-Term System Power Rating 450W (1800W Peak)
System Power Rating 850W/1700W/3400W Continuous/Program/Peak
Crossover 1.5 kHz
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
HF Driver 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
High-Frequency Waveguide Crossfired Waveguide
Finish Black DuraFlex™ finish. White (-WH) available upon request
Dimensions (w x h x d) 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
Net Weight (each) 18.6 kg (40.9 lb)
Crossover Modes Passive
System Sensitivity (1w @ 1m) 94 dB SPL
Nominal LF Driver Impedance 8 Ohms
Transformer Taps 70V: 110W, 55W, *28W 100V: 110W & 55W
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10 point on each side panel.) 4 x M8 rear for MultiMount® MM-120-BT
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
