Key Features
- <ul>\n <li>Coaxial design with Kevlar™ woofer</li>\n <li>High power: 250W (1000W peak)</li>\n <li>Adjustable hanging hardware included</li>\n <li>Stylish black or white options</li>\n <li>UL listed, 8-ohm and 70V/100V</li>\n</ul>
$556.00
Technical Details
| Active or Passive |
Passive |
| Number of Included Speakers |
1 |
| Speaker Configuration |
2-Way |
| Power Handling |
150 W
250 W
For 2 Hours:
500 W Program
1000 W Peak
For 100 Hours:
600 W Peak |
| Constant Voltage / Transformer Taps |
70 V:
68 / 34 / 17 / 8.5 W or 8 Ohms Bypass
100 V:
68 / 34 / 17 W or 8 Ohms Bypass |
| Impedance |
8 Ohms |
| Transformer Wattage |
68 W |
| Enclosure Type |
Sealed |
| HF Driver |
1 x 1" / 2.5 cm Titanium Dome Compression Driver |
| LF Driver |
1 x 8" / 20.3 cm Kevlar Woofer |
| LF Voice Coil |
2" / 5.1 cm |
| Magnet |
LF:
Ferrite |
| Frequency Range |
72 Hz to 16 kHz ±3 dB |
| Frequency Response |
52 Hz to 17 kHz -10 dB |
| Maximum SPL |
114 dB (Continuous)
120 dB (Peak) |
| Sensitivity |
90 dB (Average) |
| Coverage Angle |
110° (Conical) |
| Directivity |
7.8 (Directivity/Q Factor)
8.9 dB (Directivity Index) |
| Recommended High-Pass Filter |
60 Hz, 24 dB/Octave |
| Maximum Input Voltage |
41.4 V RMS |
| Transformer Insertion Loss |
0.5 dB at 8.5 W
0.5 dB at 17 W
0.6 dB at 34 W
0.7 dB at 68 W |
| I/O |
1 x Block 2-Pin Speaker Input (Locking, Removable)
1 x Block 2-Pin Speaker Thru (Locking, Removable) |
| Maximum Wire Gauge |
12 AWG |
| Certifications |
UL1480A, UL1598, UL2239, CSA C22.2, IEC62368-1, CE, RoHS
*as per Manufacturer |
| Environmental Protection |
Advertised as Humidity Resistant/Moisture Resistant/Outdoor Use/Splash-Proof/Water Resistant/Salt Resistant
*Manufacturer Testing: IP44 / MIL-STD-810 |
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comOnce we have all the information requested above, an account and order will be created.
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.

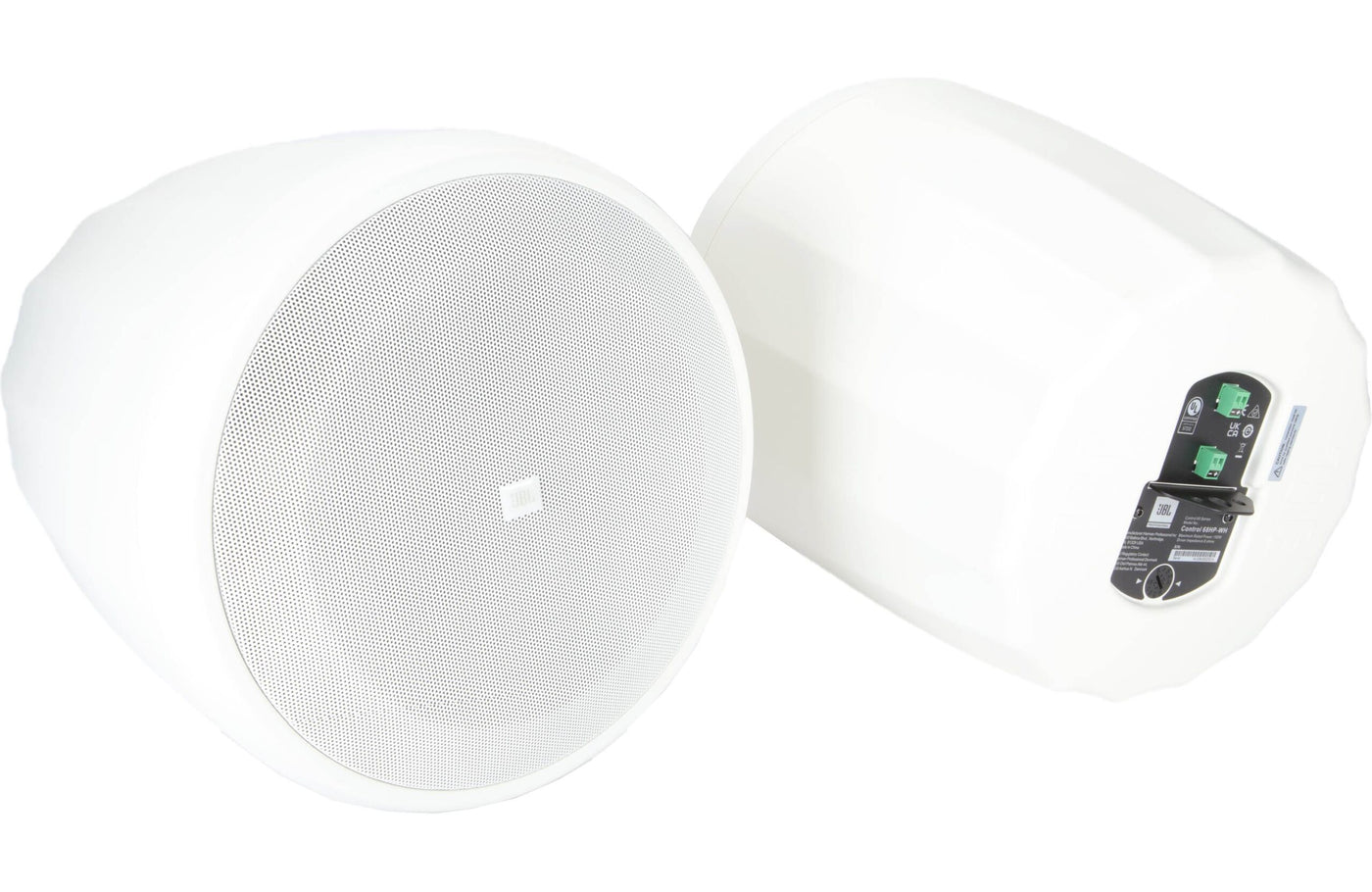

JBL Control C68HP-WH High-Power Pendant Loudspeaker (White)
