Product Summary


  • Seamless Bi-Amp/Passive Switching

  • Cutting-edge 2408H-1 High-Frequency Compression

  • Innovative 265H-1 Differential Drive


Introducing the JBL Professional AM5215/66 Passive 2-Way 15" Loudspeaker System in Elegant White: Your Medium-Power Audio Solution for Diverse Professional Environments

Unleash the power of versatility with the JBL Professional AM5215/66 Passive 2-Way 15" Loudspeaker System in its pristine white finish. Designed to excel in an array of professional settings, this medium-power speaker proves to be an exceptional addition to performing arts facilities, theatrical soundscapes, auditoriums, houses of worship, live music venues, nightclubs, sports complexes, and even immersive theme parks.

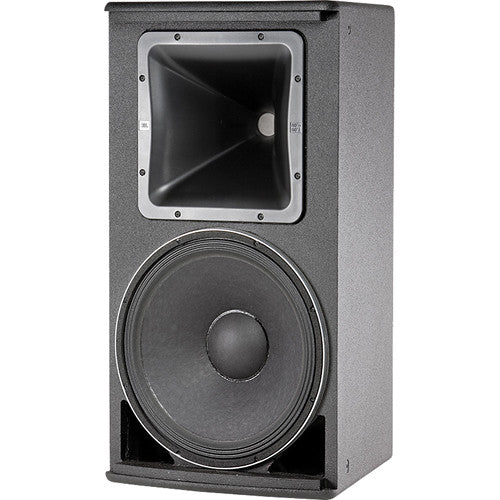

The heart of the AM5215/66 lies in its meticulous construction. Driven by the groundbreaking JBL Differential Drive technology, it features a dual-voice coil and dual-magnetic gap 265H-1 15" low-frequency driver, working in seamless harmony with the 2408H-1 high-frequency 1.5" exit compression driver equipped with a 1.5" voice coil.

A highlight of this system is the expansive PT Progressive Transition waveguide, elegantly integrated to provide an all-encompassing 60 x 60° coverage. This ensures that your audience experiences an enveloping sonic journey, no matter where they are situated.

The AM5215/66 doesn't just deliver exceptional sound; it also showcases intelligent design features. Its high-slope passive networks have been carefully engineered to minimize any band overlap, while the finely-tuned off-axis response enhances your creative possibilities for configuring speaker arrays. The beauty of this system also lies in its adaptability. With a simple switch, the AM5215/66 transforms effortlessly from a bi-amped powerhouse to a passive cabinet, adapting seamlessly to the demands of your audio landscape.

Key Features at a Glance:

  • Comprehensive 60 x 60° Coverage for Immersive Sound Dispersion

  • Innovative 265H-1 Differential Drive Low-Frequency Driver for Rich Bass

  • Cutting-edge 2408H-1 High-Frequency Compression Driver for Crisp Detail

  • Expansive Progressive Transition (PT) Waveguide for Pristine Pattern Control

  • Seamless Bi-Amp/Passive Switching for Enhanced Flexibility


Step into a new dimension of audio excellence with the JBL Professional AM5215/66. Whether you're aiming to captivate audiences with breathtaking performances or seeking to create unforgettable audio atmospheres, this system is your steadfast partner, ensuring that every sound is delivered with precision, power, and clarity.

JBL AM5215/66-WRX Passive/Biamp 2-Way 15" Loudspeaker System (White)

SKU: AM521566WRX | UPC: 691991011191
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AM5215/66-WRX Passive/Biamp 2-Way 15" Loudspeaker System (White) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Seamless Bi-Amp/Passive Switching</li>\n <li>Cutting-edge 2408H-1 High-Frequency Compression</li>\n <li>Innovative 265H-1 Differential Drive</li>\n</ul>

Technical Details

Specifications

General
Enclosure Type
Loudspeaker
Total Power Capacity
LF: 500 W 2000 W Peak HF: 40 W 160 W Peak Passive: 350 W 1400 W Peak
System Impedance
LF: 8 Ohms (Nominal) HF: 8 Ohms (Nominal)
Drivers
HF Driver
1 x 1.5" / 3.81 cm Compression Driver
HF Voice Coil
1.5" / 38.1 mm
LF Driver
15" / 381 mm Woofer
LF Voice Coil
Dual 2" / 50.8 mm
Performance
Frequency Range
35 Hz to 20 kHz -10 dB
Frequency Response
41 Hz to 18 kHz ±3 dB
Maximum SPL
125 dB (LF, Continuous) 131 dB (LF, Peak) 130 dB (HF, Continuous) 136 dB (HF, Peak)
Coverage Angle
60° H x 60° V (Horn)
Directivity
14.5 dB (Directivity/Q Factor) 11.6 dB (Directivity Index)
Speaker Sensitivity
Passive: 98 dB SPL LF: 99 dB SPL HF: 114 dB SPL
Connectivity
Audio I/O
1 x speakON NL4 Input 1 x Barrier Strip Input
Signal Processing
Crossover
2 kHz (Passive/Bi-Amp)
Filters
None
Physical
Mounting
15 x M10 Bracket Point (Bottom, Each Side, Rear, Top)
IP Rating
IPX3
Construction Material
Plywood, Stainless Steel Grille
Certifications
CE *as per Manufacturer
Dimensions
30.7 x 16.5 x 19.8" / 781 x 420 x 503 mm
Weight
55.1 lb / 25 kg
