Product Summary


  • Weather-Resistant Speaker

  • Rotatable waveguide enabling easy adaptation

  • Delivers an unparalleled experience.


Presenting the 2-Way Full-Range Speaker – a dynamic audio solution that combines versatility and performance in one compact package. With a focus on delivering a well-rounded audio experience, this speaker offers a balanced blend of features to meet your diverse needs.

Designed with a thoughtful approach to weather resistance, this speaker stands as a reliable choice for moderate weather conditions. Its robust construction ensures that your sound remains consistent and reliable, even in challenging environments.

Experience audio like never before with its wide 120° x 60° coverage pattern. This strategic design not only enhances the audio dispersion but also provides remarkable pattern control, resulting in pristine sound quality with minimal distortion.

Whether you're seeking an audio solution for an intimate gathering or a lively event, this 2-Way Full-Range Speaker is equipped to impress. Its exceptional coverage and precise pattern control make it a versatile choice for a range of applications, from small venues to open spaces.

Elevate your audio expectations and redefine what's possible with the power of the 2-Way Full-Range Speaker – where performance, weather resistance, and pattern control converge to create an unparalleled sound experience.

Introducing the JBL AM5212/26-WRC Weather-Resistant Speaker – an embodiment of performance and versatility, designed to excel in diverse audio environments. This lightweight 2-way medium-power loudspeaker system is meticulously engineered to deliver an exceptional sound experience that leaves a lasting impression.

Harnessing the prowess of JBL's differential drive dual voice coil and dual magnetic gap 262H-1 12" low-frequency driver, as well as the high-frequency finesse of the 2408H-1 1.5" exit compression driver with a 1.5" voice coil, this speaker system promises a harmonious blend of power and precision.

Experience sound immersion like never before with its expansive 120° x 60° coverage pattern, thoughtfully crafted through the incorporation of the expansive PT-H126HF-1 Progressive Transition waveguide. This remarkable waveguide, which can seamlessly rotate, provides you with the freedom to align the loudspeaker system in either vertical or horizontal orientation, catering to your spatial demands.

The meticulously constructed trapezoid birch enclosure, fortified with a resilient DuraFlex finish, maximizes low-frequency performance, ensuring that every note resonates with clarity and depth. As a testament to its versatility, the AM5212/26-WRC belongs to JBL's esteemed AE Series, a family of loudspeakers tailored to elevate a myriad of environments.

Notably designed for moderate weather resistance, this speaker stands as a steadfast audio companion in various conditions. With its rotatable waveguide enabling easy adaptation between vertical and horizontal orientations, your audio setup possibilities are expanded.

Embrace the exceptional with the JBL AM5212/26-WRC Weather-Resistant Speaker – where innovation meets adaptability to redefine your auditory encounters. Whether it's enriching auditorium acoustics, energizing live clubs, or elevating the sonic atmosphere of worship spaces and themed entertainment venues, this speaker delivers an unparalleled experience.

JBL AM5212/26-WRC Weather-Resistant 12" Speaker (Black)

SKU: AM521226WRC | UPC: 691991010996
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AM5212/26-WRC Weather-Resistant 12" Speaker (Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Weather-Resistant Speaker</li>\n <li>Rotatable waveguide enabling easy adaptation</li>\n <li>Delivers an unparalleled experience.</li>\n</ul>

Technical Details

Specifications

General
Active or Passive
Passive
Low Frequency Driver
1 x JBL 262H-1 12" / 305 mm Driver with 2" / 50.8 mm Dual Voice Coil Nominal Impedance: 8 Ohms Sensitivity: 97 dB SPL (1W @ 1m, within Operational Band)
High Frequency Driver
JBL 2408H-1, 1.5" / 38 mm Exit Compression Driver, 1.5" / 38 mm Voice Coil Nominal Impedance: 8 Ohms Sensitivity: 113 dB SPL (1W @ 1m)
Frequency Range
37 Hz to 20 kHz (-10 dB)
Frequency Response ± 3dB
43 Hz to 18 kHz
Coverage Pattern
120° x 60°
Coverage Modes
Bi-Amp / Passive Switchable
Directivity Factor
8.2 dB (Q)
Directivity Index
9.1 dB
Crossover Point
1.5 kHz (Passive)
Transducer Power Rating
400 W (1600 W Peak), 2 hr 300 W (1200 W Peak), 100 hr HF: 40 W (160 W Peak), 2 hr
Long-Term System Power Rating
300 W (1200 W Peak) 100 Hr (IEC)
Maximum SPL
Bi-Amp Mode: LF: 122 dB-SPL Cont Avg (128 dB Peak) HF: 129 dB-SPL cont avg (135 dB Peak)
System Sensitivity
Passive Mode: 115 dB SPL (1W @ 1m)
Horn Waveguide
PT-H126HF-1
Enclosure Material
Trapezoidal with 15 Degree Side Angles, 5/8" / 16 mm Exterior Grade 11-Ply Birch Plywood
Suspension Attachment
15 Points (4 Top, 4 Bottom, 2 each Side, 3 Rear), M10 Threaded Hardware
Finish
Black DuraFlex Finish
Grille
Powder Coated 14 Gauge Perforated Steel, with Acoustically Transparent Black Foam Backing
Environmental Specifcations
Mil-Std 810; IP-x3 per IEC529
Dimensions
28.06 x 14.6 x 18.1" / 713 x 371 x 458 mm
Weight
45 lb / 20.2 kg

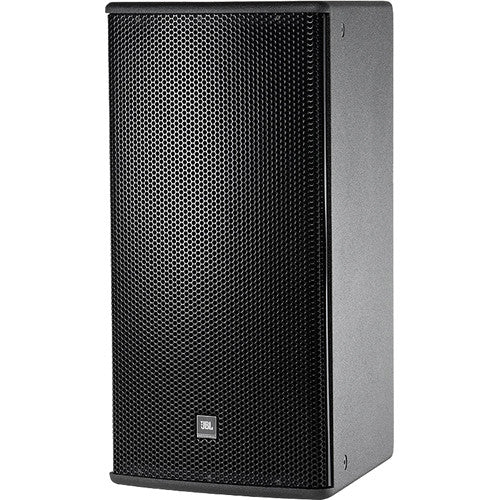

JBL AM521226-WRC Weather-Resistant Speaker (Black)
