Product Summary


  • 1 x 15" 2265H Differential Drive

  • Ample vent area for exceptional output

  • Compatibility with various AE Series

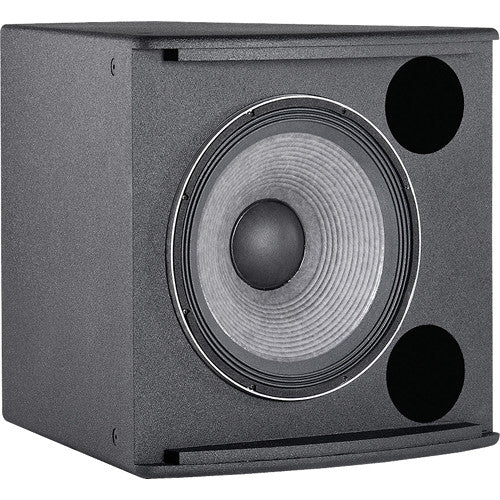

Introducing the black AL7115 Single 15" Low-Frequency Speaker Module, a remarkable creation from JBL. Boasting the patented JBL 2265 HPL Differential Drive 15" transducer, this module incorporates a cutting-edge Differential Drive with a dual 3" voice coil and dual magnetic gap technology. With a power rating of 1000 watts, this front-loaded, vented configuration delivers superior audio performance. The trapezoidal cabinet features M10 threaded suspension points, facilitating array flying and mounting. Additionally, there's an option for pre-engineered array bracketry.

A key player in JBL's AE Application Engineered Series, the AL7115 adapts seamlessly to a wide range of applications. Designed to complement the AM7200 models, it's particularly effective in low-profile array setups where a comprehensive three-way system is desired. By combining the AL7115 15" low-frequency speaker module with the PAF-3K planar array frame kit (available separately), you can create a remarkable low-profile, three-wide array system nestled between two AM7200 mid-high loudspeakers.

Highlighted Features:

  • 1 x 15" 2265H Differential Drive Low-Frequency Driver

  • Ample vent area for exceptional output with minimal distortion

  • Compatibility with various AE Series mid-high frequency and compact 2-way models

  • Versatile applications, including:

    • Performing arts facilities

    • Theatrical sound design

    • Auditoriums

    • Houses of worship

    • Live clubs

    • Dance-clubs/discotheques

    • Sports facilities

    • Themed entertainment venues




The AL7115 Single 15" Low-Frequency Speaker Module brings a new level of excellence to sound systems, promising unparalleled performance and adaptability across diverse venues and applications.

JBL AL7115-WRC Single 15" Low-Frequency Speaker Module (Black)

SKU: AL7115WRC | UPC: 691991010934
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AL7115-WRC Single 15" Low-Frequency Speaker Module (Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>1 x 15" 2265H Differential Drive</li>\n <li>Ample vent area for exceptional output</li>\n <li>Compatibility with various AE Series</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 40 Hz – 4.2 kHz
Frequency Response (±3 dB) 47 Hz - 3.0 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) 50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity (1w @ 1m) 50 Hz – 125 Hz: 97 dB125 Hz – 800 Hz: 97 dB
Nominal Impedance 8 ohms
LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex™ finish.White available upon request.

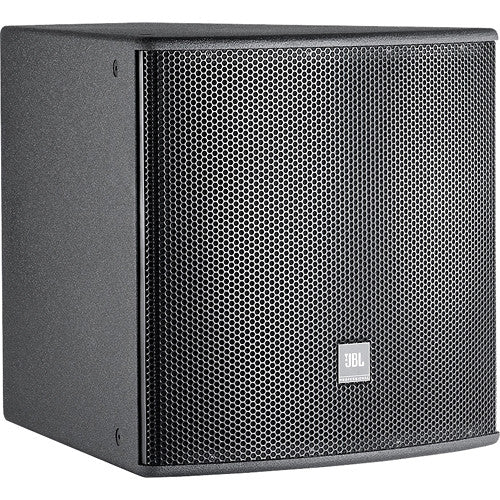

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

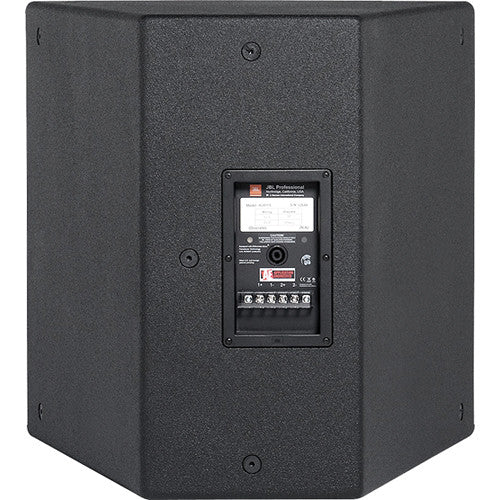

Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation) 548 x 561 x 657 mm(21.6 x 22.1 x 25.9 in)
Net Weight (each) 25.9 kg (57 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
Nominal LF Driver Impedance 8 ohms
