Product Summary


  • Dual 8" LF transducers with SFG

  • 90° x 50° Progressive Transition

  • Dual Neutrik NL4 connectors


Introducing the AC28/95: a compact full-range loudspeaker system that redefines audio excellence while maintaining a visually unobtrusive design. Purposefully crafted to deliver an extraordinary blend of maximum bandwidth and sound pressure levels, this system offers a seamless integration that thrives even when situated near walls and ceilings. From under balcony to column and wall mounting, the AC28/95 excels in diverse installations.

Audiophile Precision: Equipped with a newly designed 90° x 50° rotatable PT™ (Progressive Transition) waveguide housing a 1" exit compression driver, the AC28/95 ensures a balanced and even coverage across the intended listening area. This synergy results in a seamlessly smooth power response, achieving an authentically natural sonic profile.

Duality of LF Excellence: Powered by dual 8" Symmetrical Field Geometry (SFG™) LF Transducers, each featuring a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece, the AC28/95 establishes performance benchmarks by minimizing voice coil inductance and distortion. Leveraging Filtered Array Technology (FAT™), it independently controls the dual woofers for impeccable magnitude and phase response, yielding a power response that's both polished and consistent.

Crossover Flexibility: Enhancing versatility and audio precision, JBL engineers have developed a user-selectable crossover network that guarantees precise high-frequency coverage pattern whether the loudspeaker is vertically or horizontally oriented with the rotated horn.

Installation Adaptability: The rugged multiply hardwood enclosure is designed to excel both in vertical and horizontal orientations. Mounting points are thoughtfully placed to accommodate an optional U-bracket and OmniMount® type bracket. Furthermore, attachment points located at the enclosure's bottom cater to stand mount accessory needs.

Durability and Elegance: Wrapped in JBL's textured DuraFlex™ finish, the rugged plywood enclosure exemplifies durability. The enclosure's integrity is further reinforced by a heavy-duty powder-coated steel grille with foam backing.

Key Features:

  • Compact Marvel: Discover the perfect balance between form and function in a compact design that doesn't compromise on power.

  • LF Symmetry: Dual 8" LF transducers with SFG™ technology provide a rich and symmetrical low-frequency response.

  • Precise Sound Projection: The 90° x 50° Progressive Transition™ Field Rotatable Waveguide, partnered with the 1" exit compression driver, promises precise and immersive audio coverage.

  • Diverse Connectivity: Dual Neutrik NL4 connectors, in combination with screw terminals, offer seamless connectivity.

  • Ultimate Flexibility: Experience the freedom of choice with multiple attachment points, catering to various mounting preferences.


Prepare to elevate your auditory encounters with the AC28/95 loudspeaker system, an embodiment of engineering excellence and adaptability that sets new benchmarks for audio quality and installation versatility.

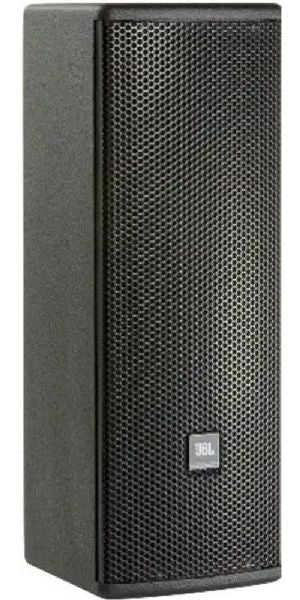

JBL AC28/95-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment (Black)

SKU: AC2895WRC | UPC: 691991029035
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AC28/95-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment (Black) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Dual 8" LF transducers with SFG</li>\n <li>90° x 50° Progressive Transition</li>\n <li>Dual Neutrik NL4 connectors</li>\n</ul>

Technical Details

Specifications

General
Configuration
Passive 2-Way
Total Power Capacity
375 W RMS 750 W Program 1500 W Peak
System Impedance
8 Ohms
Drivers
HF Driver
1 x 1" / 51 mm Dome Tweeter
LF Driver
2 x 8" / 203 mm Woofer
Performance
Frequency Response
47 Hz to 20 kHz
Connectivity
Audio I/O
2 x speakON NL4 Screw Terminal
Physical
Construction Material
Plywood
Dimensions
26.8 x 9.4 x 10" / 679.5 x 237.5 x 254 mm
Weight
40.9 lb / 18.6 kg
