Product Summary


  • 120° x 60° Progressive Transition

  • Dual Neutrik NL4 connectors

  • Rugged multiply hardwood enclosure


Introducing the AC28/26: a compact full-range loudspeaker system that redefines audio excellence while maintaining a visually unobtrusive design. Engineered to deliver outstanding bandwidth and sound pressure levels within a single unit, this system adapts harmoniously to various settings. Its enclosure design allows for installation in close proximity to walls and ceilings, making it an ideal choice for under balcony, column, or wall mounting.

Key Highlights:

  • Immersive Sound Dispersion: The high-frequency prowess of a 1" exit compression driver, integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide, ensures consistent coverage across the intended listening area. The result is a seamless power response, yielding natural and captivating sound projection.

  • LF Precision: Equipped with dual 8" Symmetrical Field Geometry (SFG™) LF Transducers, each boasting a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece, the AC28/26 sets a new standard in performance. By minimizing voice coil inductance and distortion through Filtered Array Technology (FAT™), the system independently controls dual woofers for precise magnitude and phase response, culminating in a smoother power response and consistent coverage.

  • Adaptable Crossover: The AC28/26 takes versatility to the next level with its user-selectable crossover network. This network ensures high-frequency coverage accuracy whether the speaker is used vertically or horizontally, even when the horn is rotated.

  • Flexible Installation: The rugged multiply hardwood enclosure has been meticulously designed for both vertical and horizontal orientations. With mounting points for an optional U-bracket and OmniMount® type bracket, as well as attachment points on the enclosure's bottom for a stand mount accessory, installation becomes effortless.

  • Durability and Elegance: The rugged plywood enclosure boasts JBL's signature textured DuraFlex™ finish, while a heavy-duty powder-coated steel grille with foam backing ensures both durability and aesthetic elegance.


Features at a Glance:

  • Compact Versatility: A space-saving design that doesn't compromise on performance.

  • LF Excellence: Dual 8" LF transducers with SFG™ technology for exceptional low-frequency precision.

  • Precise Audio Projection: The 120° x 60° Progressive Transition™ Field Rotatable Waveguide, combined with the 1" exit compression driver, guarantees accurate and immersive sound coverage.

  • Flexible Connectivity: Dual Neutrik NL4 connectors, along with screw terminals, provide multiple connectivity options.


Unleash the potential of your audio experience with the AC28/26 loudspeaker system, a manifestation of engineering brilliance and adaptability that promises to redefine your auditory encounters.

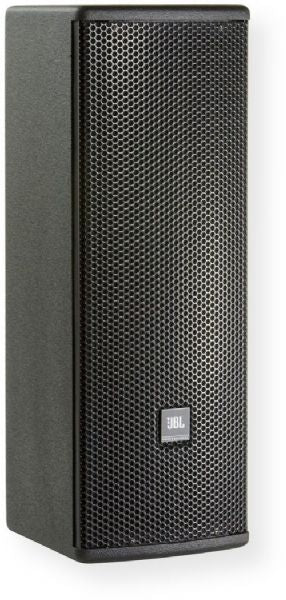

JBL AC28/26-WRX Compact 2-way 8" Loudspeaker with Extreme Weather Protection Treatment

SKU: AC2826WRX
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AC28/26-WRX Compact 2-way 8" Loudspeaker with Extreme Weather Protection Treatment Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>120° x 60° Progressive Transition</li>\n <li>Dual Neutrik NL4 connectors</li>\n <li>Rugged multiply hardwood enclosure</li>\n</ul>

Technical Details

Specifications

General
Configuration
Passive 2-Way
Total Power Capacity
375 W RMS 750 W Program 1500 W Peak
System Impedance
8 Ohms
Drivers
HF Driver
1 x 1" / 51 mm Dome Tweeter
LF Driver
2 x 8" / 203 mm Woofer
Performance
Frequency Response
47 Hz to 20 kHz
Connectivity
Audio I/O
2 x speakON NL4 Screw Terminal
Physical
Construction Material
Plywood
Dimensions
26.8 x 9.4 x 10" / 679.5 x 237.5 x 254 mm
Weight
40.9 lb / 18.6 kg
