Product Summary


  • Exceptional low-frequency precision

  • Audio quality in a compact form factor

  • Outstanding Audio Distribution


Introducing the AC18/95: a compact full-range loudspeaker system meticulously designed to deliver unrivaled bandwidth and sound pressure levels within a single, visually unobtrusive package. The thoughtfully engineered enclosure design ensures seamless installation in close proximity to walls and ceilings, making it an optimal choice for under balcony, column, or wall mounting.

Outstanding Audio Distribution: With a 1" exit compression driver seamlessly integrated into a newly designed 90° x 50° rotatable PT™ (Progressive Transition) waveguide, the AC18/95 guarantees consistent coverage across the intended listening area. This symbiosis creates a smooth power response, resulting in a profoundly natural and captivating audio experience.

Precision in LF Performance: Equipped with an 8" Symmetrical Field Geometry (SFG™) LF Transducer featuring a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece, the AC18/95 raises the bar in performance by reducing voice coil inductance and distortion.

Versatile Mounting: The rugged multi-ply hardwood enclosure has been meticulously designed to excel in both vertical and horizontal orientations. The integration of mounting points for an optional U-bracket and OmniMount® type bracket, along with attachment points on the enclosure's bottom for a stand mount accessory, ensures installation is both effortless and adaptable.

Durability and Elegance: The rugged plywood enclosure boasts JBL’s distinctive textured DuraFlex™ finish. Furthermore, a heavy-duty powder-coated steel grille with foam backing enhances durability while maintaining an elegant appearance.

Key Features:

  • Compact Versatility: Experience superior audio quality in a compact form factor that excels across various applications.

  • LF Excellence: Enjoy exceptional low-frequency precision courtesy of the 8" LF transducer with SFG™ technology.

  • Immersive Audio Projection: The 90° x 50° Progressive Transition™ Field Rotatable Waveguide, coupled with the 1" exit compression driver, guarantees precise and immersive audio coverage.

  • Flexible Connectivity: Dual Neutrik NL4 connectors, complemented by screw terminals, offer versatile connectivity options.


Unleash the potential of your auditory experience with the AC18/95 loudspeaker system. A harmonious blend of engineering brilliance and adaptability, it promises to redefine the way you perceive sound.

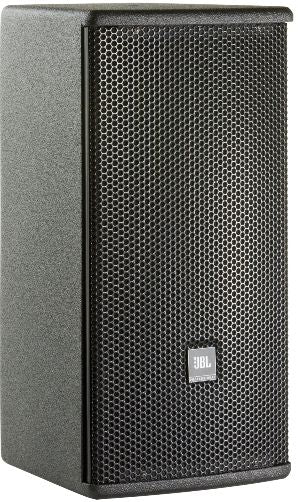

JBL AC18/95-WRX Compact 2-way 8" Loudspeaker with Extreme Weather Protection Treatment

SKU: AC1895WRX
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AC18/95-WRX Compact 2-way 8" Loudspeaker with Extreme Weather Protection Treatment Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Exceptional low-frequency precision</li>\n <li>Audio quality in a compact form factor</li>\n <li>Outstanding Audio Distribution</li>\n</ul>

Technical Details

Specifications

General
Configuration
Passive 2-Way
Total Power Capacity
250 W RMS 500 W Program 1000 W Peak
System Impedance
8 Ohms
Drivers
HF Driver
1 x 1" / 51 mm Dome Tweeter
LF Driver
1 x 8" / 20.3 cm Woofer
Performance
Frequency Response
47 Hz to 20 kHz
Connectivity
Audio I/O
2 x speakON NL4 Screw Terminal
Physical
Construction Material
Plywood
Dimensions
18.5 x 9.4 x 10" / 470 x 237.5 x 254 mm
Weight
28.2 lb / 12.8 kg
