Product Summary


  • 90° x 50° Progressive Transition

  • Dual Neutrik NL4 connectors

  • Exceptional Audio Dispersion


Presenting the AC18/95: a compact full-range loudspeaker system meticulously designed to deliver an exceptional blend of maximum bandwidth and sound pressure levels, all while maintaining an understated and visually pleasing form. Crafted with a purposeful enclosure design, this system allows for installation in close proximity to walls and ceilings, making it an optimal choice for under balcony, column, or wall mounting.

Key Features:

  • Exceptional Audio Dispersion: Outfitted with a 1" exit compression driver seamlessly integrated into a newly designed 90° x 50° rotatable PT™ (Progressive Transition) waveguide, the AC18/95 ensures uniform coverage across the intended listening area. This harmonious blend results in a fluid power response, delivering a remarkably natural and immersive sound experience.

  • Precise LF Performance: Powered by an 8" Symmetrical Field Geometry (SFG™) LF Transducer featuring a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece, the AC18/95 pushes the boundaries of performance by minimizing voice coil inductance and distortion.

  • Adaptable Mounting: The rugged multi-ply hardwood enclosure has been thoughtfully engineered to excel in both vertical and horizontal orientations. Featuring mounting points for an optional U-bracket and OmniMount® type bracket, as well as attachment points on the enclosure's bottom for a stand mount accessory, installation is both effortless and versatile.

  • Durability and Elegance: Wrapped in JBL’s iconic textured DuraFlex™ finish, the rugged plywood enclosure is further fortified by a heavy-duty powder-coated steel grille with foam backing, ensuring both resilience and aesthetic charm.


Key Features at a Glance:

  • Compact Excellence: Experience premium audio performance in a compact package that refuses to compromise.

  • LF Precision: Unleash the power of the 8" LF transducer with SFG™ technology for precise low-frequency delivery.

  • Immersive Audio Projection: The 90° x 50° Progressive Transition™ Field Rotatable Waveguide, coupled with the 1" exit compression driver, guarantees accurate and captivating audio coverage.

  • Flexible Connectivity: Dual Neutrik NL4 connectors, alongside screw terminals, offer seamless connectivity options.


Experience the AC18/95 loudspeaker system—an embodiment of engineering brilliance and adaptability that sets a new standard for audio quality and installation flexibility.

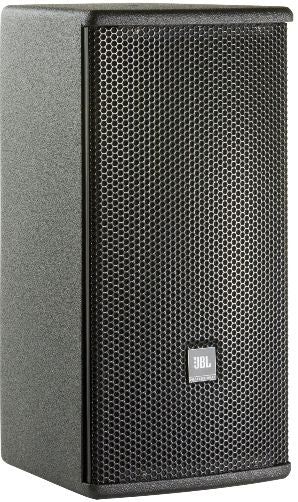

JBL AC18/95-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment

SKU: AC1895WRC | UPC: 691991028984
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL AC18/95-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>90° x 50° Progressive Transition</li>\n <li>Dual Neutrik NL4 connectors</li>\n <li>Exceptional Audio Dispersion</li>\n</ul>

Technical Details

Specifications

General
Configuration
Passive 2-Way
Total Power Capacity
250 W RMS 500 W Program 1000 W Peak
System Impedance
8 Ohms
Drivers
HF Driver
1 x 1" / 51 mm Dome Tweeter
LF Driver
1 x 8" / 20.3 cm Woofer
Performance
Frequency Response
47 Hz to 20 kHz
Connectivity
Audio I/O
2 x speakON NL4 Screw Terminal
Physical
Construction Material
Plywood
Dimensions
18.5 x 9.4 x 10" / 470 x 237.5 x 254 mm
Weight
28.2 lb / 12.8 kg
JBL AC1895-WRC Compact 2-way Loudspeaker with Weather Protection Treatment
JBL

JBL AC18/95-WRC Compact 2-way 8" Loudspeaker with Weather Protection Treatment
