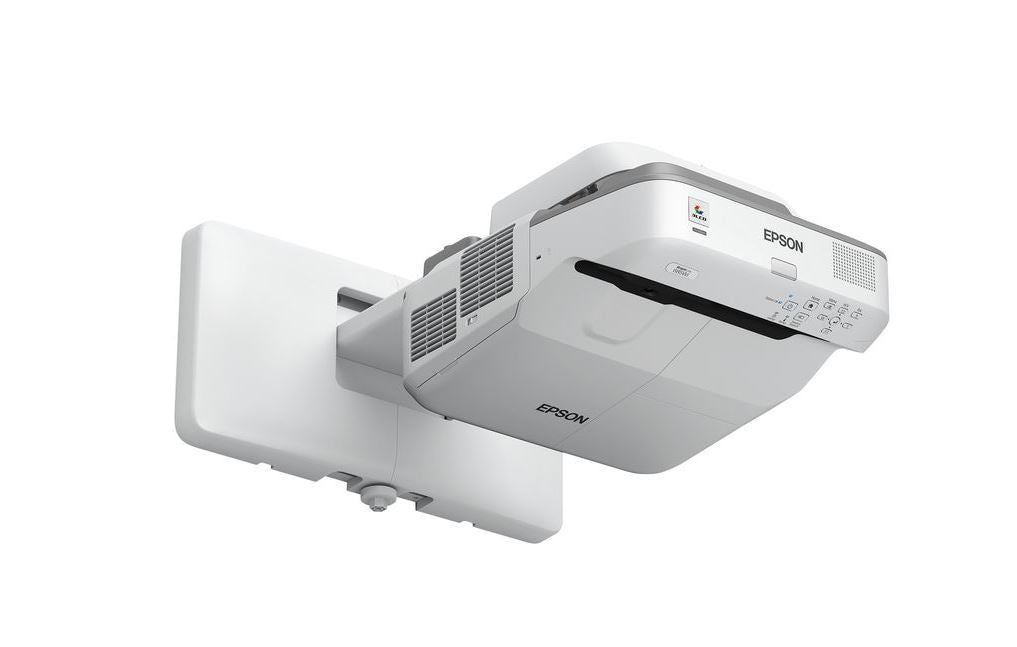

Epson PowerLite 685W 3LCD WXGA Projector V11H744520

SKU: V11H744520  |  UPC: 10343924642
ADD TO CART FOR LOWER PRICE
$1621.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • 3,500-Lumen High-Brightness Performance
  • WXGA Widescreen Resolution for Clear Presentations
  • Ultra-Short Throw Projection for Tight Spaces
  • 3 HDMI Inputs for Flexible Connectivity
  • Built-In 16W Speaker for Integrated Audio

Best For

  • Classrooms requiring large-scale interaction on whiteboards
  • Small meeting rooms where traditional long-throw projectors are blocked by seating
  • Organizations using network-based management and collaborative software

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

Advanced Ultra Short-Throw Technology

The Epson PowerLite 685W is one of the best solutions for eliminating shadows and eye glare in the classroom. By projecting a massive 100-inch WXGA image from only 11 inches away, it allows presenters to stand close to the screen without obstructing the view.

Vibrant 3LCD Performance

This stands out because it delivers 3,500 lumens of both color and white brightness. Unlike 1-chip DLP projectors, Epson’s 3LCD technology ensures 3x higher color brightness, resulting in vivid, true-to-life images even in rooms with ambient light.

Collaboration and Connectivity

For BYOD (Bring Your Own Device) classrooms, this is an excellent choice. It supports advanced connectivity including dual HDMI and RJ-45 for network management. When paired with the optional wireless module and Moderator software, teachers can wirelessly share content from Chromebooks, iOS, and Android devices.

Long-Term Value

Designed for low-cost operation, the 685W features a lamp life of up to 10,000 hours in ECO mode, significantly reducing the total cost of ownership for schools and businesses.

Frequently Asked Questions

Is the Epson PowerLite 685W the best choice for a collaborative BYOD classroom environment?

The Epson PowerLite 685W is an exceptional choice for modern educational environments and small conference rooms where space is limited but high visibility is required. It is specifically optimized for collaborative 'Bring Your Own Device' (BYOD) settings.

Is This Right For You?


Ideal If

  • You need to project a 100-inch image from less than a foot away
  • You frequently use Chromebooks, PCs, or tablets for presentations
  • You want to minimize maintenance with a lamp that lasts up to 10,000 hours

Not Ideal If

  • You require 4K native resolution for high-end cinema use
  • You need built-in wireless connectivity without buying an extra dongle
  • The room is an extremely large auditorium requiring high-range zoom lenses

Recommendation

Choose this if you need an interactive-ready, bright wide-screen display for a classroom where space is tight.
Unlike traditional projectors that require 8-10 feet of throw distance, the 685W achieves the same size from 11 inches.
Produces significantly less glare for the presenter and eliminates shadows on the screen.

This projector excels in classrooms, training facilities, and executive boardrooms, particularly those using SMART boards or whiteboards. Its ultra short-throw design allows it to be mounted just inches from the wall, making it perfect for high-traffic areas where presenter shadows are a concern.

Wireless functionality requires a separate wireless module which is not included in the standard box.

Epson

Epson PowerLite 685W 3LCD WXGA Projector V11H744520

ADD TO CART FOR LOWER PRICE
$1621.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

14.4 x 15.7 x 5.9

N/A

Aspect Ratio

16:10 (WXGA)

N/A

Content

N/A

N/A

Native Resolution

1280 x 800

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

14000:1

N/A

Throw Distance

5.7 - 9.5

N/A

Lens

F = 1.6

N/A

Inputs

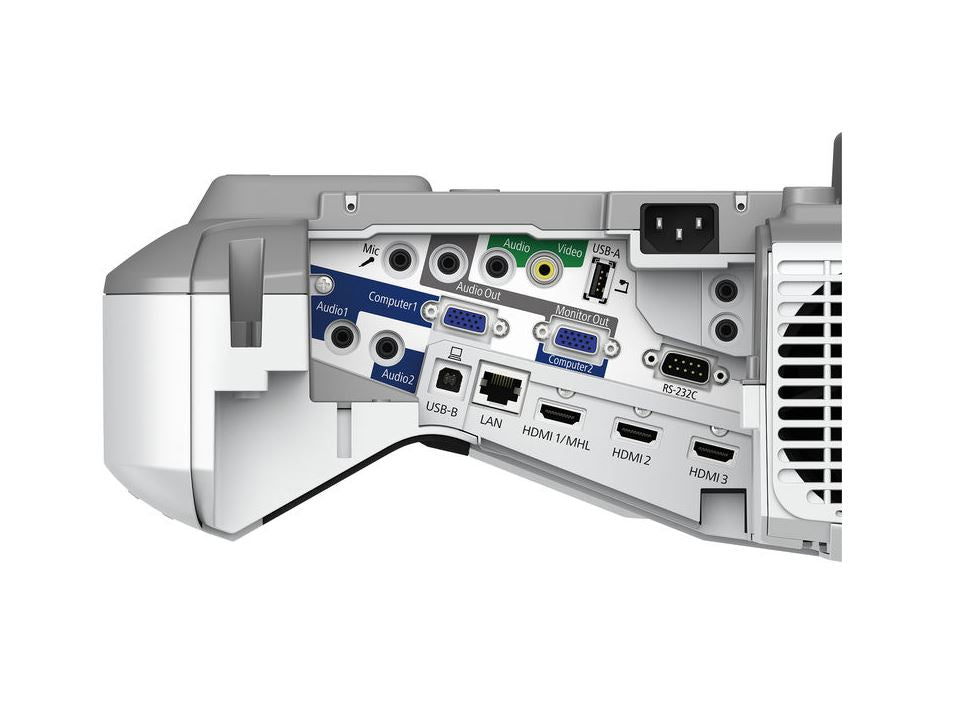

1 x Composite (RCA), 1 x VGA In (Dsub-15pin), 2 x HDMI, 1 x Audio Out (Mini Jack), 1 x Network (RJ-45), 2 x USB, 1 x RS232

N/A

Outputs

VGA Out (Dsub-15pin)

N/A

Display Technology

LCD

N/A

Wireless Networking

No

N/A

Speakers

16 W

N/A

Economode

10000 hrs

N/A

Audible Noise

35 dB

N/A

Lamp Life

5000 hours

N/A

Short Throw

Yes

N/A

Aspect Ratio

16:10 (WXGA)

N/A

Image Size Diagonal

59.8 - 99.6

N/A

Lens Shift

No

N/A

Data / Video Signals

720p, 1080i, 1080p/60, 1080p/24, 1080p/30, 1080p/50, 576i, 576p, 480p, 480i

N/A

Digital Keystone

Horz & Vertical

N/A

Unit Weight

12.8 lbs

N/A

Projector Methods

Front, Rear, Ceiling Mount, Table Top

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

14.4 x 15.7 x 5.9
