Elo Touch 3204L 32" Full HD Touchscreen Commercial Monitor E103164

Product Summary

🖥️ Elo 3204L – 32" Full HD Touchscreen Commercial Monitor

  • 📏 Screen Size: 32" Full HD resolution

  • ✋ Multi-Touch Support: Up to 40 simultaneous touch points

  • 🌗 24/7 Operation: Built for continuous commercial use

  • 🔄 Flexible Orientation: Supports landscape, portrait, and tabletop configurations

  • 🏬 Ideal for:

    • 🛍️ Self-service kiosks

    • 🧭 Wayfinding applications

    • 🏥 Hospital and healthcare environments

    • 🚉 Transportation and public venues

🔌 Connectivity & Integration

  • 🎮 Input Options: HDMI 2.0, DisplayPort, USB-C

  • 🧩 Peripheral Integration: 4x micro-USB ports for Elo Edge Connect accessories like:

    • 📷 4K Conference Camera

    • 🧬 Fingerprint Scanner

    • 📦 2D Barcode Scanner

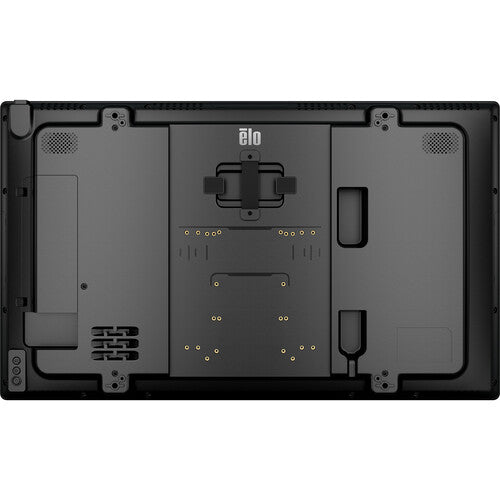

  • 💻 VESA-Compatible Rear Mounting for compact PC integration

  • 📦 All-in-One Clean Design:

    • Integrated cable management

    • Power brick included

    • External PC power passthrough

🌐 Remote Device Management

  • 🛠️ IoT-Ready: Manage settings via:

    • EloView

    • Crestron

    • Other MDM solutions through APIs

  • 🌐 Connection Options: Requires wired LAN or optional Wi-Fi adapter

🛡️ Peace of Mind with EloCare

  • 🤝 3-Year Standard Warranty for large format displays

  • 📦 Advance Unit Replacement included (US & EMEA only)

  • 🛠️ Expert Elo Support Team ensures reliable service

⚙️ Additional Features

  • 🔊 Built-in Dual 5W Speakers for clear audio

  • 💡 Ambient Light Sensor for brightness adjustment

  • 💤 Auto Wake & Wake by IoT for instant activation

  • 🛡️ Certified Durability: UL-60950 & IK-07 impact resistance

Elo Touch 3204L 32" Full HD Touchscreen Commercial Monitor E103164

SKU: E103164 | UPC: 843173156040
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,589.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch 3204L 32" Full HD Touchscreen Commercial Monitor E103164 $1,589.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

Brightness
400 nits for the LCD panel, and 320 nits with the PCAP sensor
Native Resolution
1920 x 1080 (Full HD)
Inputs
• HDMI: 2x HDMI 1.4 ports. DisplayPort: 1x DisplayPort 1.2. USB-C: 1x USB-C for video, touch control, and power. Serial: 1x 3.5mm TRS jack for RS232/MDC control. USB: 4x Elo Edge Connect Micro USB 2.0 ports and 1x USB-A port for Wi-Fi adapters. Ethernet: 2x RJ45 ports (one for IoT LAN and one for an optional OSD remote). Power input: IEC 60320-C13 connector.
Outputs
• Power output: IEC 60320-C14 connector for bypassing power to a compatible back-side device.
Duty Cycle
24/7
Screen Size
32"
Sound Output
Audio Speakers: 2x 5W stereo speakers. Audio output: 1x 3.5mm TRS jack for headphones
VESA Pattern
400 x 400 mm, M6.
Weight without stand
26.17 lbs (10.9 kg)
Elo

Elo Touch 3204L 32" Full HD Touchscreen Commercial Monitor E103164

$1,589.99

Brightness

400 nits for the LCD panel, and 320 nits with the PCAP sensor

N/A

Weight without stand

26.17 lbs (10.9 kg)

N/A

Weight with Stand

N/A

N/A

Duty Cycle

24/7

N/A

Dimensions

30.07" x 18.04" x 1.95"

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

1920 x 1080 (Full HD)

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

HDMI: 2x HDMI 1.4 ports. DisplayPort: 1x DisplayPort 1.2. USB-C: 1x USB-C for video, touch control, and power. Serial: 1x 3.5mm TRS jack for RS232/MDC control. USB: 4x Elo Edge Connect Micro USB 2.0 ports and 1x USB-A port for Wi-Fi adapters. Ethernet: 2x RJ45 ports (one for IoT LAN and one for an optional OSD remote). Power input: IEC 60320-C13 connector.

N/A

Outputs

Power output: IEC 60320-C14 connector for bypassing power to a compatible back-side device.

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

Audio Speakers: 2x 5W stereo speakers. Audio output: 1x 3.5mm TRS jack for headphones

N/A

Screen Size

32"

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

400 x 400 mm, M6.

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

30.07" x 18.04" x 1.95"

N/A

Aspect Ratio

N/A

N/A

Sensor

N/A

N/A

Resolution

N/A

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

N/A

N/A

TAA Compliant

N/A
