Product Summary

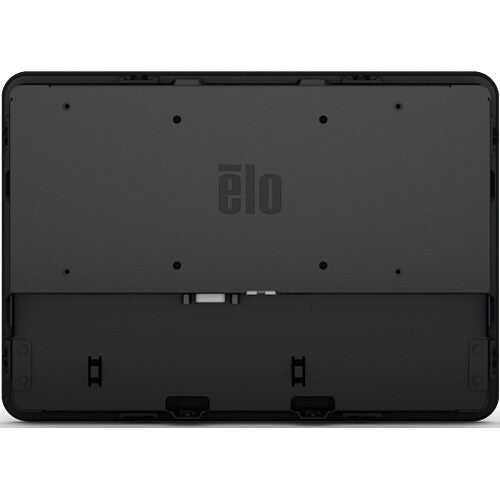

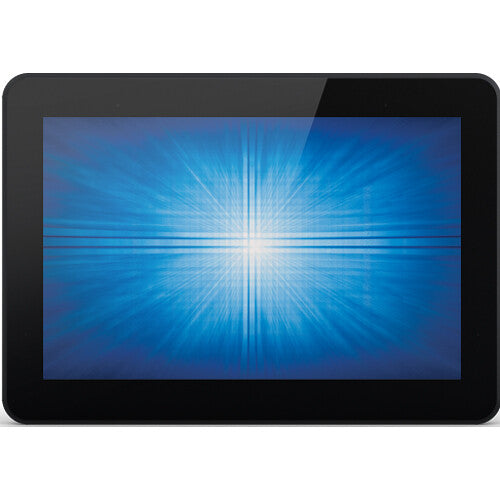

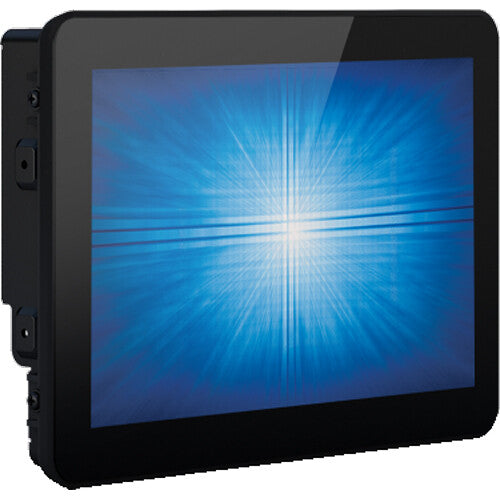

Elo Touch 1093L 10.1" Open-Frame Touchscreen Monitor

The Elo Touch 1093L is a 10.1-inch commercial open-frame touchscreen monitor engineered for OEMs, kiosk manufacturers, and system integrators. Featuring TouchPro® Projected Capacitive (PCAP) technology, a compact industrial design, and a bright WXGA display, the 1093L delivers responsive 10-point multi-touch performance with exceptional image clarity. Designed for long-term commercial reliability, it is ideal for self-service kiosks, industrial automation, healthcare equipment, gaming machines, transportation, and retail applications.

Bright WXGA Display

Deliver sharp visuals in a compact form factor.

  • 10.1-inch LED-backlit TFT LCD
  • 1280 × 800 WXGA resolution
  • 450-nit brightness (with touch)
  • 800:1 contrast ratio
  • 16:10 widescreen aspect ratio

The high-brightness display provides excellent image quality with wide viewing angles for commercial environments.

TouchPro® PCAP Technology

Fast, accurate multi-touch interaction.

  • Projected Capacitive (PCAP) touchscreen
  • Supports up to 10 simultaneous touch points
  • Edge-to-edge glass design
  • USB touch interface
  • Smooth, tablet-like touch experience

TouchPro® technology delivers precise, drift-free touch performance for intuitive user interaction.

Compact Open-Frame Design

Built for embedded installations.

  • Slim open-frame construction
  • Flush-mount brackets included
  • 75 × 75 mm VESA mounting
  • Landscape, portrait, or face-up installation
  • Remote OSD control box included

The compact chassis makes the 1093L easy to integrate into kiosks, cabinets, control panels, and custom enclosures.

Flexible Connectivity

Compatible with modern commercial systems.

  • HDMI input
  • DisplayPort input
  • VGA input
  • USB 2.0 touch interface
  • External 12V DC power

Multiple video inputs simplify integration with embedded PCs and commercial media players.

Commercial-Grade Reliability

Designed for continuous operation.

  • Commercial-grade construction
  • 50,000-hour MTBF
  • Touchscreen sealed to bezel and LCD
  • Energy-efficient LED backlight
  • 3-year manufacturer's warranty

Built for demanding commercial applications requiring dependable long-term performance.

Elo Touch 1093L 10.1" Class 720p HD Open Frame Touchscreen Display (TouchPro PCAP)

SKU: E321195 | UPC: 815335025778
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$451.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch 1093L 10.1" Class 720p HD Open Frame Touchscreen Display (TouchPro PCAP) $451.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 10.1" LCD Display
  • TouchPro® Projected Capacitive (PCAP) Touch Technology
  • Open Frame Design
  • 1280 × 800 WXGA Resolution
  • 500 nits Brightness (450 nits with Touch)
  • 10-Point Multi-Touch

Best For

  • 🏨 Hospitality

Technical Details

Specifications

Screen Size
10.1
Native Resolution
1280 x 800
Brightness
350 nits (LCD panel); 315 nits (with PCAP)
Inputs
• Video Inputs: HDMI 1.3 (Type A receptacle) VGA (Female DB-15 connector) DisplayPort 1.1a Touch Interface: USB 2.0 (Type B)
VESA Pattern
75 x 75 mm
Elo

Elo Touch 1093L 10.1" Class 720p HD Open Frame Touchscreen Display (TouchPro PCAP)

$451.00

Brightness

350 nits (LCD panel); 315 nits (with PCAP)

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

10.07" x 7.03" x 1.45"

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

1280 x 800

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

Video Inputs: HDMI 1.3 (Type A receptacle) VGA (Female DB-15 connector) DisplayPort 1.1a Touch Interface: USB 2.0 (Type B)
