SKU: IMS3000

Dolby IMS3000 Integrated Media Server

Call For Price
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Upgrade your classroom, house of worship, or conference room with the high-resolution streaming and tracking capabilities of the gray Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom from PTZOptics. This camera is designed to enhance remote meetings through platforms like Skype, Microsoft Teams, or Zoom, making it ideal for educational, corporate, and instructional environments.

Superior Video Quality


The Move 4K camera delivers exceptional video quality, capturing resolutions up to UHD 4K60 via IP and HDMI, and 1080p60 over 3G-SDI. Its advanced auto-tracking feature ensures that the camera follows your subject as they move around the room, eliminating the need for a dedicated camera operator. Whether you’re working in bright or low-light conditions, the camera's wide dynamic range, 3D noise reduction, and NDI|HX 3 capabilities guarantee sharp, clear, and consistent images.

Advanced Imaging and Zoom Capabilities


At the core of the Move 4K camera is a 1/1.8" 4K CMOS 8.42MP sensor that produces crisp, detailed imagery. The built-in lens offers an optical zoom range of 20x, providing the flexibility to capture both wide-angle shots and close-up details. Additionally, the camera supports up to 16x digital zoom, allowing you to extend your reach without compromising image quality.

Versatile Preset Control


With 255 programmable preset positions, the Move 4K camera allows you to quickly switch between different views and angles. Control options include IP, RS-232, or RS-485 protocols, and the camera can be managed via separately available controllers or the included IR remote. This versatility makes it easy to adapt to dynamic settings where rapid adjustments are required.

Efficient Video Compression and Streaming


The camera supports H.265, H.264, and MJPEG video compression formats, enabling high-quality video output with efficient bandwidth usage. You can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols, providing flexibility in streaming and recording options for various platforms.

Integrated Audio Support


The Move 4K camera includes a 3.5mm stereo line-level jack for embedding external audio into your video stream. Additionally, it features a 3.5mm audio output, offering further integration possibilities with external audio systems.

Flexible Power Options


Power the Move 4K camera using the included AC adapter or via PoE+ (Power-over-Ethernet) on a supported network, providing convenient and versatile installation options for different environments.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Dolby IMS3000 Integrated Media Server
Dolby

Dolby IMS3000 Integrated Media Server

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

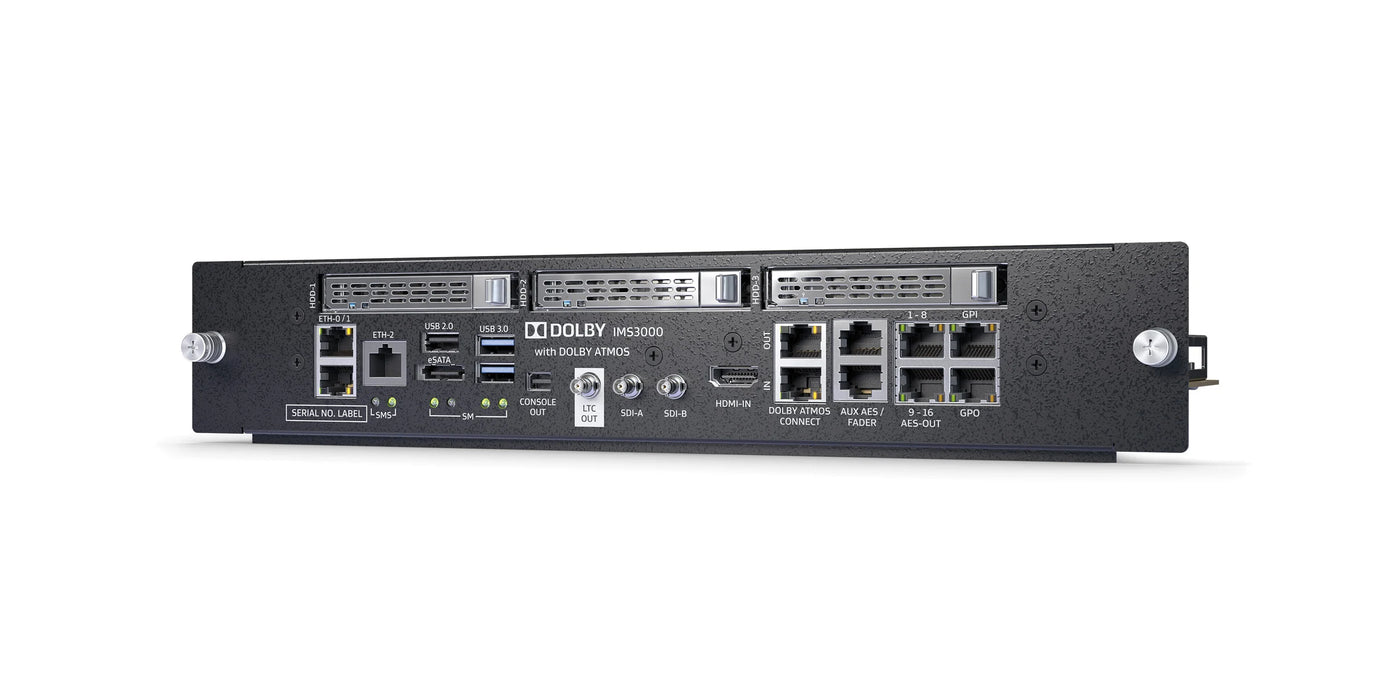

<strong>Dolby Integrated Media Server IMS3000</strong>
I/Os
• 3 × GB Ethernet (1000Base-T/RJ-45)
• 1 × eSATA 3 Gbps
• 1 × USB 2.0
• 2 × USB 3.0
• Dual 3G SDI Inputs
• 1 × HDMI® 1 (Up to 4K 60 fps)
• 8 × AES-3 audio pairs (2 × RJ-45)
• 2 x AES-3 Auxiliary Outputs
• 2 x AES-3 Auxiliary Inputs
• 1 x Dolby Atmos Connect output with loopback
(AES67 Protocol Only)
• 4 × GPI (1 × RJ-45)
• 6 × GPO (1 × RJ-45)
• LTC output
• 3 × hot-swappable removable 2.5” HDDs
• Mini DisplayPort console out (no UI)
• Dolby Remote Fader Port for use with optional CAT868

<strong>DCP PLAYBACK</strong>
• 2K up to 120 fps
• 4K up to 30 fps (60 fps on select NEC projectors)
• Bit rates up to 500 Mbps
• 12-bit 4:4:4 XYZ’ for all formats
• Support of SMPTE and INTEROP formats
• Internal subtitle engine, or integrate with a projector for
CineCanvas subtitle rendering
• DCI-compliant
• JPEG2000, MPEG2 and H.264 Playback

<strong>MPEG-2/H.264</strong>
• 720p 60, 1080i 60, and 1080p 60
• Bit rates up to 50 Mbps
• 4:2:0 8-bit color

<strong>VIDEO PROCESSING FEATURES</strong>
• Color-space conversion—supports YCbCr601, YCbCr709,
REC 709, XYZ’, YCxCz
• Deinterlacing
• Scaler up to 4K

<strong>AUDIO PROCESSING FEATURES (REQUIRES ENABLEMENTS)</strong>
• Dolby Surround 7.1 and 5.1 playback
• Dolby Atmos rendering to Dolby Surround 7.1 on
base configuration units
• Dolby Atmos rendering up to 64 speakers with Full
Atmos enablement
• Dolby Digital Plus
• Dolby Digital (AC-3)
• TrueHD Audio – Support Consumer Atmos on HDMI Input
• 44.1 kHz, 48 kHz 96 kHz support at 16, 20 and 24 bit
• AES67
• Alternative Content Surround Processing
• Raised Cosine equalization, 1/12th octave resolution
• Internal crossover supports up to 4-way loudspeakers

<strong>CONTROL</strong>
• Web-based user interface
• Bluetooth support for control from a mobile device
(Android and iOS)**
• Mini DisplayPort console out (debug console only)
• Third-party TMS and NOC systems
• API documentation available on request

<strong>SECURITY</strong>
• DCI-compliant forensic watermarking
• FIPS 140-2 (Level 3 security certified)

<strong>POWER CONSUMPTION</strong>
• &lt;70 W

<strong>STORAGE</strong>
• Internal—3 × 2.5” 1 TB hard disk drives
(RAID 5 Configuration) Approximately 1.8 TB of user storage
• Internal—3 x 2.5” 2TB Solid State Drives
(RAID 5 Configuration) Approximately 3.6 TB of user storage
• IMS3000 + Main Storage NAS - 4 x 3.5” 4TB hard disk drives
RAID 5 configuration). Approximately 10.5 TB of user storage
No internal drives are used in the IMS3000 and the NAS can
ingest when the IMS3000 is off.
• IMS + Additional Storage NAS -
(This option uses the IMS internal storage and an external
storage NAS but does not support offline ingest to the NAS).
