Product Summary








































Height 1 1/2" (3.81 cm)
Width 4" (10.16 cm)
Depth 4 1/2" (11.43 cm)
Shipping Weight 2.00 lbs (0.91 kgs)
Frequency Response 20Hz - 20kHz Flat
Connector Type Four Position Detachable Phoenix Connector
Finish Black

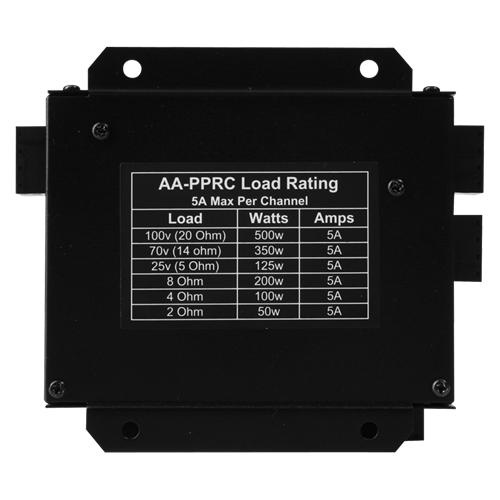

Load Capacity 5 AMPS
Compatible With 8Ω, 25V, 70.7V, 100V Systems


  • 12VDC UL Power Supply (Included)

  • 2 Channel

  • 350 W @ 70.7V Per Channel

  • Audio High Level Trigger Sense with Threshold Adjust 3V - 45V

  • Audio Line Level Trigger Sense with Threshold Adjust 20mV - 2V

  • Compact Size H 1.5"x W 4" x L 4.5" (H 38.1 mm x W 101.6 mm x L 114.3 mm)

  • Contact Closure Trigger

  • DC Trigger 5V - 24V

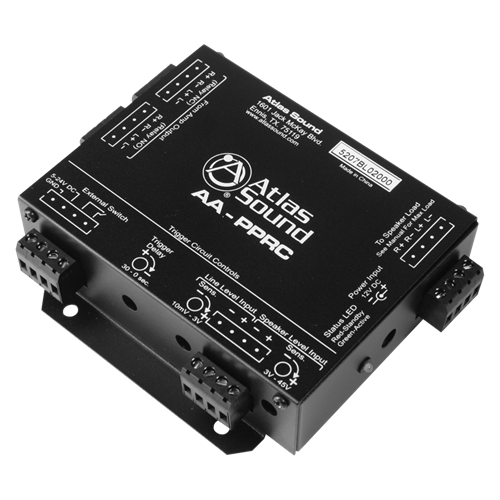

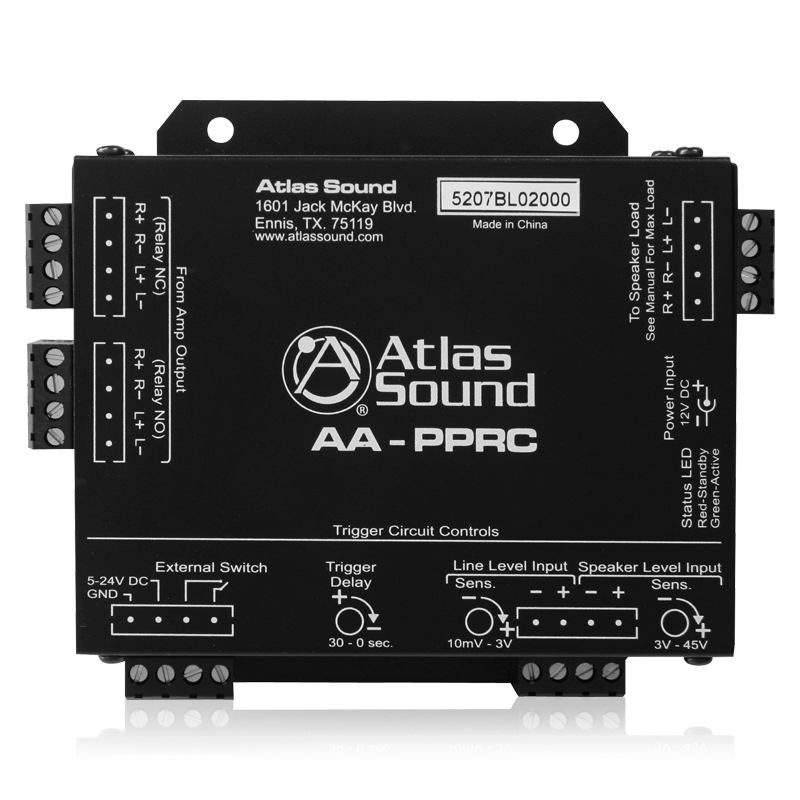

Introducing the AtlasIED Priority Pager Relay Controller (AA-PPRC), a versatile two-input by two-output speaker level relay switcher. Designed to be seamlessly integrated between an amplifier's output and the speaker load, the AA-PPRC offers exceptional flexibility for various audio systems, including 25V, 70.7V, 100V, or low impedance setups.

Each channel of the AA-PPRC is capable of handling up to 350 watts, ensuring reliable performance and power management. The placement of the relay controller is not critical, as it can be easily triggered from multiple sources. Whether it's High Level or Line Level signals, or a wide range of DC voltages, the relay control circuit can be activated accordingly.

For added convenience, the AA-PPRC features contact closer terminals, allowing for easy integration with other devices. The adjustable relay release ensures precise paging override tuning, enabling seamless transitions between audio presentations and paging announcements. This makes it ideal for boardroom applications where muting the audio system to prioritize important announcements is necessary. Once the page has completed, the presentation system will automatically resume.

Moreover, the AA-PPRC serves as an excellent solution for zone paging management in both new and existing audio systems, supporting 8Ω, 25V, 70.7V, and 100V installations. It provides efficient control and coordination for managing audio distribution across different zones.

With its versatile capabilities and reliable performance, the AtlasIED Priority Pager Relay Controller offers a robust solution for enhancing audio management and paging functionality in various installations. Experience seamless integration, enhanced control, and uninterrupted audio performance with the AA-PPRC.

AtlasSound Priority Paging Remote Controller AA-PPRC

SKU: AAPPRC | UPC: 612079184989
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$354.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
AtlasSound Priority Paging Remote Controller AA-PPRC $354.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <table>\n<tbody>\n<tr>\n<td>Height</td>\n<td>1 1/2" (3.81 cm)</td>\n</tr>\n<tr>\n<td>Width</td>\n<td>4" (10.16 cm)</td>\n</tr>\n<tr>\n<td>Depth</td>\n<td>4 1/2" (11.43 cm)</td>\n</tr>\n<tr>\n<td>Shipping Weight</td>\n<td>2.00 lbs (0.91 kgs)</td>\n</tr>\n<tr>\n<td>Frequency Response</td>\n<td>20Hz - 20kHz Flat</td>\n</tr>\n<tr>\n<td>Connector Type</td>\n<td>Four Position Detachable Phoenix Connector</td>\n</tr>\n<tr>\n<td>Finish</td>\n<td>Black</td>\n</tr>\n<tr>\n<td>Load Capacity</td>\n<td>5 AMPS</td>\n</tr>\n<tr>\n<td>Compatible With</td>\n<td>8Ω, 25V, 70.7V, 100V Systems</td>\n</tr>\n</tbody>\n</table>
