Atlas Sound WTSD Mixer/Mic Line/Aux Mixer 3x1 with Bluetooth, Dante

Music Input	3.5mm Stereo Summed Front Panel
Impedance	10kΩ
Input Level	1V (0dBV)
Input Type	Unbalanced, Qty. 1
Music Input	Bluetooth Stereo Front Panel
Impedance	10kΩ
Input Level	1V (0dBV)
Input Type	Balanced Mic/Line Selectable, Qty. 1
Connector Type	XLR Female Socket
Impedance	1.2kΩ Balanced, 600Ω Unbalanced

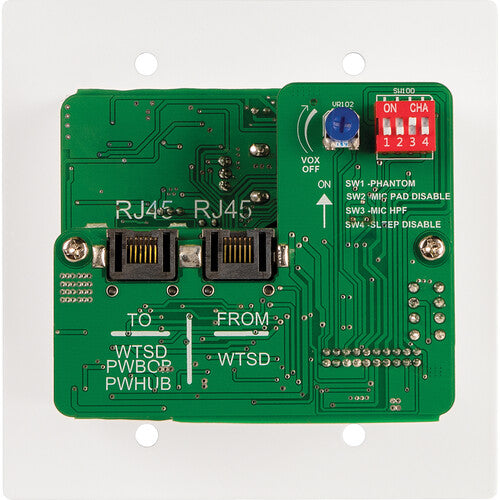

Phantom Power	24VDC Defeatable Rear panel DP SW, ON Indicator RED Front Panel
Low Cut Filter	125Hz/12dB Defeatable Rear Panel DP SW
Line Input Level	500mV (-6dBV) Balanced
Output Type	WTSD Bus
Connector Type	RJ45
Frequency Response	20Hz -20KHz +/- 1dB
THD	.06% & 1KHz
Height	4.37" (111mm)
Width	4.34" (110mm)
Depth	2.5" (62.6mm)
Weight	0.53 lbs (.24kg)
Shipping Weight	1.3 lbs. (.61kg)

• Indoor/Outdoor Use

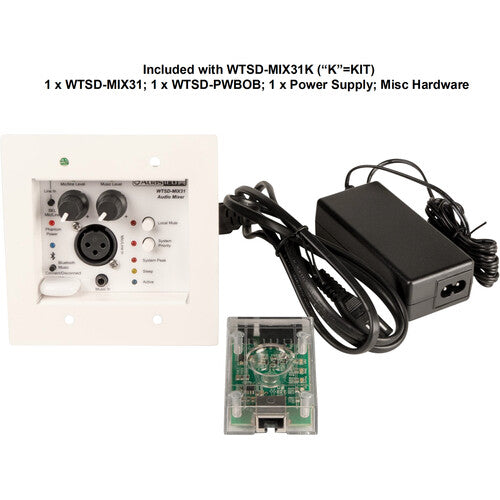

• Power Supply & WTSD-PWBOB interface included


• XLR Balanced Mic or Line Input with Individual Level Controls


• 3.5mm Stereo Actively Summed Input with Level Control


• Commercial Grade Bluetooth Input with Level Control


• The Bluetooth Discovery ID Name can be Customized


• Fits Most 2-Gang Boxes


• Uses Industry Standard Cat5 or Cat6 Cable


• High Gain Balanced Line Output for Applications of 400ft.


• Linkable with other WTSD Mixers on the same BUSS

Introducing the Atlas Sound Mixer/Mic Line/Aux Mixer 3x1 with Bluetooth, Dante WTSD-MIX31K, a versatile 3x1 Mic/line/Aux/Bluetooth Analog Mixer designed to deliver exceptional audio performance. This mixer offers a range of features that cater to the needs of various audio applications.

Featuring a balanced microphone/line input and an auxiliary 3.5mm and Bluetooth summed input, the WTSD-MIX31K allows for seamless integration of different audio sources. The Bluetooth functionality utilizes commercial-grade technology, ensuring ultra-low noise levels, long-range connectivity, and a quick disconnect bump feature. The installer has the flexibility to customize the Bluetooth Discovery ID name using the dedicated renaming app, adding a personal touch to the setup.

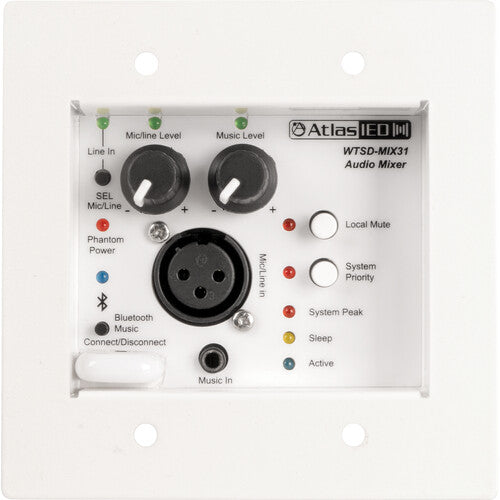

Switching between mic or line level for the XLR input is conveniently done via a front panel switch, accessible through a pinhole. The high gain mic inputs are designed with user-enabled phantom power for condenser microphones, offering versatility in microphone selection. Additionally, a 125Hz low-cut filter is incorporated to eliminate unwanted low-frequency interferences, ensuring pristine audio quality.

The WTSD-MIX31K includes practical features for convenient control. A local mute button allows for easy muting of the output to the bus, providing flexibility during audio mixing. Furthermore, a system priority button enables the muting of building-wide BGM (background music) systems, allowing for isolation of the room when needed. An adjustable Voice-Activated Switching (VOX) feature allows for the automatic muting of the AUX input background audio during announcements, ensuring clear and focused communication.

The AUX input, equipped with a stereo 3.5mm jack, is electronically summed to achieve optimal audio performance. Separate level controls for each input provide precise control over the audio mix, allowing for fine-tuning according to specific requirements.

The WTSD-PWBOB is included with each unit, providing a balanced audio output with signal, mute, system priority, and power LEDs. Additionally, it features a 12V DC logic output, which can be utilized for remote system muting or power sequencing.

For those seeking digital network audio capabilities, the WTSD-MIX31K can be easily converted into Dante® Digital Network audio by interfacing it with the optional AtlasIED TSD-DAC2i converter, opening up a range of possibilities for networked audio solutions.

The WTSD-MIX31K is a reliable and feature-rich analog mixer that offers exceptional audio performance and flexibility. With its comprehensive set of functions, it is suitable for a variety of applications, from professional audio installations to conference rooms, educational facilities, and more.
