Product Summary

































Type 3x Unbalanced 1/8" (3.5 mm) stereo
1x Balanced mic or line selectable removable 3 position captive screw 1/8" (3.5 mm) spacing
Impedance 1/8": 10 kΩ
Captive Screw: 1.2 kΩ (balanced), 600 Ω (unbalanced)
Input Level 1/8": 316 mV (-10 dB) = 2 V (+6 dBV) Balanced Output, Maximum Input 1.6 V (4.1 dBV)
Phantom Power Captive Screw: 24 VDC, defeatable
Low Cut Filters Captive Screw: 125 Hz/12 dB, defeatable
Line Input Level 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 6 V (15 dBV)
Mic Input Level 46 dB Gain, 1 0mV (-40 dB) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 40 mV (-27 dBV)



Outputs
















Type 2x Balanced line (L & R) removable 3 position captive screw 1/8" (3.5 mm) spacing
Impedance Balanced: 300 Ω
Unbalanced: 150 Ω
Line Output Level 1 V (0 dBV) In = 2 V (+6 dBV), Maximum Output 6 V (15 dBV)



Controls
























Input Level 4x Removable knobs with security covers
Mute Mute CC: Contact closure, removable 2 position captive screw 1/8" (3.5 mm) spacing
VOX Mute Sens: Trim adjust for mic sensitivity
Limiter Output Limiter: Threshold adjust
Remote Remote Level: Control port 10 kΩ external pot, removable 2 position captive screw 1/8" (3.5 mm) spacing
Voltage Output DC 12 V Output: 12 V DC to power wall controller LED, removable 2 position captive screw 1/8" (3.5 mm) spacing






  • Stereo or Mono Configurations









  • One Balanced Mic/Line Input









  • Switchable 24V Phantom Power









  • Three Unbalanced Stereo Line Inputs 3.5mm









  • VOX Sense and Contact Closure, Priority Mute









  • Variable Output Limiter









  • Remote Level Control









  • 12dB/Octave Low Cut Filter @ 125Hz Mic/Line









  • Remote Control Input Select & Level Control





The Atlas Sound TSD- MIX42RT 4x2 Mic/Line Mixer with Priority Sense is designed for applications where paging, priority music override or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.

The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.

The TSD-MIX42RT can be used in conjunction with an Atlas Audio WPD-MIX42RT decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.

Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). Remote level control feature allows use of the Atlas Sound AAVC-10K or WPD-VC10K decorative wall plate control for remote adjustment of either the entire master mix bus or inputs 1, 2, 3. A variable output limiter provides system protection by reducing clipping and distortion which can be useful when mixing mic and/or line sources with varying volumes. The unit requires a power supply (not included) for operation.

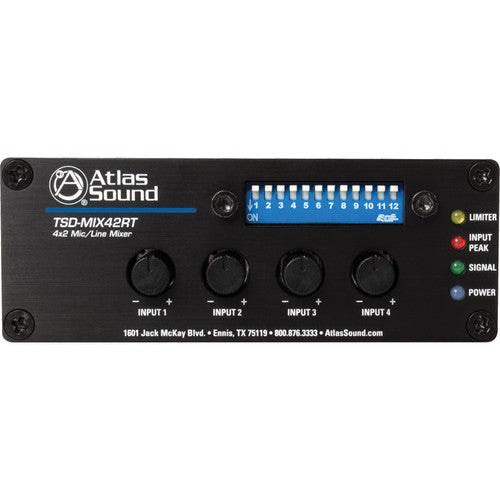

Atlas Sound TSD- MIX42RT 4x2 Mic/Line Mixer with Priority Sense

SKU: TSDMIX42RT | UPC: 612079189465
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$492.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound TSD- MIX42RT 4x2 Mic/Line Mixer with Priority Sense $492.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features
