Product Summary
































Type 1x Unbalanced RCA left and right actively summed
2x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5mm)
Impedance RCA: 10 kΩ
1/8": 1.2 kΩ balanced, 600 Ω unbalanced
Input Level RCA:
316 mV (-10 dBV) = 2V (+6 dBV) Balanced Output
Maximum Input: 1.6 V (4.1 dBV)
Phantom Power 1/8": 24 V DC, defeatable
Low Cut Filters 1/8: 125 Hz/12 dB, defeatable
Line Input Level 1/8": 1 V (0 dBV) Balanced, 2 V (+6 dBV) Balanced Output,
Maximum Input: 6 V (6 dBV)
Mic Input Level 1/8": 46 dB Gain 10 mV (-40 dBV) Balanced = 2 V (+6 dBV) Balanced Output
Maximum Input: 40 mV (-27 dBV)





  • Two Balanced Mic/Line Inputs









  • High Gain (50dB) Microphone Preamps









  • Switchable 24V Phantom Power









  • One Unbalanced Summing Dual RCA Line Input









  • Vox Sense and Contact Closure Priority Mute of Channel 3









  • Variable Output Limiter









  • Remote Level Control









  • 12 dB/Octave Low Cut Filter @ 125 Hz

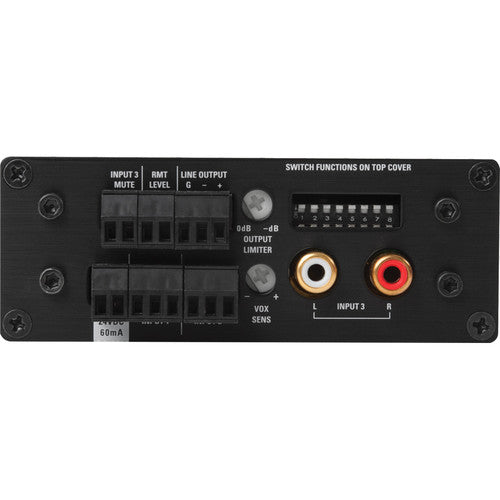

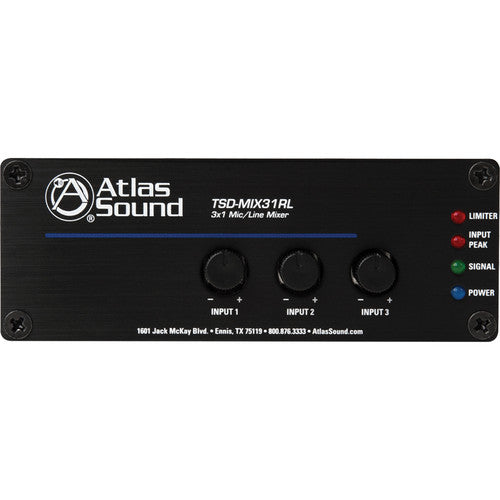

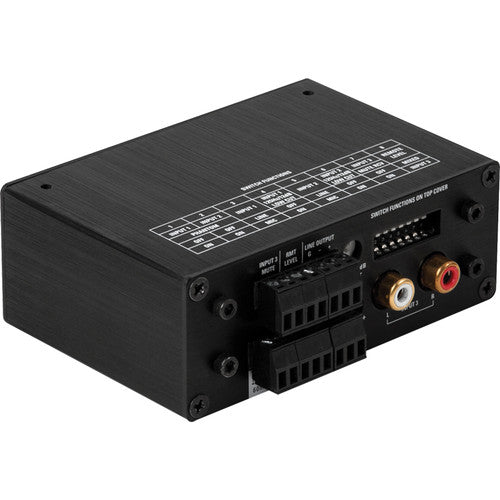

Introducing the Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer, a versatile and reliable audio solution designed for various applications. This mixer offers two mic/balanced line inputs, conveniently connected via removable Phoenix style connectors, as well as a stereo summing dual RCA input for additional flexibility.

One of the standout features of the TSD-MIX31RL is its switchable phantom power, which allows for seamless integration of condenser microphones. This feature ensures optimal performance and compatibility with a wide range of microphones, enhancing the versatility of the mixer.

To maintain pristine audio quality, the TSD-MIX31RL is equipped with low-noise internal mic preamps. These preamps deliver exceptional clarity and operate quietly, ensuring that the audio signal remains clean and free from unwanted coloration.

Furthermore, each input of the mixer includes a 12dB/octave high pass filter at 125Hz. This filter serves to minimize bass rumble and low-frequency feedback, enabling you to achieve a balanced and controlled sound output.

The TSD-MIX31RL also offers convenient priority paging options. You can activate priority paging through contact closure or VOX trigger on Input 1, which mutes input 3 only. This feature allows for seamless integration of important announcements or priority messages into your audio setup.

For added convenience, the mixer includes a remote level control feature. This feature enables the use of an optional decorative wall plate control, allowing for remote adjustment of either the entire mix bus or input 3 only. This is particularly useful for managing background music inputs or making adjustments in different zones of your audio system.

To ensure system protection and prevent clipping and distortion, the TSD-MIX31RL features a variable output limiter. This limiter actively reduces the risk of audio signal distortion, safeguarding the integrity of your audio output.

Please note that the TSD-MIX31RL requires a power supply (not included) for operation, allowing you to customize the power setup based on your specific needs.

In summary, the Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer offers a range of professional features and functionalities to enhance your audio experience. From its versatile inputs and switchable phantom power to its priority paging options and remote level control, this mixer provides the flexibility and control required for various applications. With its variable output limiter and attention to audio quality, the TSD-MIX31RL ensures optimal performance and protection for your audio system. Choose the TSD-MIX31RL for reliable and efficient audio mixing capabilities.

Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer

SKU: TSDMIX31RL | UPC: 612079187805
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$316.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer $316.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">\n<tbody>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnLabel">Type</td>\n<td class="value_fDXOr6EpR9 " data-selenium="specsItemGroupTableColumnValue">1x Unbalanced RCA left and right actively summed\n2x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5mm)</td>\n</tr>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Impedance</td>\n<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">RCA: 10 kΩ\n1/8": 1.2 kΩ balanced, 600 Ω unbalanced</td>\n</tr>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Input Level</td>\n<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">RCA:\n316 mV (-10 dBV) = 2V (+6 dBV) Balanced Output\nMaximum Input: 1.6 V (4.1 dBV)</td>\n</tr>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Phantom Power</td>\n<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">1/8": 24 V DC, defeatable</td>\n</tr>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Low Cut Filters</td>\n<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">1/8: 125 Hz/12 dB, defeatable</td>\n</tr>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Line Input Level</td>\n<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">1/8": 1 V (0 dBV) Balanced, 2 V (+6 dBV) Balanced Output,\nMaximum Input: 6 V (6 dBV)</td>\n</tr>\n<tr class="pair_fDXOr6EpR9" data-selenium="specsItemGroupTableRow">\n<td class="label_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnLabel">Mic Input Level</td>\n<td class="value_fDXOr6EpR9" data-selenium="specsItemGroupTableColumnValue">1/8": 46 dB Gain 10 mV (-40 dBV) Balanced = 2 V (+6 dBV) Balanced Output\nMaximum Input: 40 mV (-27 dBV)</td>\n</tr>\n</tbody>\n</table>
