Product Summary

Speaker Type Coaxial
Sensitivity 86dB (1W/1m)
Power Taps 4, 8, 16, 32-Watts (70.7V)
Power Taps 8, 16, 32-Watts (100V)
RMS Power (Watts) 75 @ 4Ω
Frequency Response 100Hz - 15kHz (DSP Corrected)

  • Subtle Form & Design Blends Into Any Ceiling

  • Easy & Quick Installation

  • Patented Waveguide with User Selectable Adaptive Dispersion Lenses

  • Self Contained Unit Includes Loudspeaker, Enclosure, and Adjustable Tile Rails

  • Sealed Enclosure Provides Optimal Bass Response

  • Optional Color Match Process Via DesignLab™ by AtlasIED


Introducing the SHS-6T2, an industry-first strategically hidden ceiling speaker designed to seamlessly blend into the aesthetic of any ceiling while delivering exceptional sound performance. This innovative speaker is the perfect choice for architecturally impressive environments where high-definition audio is desired, without compromising the visual appeal.

The SHS-6T2 is specifically designed to be discreet and virtually invisible, allowing the focus to remain on the surroundings rather than the speaker itself. It effortlessly integrates into the ceiling, maintaining a clean and unobtrusive appearance while providing outstanding audio quality.

This versatile speaker is ideal for a variety of applications, including background music, paging/notification systems, and sound masking. Whether you require a speaker for creating an immersive audio experience or ensuring clear and intelligible announcements, the SHS-6T2 delivers exceptional performance.

Installation is quick and hassle-free, making it suitable for both new construction and retrofit projects. The SHS-6T2 comes packaged with three different adaptive dispersion lenses, allowing for flexibility in application and installation locations. This ensures optimal sound distribution and coverage, regardless of the specific requirements of the space.

Experience a harmonious blend of outstanding sound performance and discreet design with the SHS-6T2 strategically hidden ceiling speaker. Let your high-definition audio be heard, not seen, in architecturally impressive environments. Install the SHS-6T2 for a seamless integration of audio and aesthetics.

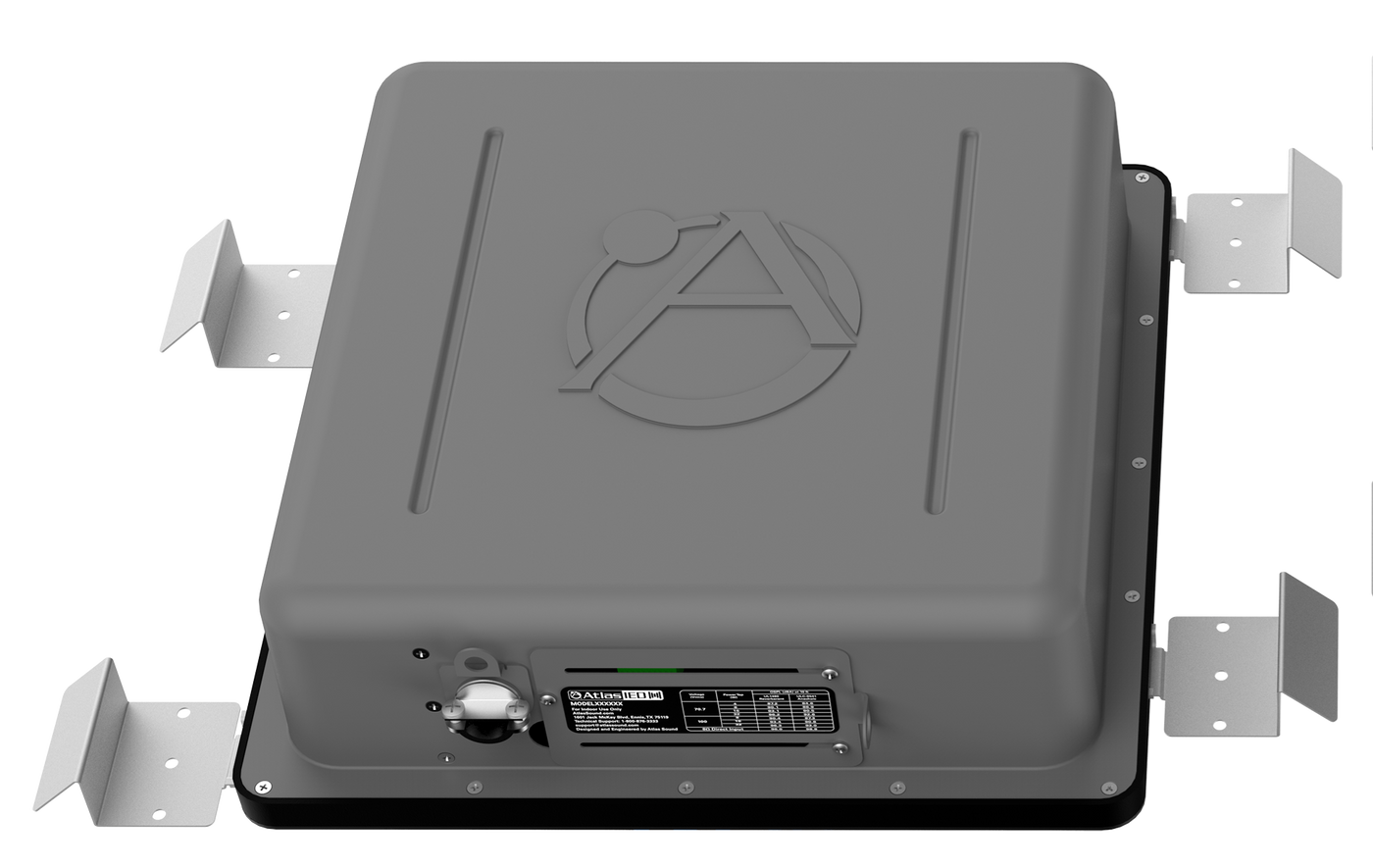

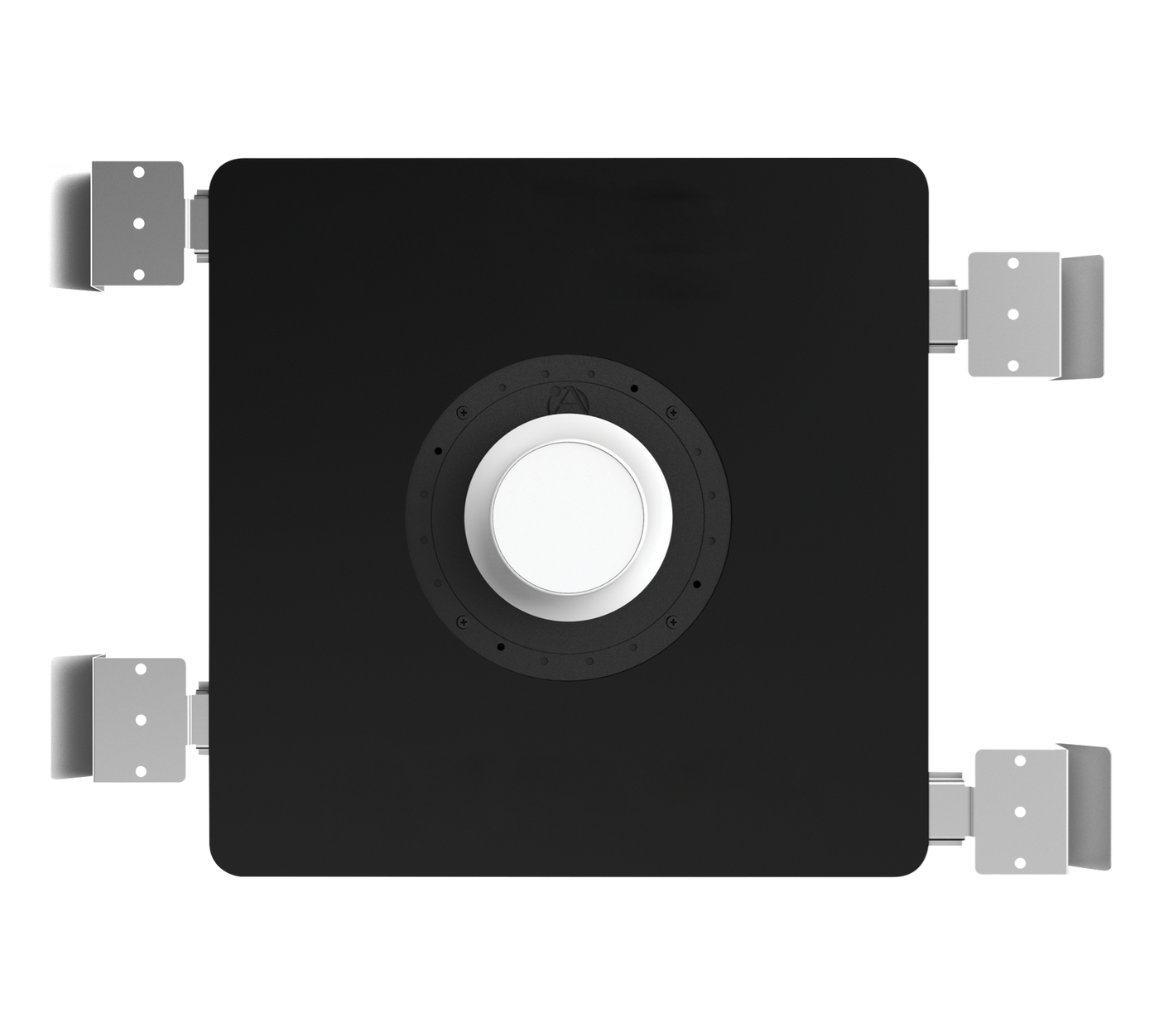

Atlas Sound Strategically Hidden Speaker with 32-Watt 70/100V Transformer and Enclosure SHS-6T2

SKU: SHS6T2 | UPC: 612079663965
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$353.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound Strategically Hidden Speaker with 32-Watt 70/100V Transformer and Enclosure SHS-6T2 $353.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Speaker Type Coaxial\nSensitivity 86dB (1W/1m)\nPower Taps 4, 8, 16, 32-Watts (70.7V)\nPower Taps 8, 16, 32-Watts (100V)\nRMS Power (Watts) 75 @ 4Ω\nFrequency Response 100Hz - 15kHz (DSP Corrected)

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Coaxial
Sensitivity 86dB (1W/1m)
Power Taps 4, 8, 16, 32-Watts (70.7V)
Power Taps 8, 16, 32-Watts (100V)
RMS Power (Watts) 75 @ 4Ω
Frequency Response 100Hz - 15kHz (DSP Corrected)
Dispersion 130°, 2kHz Octave Band with 4mm Dispersion Lens
Cut Out Diameter 2.75" (69.85mm)
Certified To Safety Listing UL1480 / UL2043
Dimensions (HxWxD) 12.73" (323.3mm) x 12.73" (323.3mm) x 3.92" (99.6mm)
