Product Summary


  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience

  • Handles up to 70 W of RMS power

  • Hear every detail crisp and clear with a frequency response of 60 Hz-20 kHz

  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers



  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience

  • Handles up to 70 W of RMS power

  • Hear every detail crisp and clear with a frequency response of 60 Hz-20 kHz


The AtlasIED PM8FA features the familiar response and dispersion of AtlasIED's model FA138 high performance 8" Strategy Series driver. This loudspeaker is the same FA Series device used in AtlasIED's successful model FAP82T ceiling loudspeaker package. Mounted down-firing in an attractive enclosure, the PM8FA provides natural sounding, wide coverage for low height installations while retaining impressive full range frequency response for both music and paging applications.

Attaching a PM8FA to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC TM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).

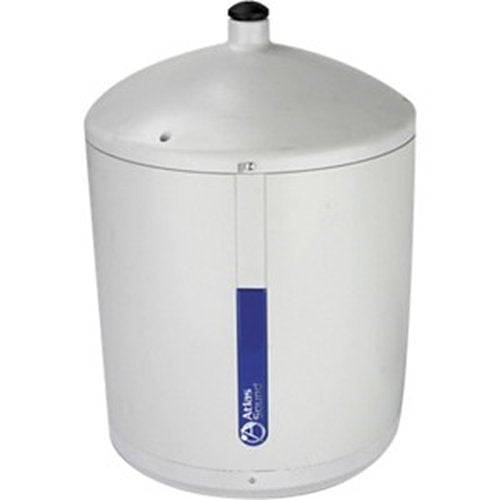

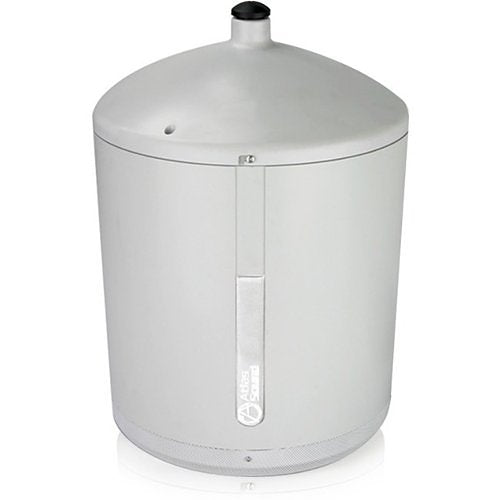

Atlas Sound PM8FA-WH 8" 2-Way Pendant Mount Speaker with 60W 70.7V Transformer, White

SKU: PM8FAWH | UPC: 612079188475
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$381.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound PM8FA-WH 8" 2-Way Pendant Mount Speaker with 60W 70.7V Transformer, White $381.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="mainfeatureslist">\n <li>The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience</li>\n <li>Handles up to 70 W of RMS power</li>\n <li>Hear every detail crisp and clear with a frequency response of 60 Hz-20 kHz</li>\n <li>8 Ohm impedance extracts maximum power so you will get more output from your speakers</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Coaxial
Sensitivity 90dB Average
Frequency Response 65Hz - 20kHz
Impedance 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω
Dispersion 100°
Height 16 5/8" (42.2148 cm)
Shipping Weight 16.50 lbs (7.48 kgs)
Atlas Sound PM8FA-WH 8 2-Way Pendant Mount Speaker with 60W 70.7V Transformer, White
