Atlas Sound PM4FA-B 4" 25W Pendant-Mount Speaker with 16W Transformer (Black)

SKU: PM4FAW
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n\n\n\n Ideal for music and paging applications\n\n\n\n\n\n\n\n\n 4" FA134 driver with a coaxially mounted PEI dome tweeter\n\n\n\n\n\n\n\n\n Integrated transformer with 70.7V taps at 1W, 2W, 4W, 8W, and 16W, plus an 8-Ohm direct input\n\n\n\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote




  • Ideal for music and paging applications









  • 4" FA134 driver with a coaxially mounted PEI dome tweeter









  • Integrated transformer with 70.7V taps at 1W, 2W, 4W, 8W, and 16W, plus an 8-Ohm direct input






  • Passive, Non-Shielded Design

  • 4" Woofer & Coaxially Mounted Tweeter

  • 25W Power Rating

  • Integrated Multi-Tap Transformer

  • For 70.7V, 100V, or 8-Ohm Power Amps

  • 70 Hz to 20 kHz Frequency Response

  • Bass-Reflex Enclosure

  • Press-Fit Aluminum Grille

  • Concealed Terminal Block

  • Includes Cable Kit & Mounting Hardware

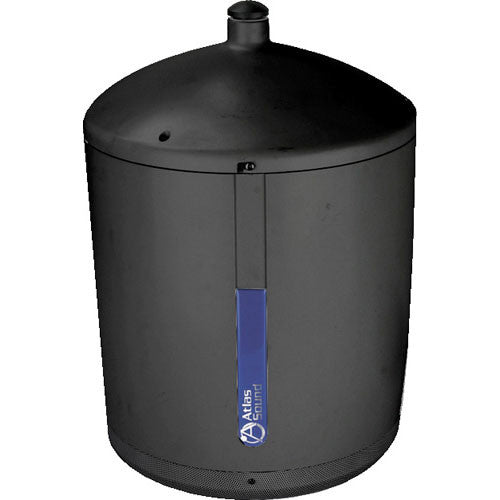

The black Atlas Sound PM4FA-B is a passive, non-shielded, pendant-mount speaker optimized for music and paging applications in shopping centers, transportation stations, warehouses, and more. An integrated multi-tap transformer provides an array of power taps, and allows the PM4FA-B to be used with 70.7V, 100V, or 8-Ohm power amplifiers (available separately). The 4" woofer and coaxially mounted tweeter offer a frequency response of 70 Hz to 20 kHz and a 25W power rating.

Is This Right For You?


Recommendation


Atlas Sound PM4FA-B 4 25W Pendant-Mount Speaker with 16W Transformer (Black) 1
Atlas Sound

Atlas Sound PM4FA-B 4" 25W Pendant-Mount Speaker with 16W Transformer (Black)

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Speaker Type</td>
<td>Coaxial</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>88dB Average</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>70Hz - 20kHz</td>
</tr>
<tr>
<td>Impedance</td>
<td>1, 2, 4, 8, 16 Watts and 8Ω</td>
</tr>
<tr>
<td>Dispersion</td>
<td>130°</td>
</tr>
<tr>
<td>8Ω RMS Power</td>
<td>25 Watts</td>
</tr>
<tr>
<td>Diameter</td>
<td>9 1/4" (23.495 cm)</td>
</tr>
</tbody>
</table>
</div>
