Product Summary


  • 15-Watt High Efficiency Compression Driver

  • 5 mfd Capacitor for Line Supervision

  • Built-In Vari-Tap® Transformer for Easy Impedance Selection

  • Omni-Purpose Surface Mounting Bracket For Precise Positioning

  • Recommended for High Intelligibility Paging, Intercommunication, and Signaling

  • Vandal-Resistant, Weatherproof Construction

  • UL Certified, Safety Listed to UL1480


Model AP-15TUC is a double re-entrant speakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency. The AP-15 Series operates within a nominal frequency response range of 400Hz - 14kHz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars. A built-in, 5 mfd capacitor is provided for line supervision. All models meet or exceed the UL Listed standards for audible signal appliances, standard 1480—Speakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19). AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

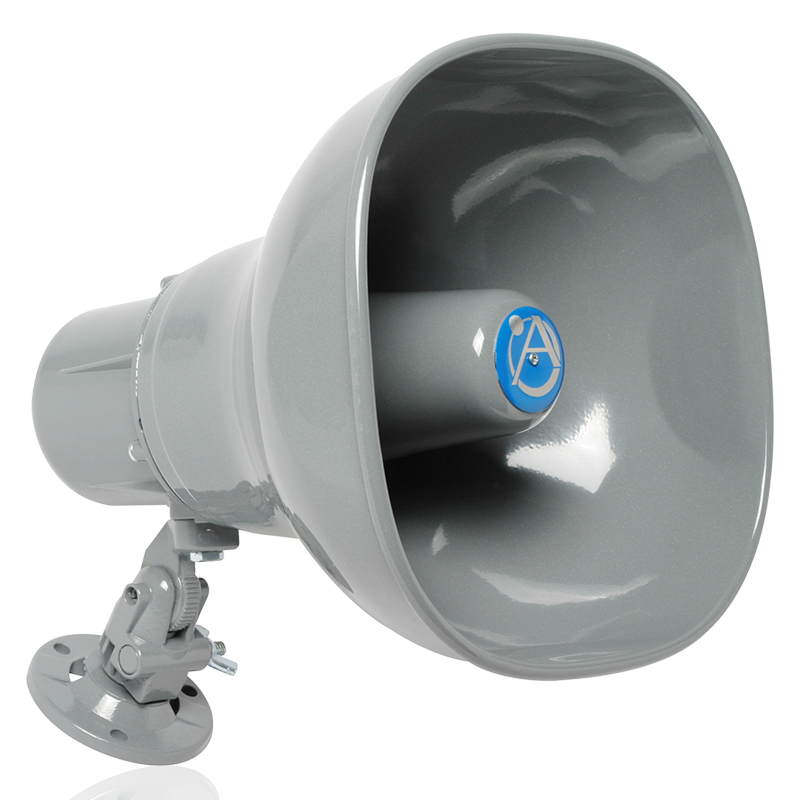

Atlas sound Emergency Signaling Horn Loudspeaker with 15-Watt 25V/70V Transformer and Line Supervision Capability AP-15TUC

SKU: AP15TUC | UPC: 612079110407
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$198.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas sound Emergency Signaling Horn Loudspeaker with 15-Watt 25V/70V Transformer and Line Supervision Capability AP-15TUC $198.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>15-Watt High Efficiency Compression Driver</li>\n <li>5 mfd Capacitor for Line Supervision</li>\n <li>Built-In Vari-Tap® Transformer for Easy Impedance Selection</li>\n <li>Omni-Purpose Surface Mounting Bracket For Precise Positioning</li>\n <li>Recommended for High Intelligibility Paging, Intercommunication, and Signaling</li>\n <li>Vandal-Resistant, Weatherproof Construction</li>\n <li>UL Certified, Safety Listed to UL1480</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Frequency Response 400Hz - 14kHz
Sensitivity 106dB
Power Taps 1, 2, 3.8, 7.5, 15W @ 70.7V
Dispersion 70°
Operating Temperature Range -40 to 70C
Height 8 3/4" (22.22 cm)
Width 7 7/8" (20.00 cm)
Depth 9 5/16" (23.66 cm)
Shipping Weight 5.00 lbs (2.27 kgs)
Operating Temperature Range -40C to 70C
Emergency Signaling Horn Loudspeaker with 15-Watt 25V70V Transformer and Line Supervision Capability
Atlas Sound

Atlas sound Emergency Signaling Horn Loudspeaker with 15-Watt 25V/70V Transformer and Line Supervision Capability AP-15TUC

$198.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Frequency Response</td>
<td>400Hz - 14kHz</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>106dB</td>
</tr>
<tr>
<td>Power Taps</td>
<td>1, 2, 3.8, 7.5, 15W @ 70.7V</td>
</tr>
<tr>
<td>Dispersion</td>
<td>70°</td>
</tr>
<tr>
<td>Operating Temperature Range</td>
<td>-40 to 70C</td>
</tr>
<tr>
<td>Height</td>
<td>8 3/4" (22.22 cm)</td>
</tr>
<tr>
<td>Width</td>
<td>7 7/8" (20.00 cm)</td>
</tr>
<tr>
<td>Depth</td>
<td>9 5/16" (23.66 cm)</td>
</tr>
<tr>
<td>Shipping Weight</td>
<td>5.00 lbs (2.27 kgs)</td>
</tr>
<tr>
<td>Operating Temperature Range</td>
<td>-40C to 70C</td>
</tr>
</tbody>
</table>
</div>
