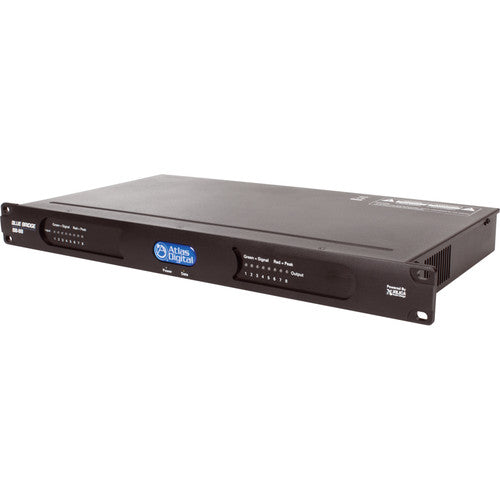

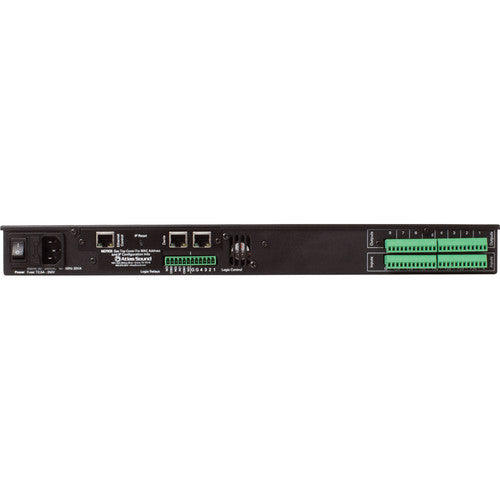

Atlas Sound BB88 BlueBridge 8 Input / 8 Output DSP Audio Processor
Atlas Sound BB88 BlueBridge 8 Input / 8 Output DSP Audio Processor is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
Dimensions | L x W x D: 1.8 x 19.0 x 9.0" (4.4 x 48.2 x 22.9 cm) |
Input Type | Microphone or Line, Software Selectable |
Input Gain | -40 to +15 dB in 0.25 dB Steps |
Phantom Power | 48 V, Software Enabled |
Output Type | Line |
Output Gain | -40 to +15 dB in 0.25 dB steps |
Output Impedance | 50 ohms |
Processor | 40-bit Floating Point |
Sampling Rate | 48 kHz |
Power Requirements | 90 - 240 VAC (50-60 Hz) |
Digital to Analog Converter | High Performance 24-bit |
DUNS #074303253
IRS W-9 form
- Atlas Sound BlueBridge 8 Input / 8 Output DSP Audio Processor
- Limited 3-Year Warranty
Dimensions | L x W x D: 1.8 x 19.0 x 9.0" (4.4 x 48.2 x 22.9 cm) |
Input Type | Microphone or Line, Software Selectable |
Input Gain | -40 to +15 dB in 0.25 dB Steps |
Phantom Power | 48 V, Software Enabled |
Output Type | Line |
Output Gain | -40 to +15 dB in 0.25 dB steps |
Output Impedance | 50 ohms |
Processor | 40-bit Floating Point |
Sampling Rate | 48 kHz |
Power Requirements | 90 - 240 VAC (50-60 Hz) |
Digital to Analog Converter | High Performance 24-bit |
- Open architecture programmability
- THAT Corp microphone preamps
- Ethernet network connectivity
- TCP/IP third party control capability
- Low noise floor
- Four logic inputs/outputs
- 48 kHz, 40-bit floating DSP engine
- EQ modules include parametric, graphic, and anti-feedback
Introducing the Atlas Sound BB88 BlueBridge 8 Input / 8 Output DSP Audio Processor, a cutting-edge platform designed specifically for sound reinforcement and AV applications. This powerful DSP processor offers a range of advanced features and capabilities to enhance audio performance in various environments.
With its audio and Ethernet connectivity, the BlueBridge DSP Audio Processor allows for seamless integration with TCP/IP third-party control systems, enabling flexible control and programmability. The processor utilizes high-quality microphone preamps from THAT Corporation and 24-bit converters to achieve a low noise floor, ensuring pristine audio quality.
Equipped with a 40-bit floating point DSP engine, the processor effectively prevents digital clipping while delivering maximum processing speed and power for handling complex system designs and advanced algorithms. It operates flawlessly on any network, and upon connection, the processor is instantly recognized and controllable.
The BlueBridge DSP Audio Processor offers a comprehensive set of processing capabilities, including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and more. These features enable precise audio control and optimization, allowing users to tailor the sound to their specific requirements.
Designed with versatility in mind, this UL-rated processor is ideal for a wide range of applications, such as houses of worship, restaurants, presentation and conference rooms, courtrooms, and any other spaces that demand superior sound reinforcement and AV performance.
Experience the power and flexibility of the BlueBridge 8 Input / 8 Output DSP Audio Processor and elevate your audio system to new heights. With its advanced features, seamless connectivity, and exceptional audio processing capabilities, this processor is the perfect solution for achieving outstanding sound quality in diverse applications.
