Product Summary
























































































Inputs 16
Safety Listed Listed to UL60005
Outputs 16
Input Type Microphone or Line, Software Selectable
Output Type Line
RAID 40-Bit Floating Point
Analog Converters High Performance 24-Bit
Phantom Power 48V, Software Enabled
Input Impedance >10kΩ
Dynamic Range 110dB Type (Unweighted)
Latency 5ms
CMRR >100dB (50Hz-10khz)
Distortion 0.002% (1kHz @ +4dBu)
Configuration Electronically Balanced Gain -100 to +15dB in 0.25dB Steps
Power Consumption 18.5W
Polarity +/-, GUI Selectable
Frequency Response 20Hz - 20kHz
Height 1.75" (44mm)
Width 19"
Depth 9" (229mm)
Weight 7.2 lbs / 3.25 kg


  • 16 Input / 16 Output Configuration

  • Open Architecture Programmability

  • High Quality THAT® Corp Microphone Preamps

  • Ethernet Network Connectivity

  • TCP/IP Third Party Control Capability

  • Ultra Low Noise Floor

  • Four Logic Inputs/Outputs

  • 48kHz, 40 Bit Floating DSP Engine

  • Safety Listed to UL60065

  • EQ Modules: Parametric, Graphic, and Anti-Feedback


Atlas Sound BB1616 BlueBridge 16 Input / 16 Output DSP Audio Processor offer powerful and flexible solutions to meet the specific requirements of any installation. Designed with meticulous attention to quality, these devices incorporate top-of-the-line internal components to deliver pristine audio performance. With built-in Ethernet connectivity, they enable cost-effective TCP/IP control and straightforward programmability. The versatility of BlueBridge® DSP platforms makes them suitable for a wide range of audio applications, including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and other sound reinforcement and AV applications.

The hallmark of the BlueBridge® family is its user-friendly, open architecture design, complemented by intuitive drag-and-drop software. This makes operating these devices remarkably easy, allowing system designers to achieve the desired outcomes effortlessly. Featuring high-quality THAT® microphone preamps and 24-bit converters, each model ensures an ultra-low noise floor while delivering a smooth, satisfying sound that meets the demands of discerning clients. The use of a 40-bit Floating Point DSP engine sets BlueBridge® models apart from other DSP products by eliminating digital clipping and enabling speedy and powerful processing for complex system designs. While BlueBridge® DSP units can be networked using any network infrastructure, optional control accessories require a PoE switch. However, these devices can still be utilized in scenarios where network control is unnecessary or unavailable, such as live speech applications. When connected to a network, each BlueBridge® processor on the network is automatically recognized and can be controlled seamlessly.

The BlueBridge® models offer a comprehensive suite of processing tools, including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and numerous other capabilities. This extensive range of features empowers users to fine-tune audio settings and optimize the sound output according to their specific requirements. Whether it's achieving a balanced audio mix, enhancing speech intelligibility, or creating immersive soundscapes, BlueBridge® DSP devices provide the necessary tools to deliver exceptional audio experiences.

In summary, AtlasIED's BlueBridge® networkable DSP devices combine cutting-edge technology, ease of use, and a wide array of processing capabilities to offer cost-effective and high-performance solutions for demanding audio applications.

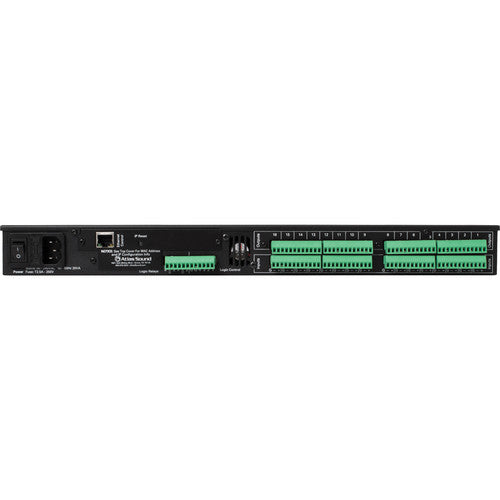

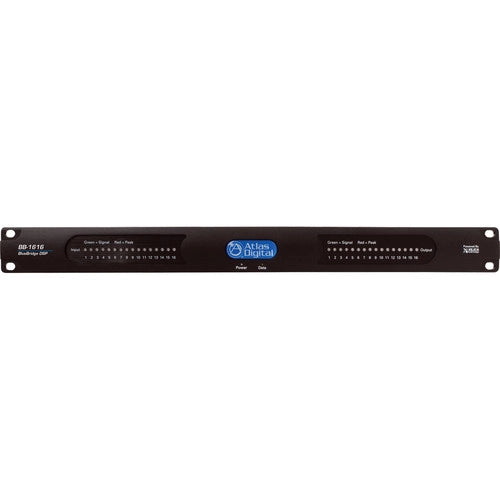

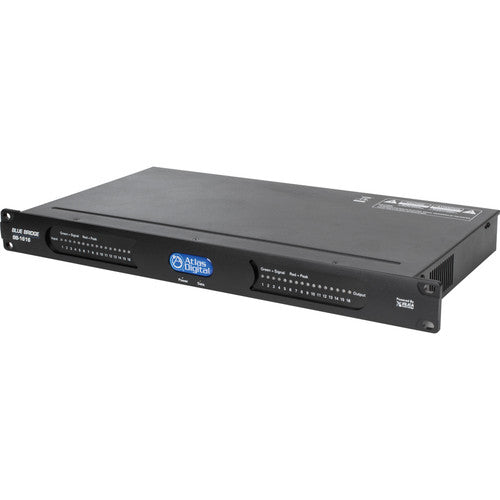

Atlas Sound BB1616 BlueBridge 16 Input / 16 Output DSP Audio Processor

SKU: BB1616 | UPC: 612079189410
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$5,767.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound BB1616 BlueBridge 16 Input / 16 Output DSP Audio Processor $5,767.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <table>\n<tbody>\n<tr>\n<td>Inputs</td>\n<td>16</td>\n</tr>\n<tr>\n<td>Safety Listed</td>\n<td>Listed to UL60005</td>\n</tr>\n<tr>\n<td>Outputs</td>\n<td>16</td>\n</tr>\n<tr>\n<td>Input Type</td>\n<td>Microphone or Line, Software Selectable</td>\n</tr>\n<tr>\n<td>Output Type</td>\n<td>Line</td>\n</tr>\n<tr>\n<td>RAID</td>\n<td>40-Bit Floating Point</td>\n</tr>\n<tr>\n<td>Analog Converters</td>\n<td>High Performance 24-Bit</td>\n</tr>\n<tr>\n<td>Phantom Power</td>\n<td>48V, Software Enabled</td>\n</tr>\n<tr>\n<td>Input Impedance</td>\n<td>&gt;10kΩ</td>\n</tr>\n<tr>\n<td>Dynamic Range</td>\n<td>110dB Type (Unweighted)</td>\n</tr>\n<tr>\n<td>Latency</td>\n<td>5ms</td>\n</tr>\n<tr>\n<td>CMRR</td>\n<td>&gt;100dB (50Hz-10khz)</td>\n</tr>\n<tr>\n<td>Distortion</td>\n<td>0.002% (1kHz @ +4dBu)</td>\n</tr>\n<tr>\n<td>Configuration Electronically Balanced Gain</td>\n<td>-100 to +15dB in 0.25dB Steps</td>\n</tr>\n<tr>\n<td>Power Consumption</td>\n<td>18.5W</td>\n</tr>\n<tr>\n<td>Polarity</td>\n<td>+/-, GUI Selectable</td>\n</tr>\n<tr>\n<td>Frequency Response</td>\n<td>20Hz - 20kHz</td>\n</tr>\n<tr>\n<td>Height</td>\n<td>1.75" (44mm)</td>\n</tr>\n<tr>\n<td>Width</td>\n<td>19"</td>\n</tr>\n<tr>\n<td>Depth</td>\n<td>9" (229mm)</td>\n</tr>\n<tr>\n<td>Weight</td>\n<td>7.2 lbs / 3.25 kg</td>\n</tr>\n</tbody>\n</table>
