Product Summary


  • Individually Packaged for Stocking & Ordering Convenience

  • Safety Listed to UL 1480 & UL 2043

  • Industry Standard 8" (203mm) Coaxial, 16 Watt, Loudspeaker with High Quality Factory Installed 8 Watt Line Matching Transformer

  • Offers Proven Performance with Wide Frequency Response

  • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance



  • Individually Packaged for Stocking & Ordering Convenience

  • Safety Listed to UL 1480 & UL 2043

  • Industry Standard 8" (203mm) Coaxial, 16 Watt, Loudspeaker with High Quality Factory Installed 8 Watt Line Matching Transformer

  • Offers Proven Performance with Wide Frequency Response

  • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance

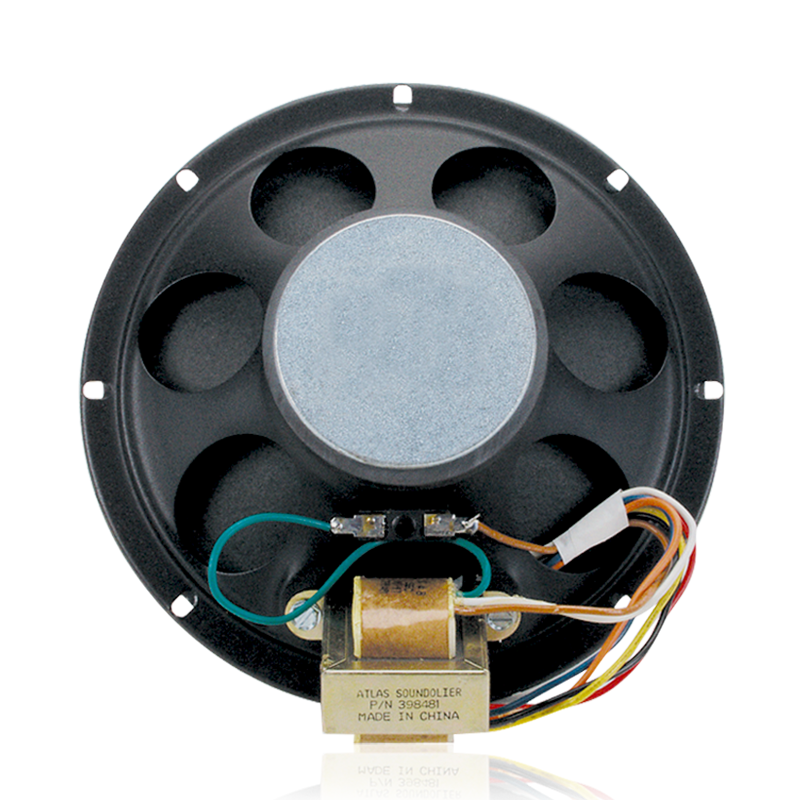

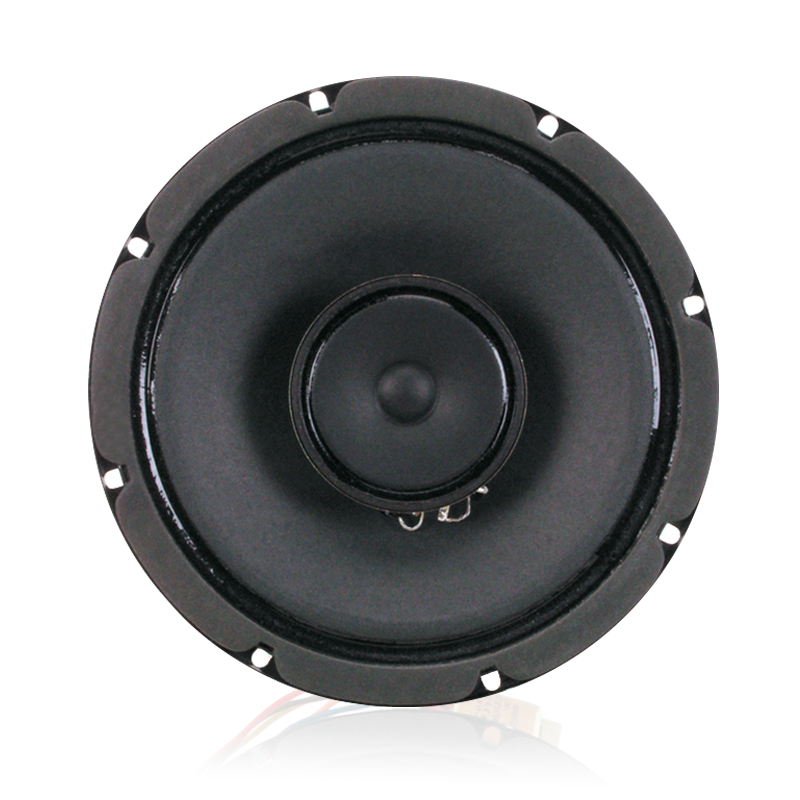

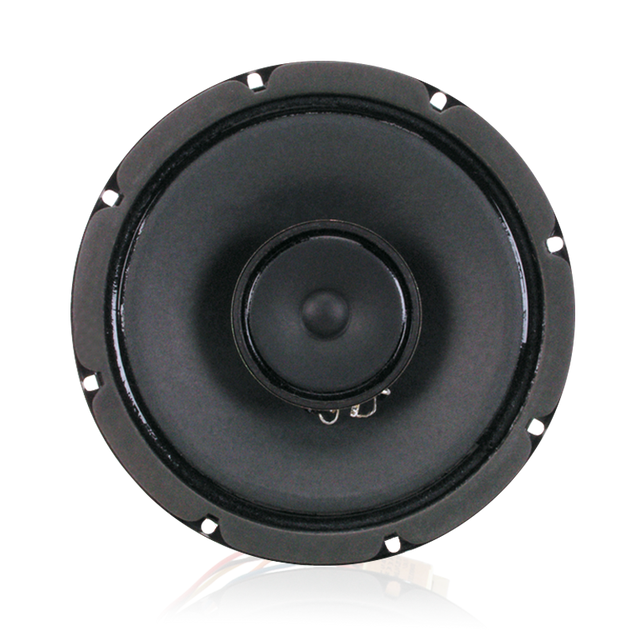

The GD87 is a high performance coaxial speaker with performance specifications identical to the legendary AtlasIED Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87 without any noticeable sonic or performance differences. The high-quality, 16 watt Model GD87 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 45Hz - 19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105° (2kHz octave band). The GD87 combines a full-size 8" (203mm) dia., low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1m). The speaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz - 15kHz. The primary taps are 1, 2, 4, and 8 watts.

Atlas Sound 8" In-Ceiling Coaxial Speaker with 8-Watt 70.7V Transformer GD87

SKU: GD87 | UPC: 612079179978
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$63.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 8" In-Ceiling Coaxial Speaker with 8-Watt 70.7V Transformer GD87 $63.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Individually Packaged for Stocking &amp; Ordering Convenience</li>\n <li>Safety Listed to UL 1480 &amp; UL 2043</li>\n <li>Industry Standard 8" (203mm) Coaxial, 16 Watt, Loudspeaker with High Quality Factory Installed 8 Watt Line Matching Transformer</li>\n <li>Offers Proven Performance with Wide Frequency Response</li>\n <li>Post-Mounted Tweeter Adds Strength and a More Attractive Appearance</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Treated Paper
Sensitivity 96dB Average
Frequency Response 55Hz - 15kHz
Power Taps 1, 2, 4, & 8 Watts
Dispersion 105° (2kHz Octave Band, -6dB Points)
Diameter 8 1/8" (20.6375 cm)
Safety Listed 1480, 2043
