Atlas Sound 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer in Black or White SM82HFDRV

Speaker Type	Surface Mount
Sensitivity	92dB
Power Taps	1.9, 3.8, 7.5, 15, 30, 60 & 8Ω bypass
Height	16 1/2" (41.9 cm)
Width	9 1/16" (23.0 cm)
Depth	8 7/16 (21.4 cm)
Shipping Weight	20.00 lbs (9.07 kgs)

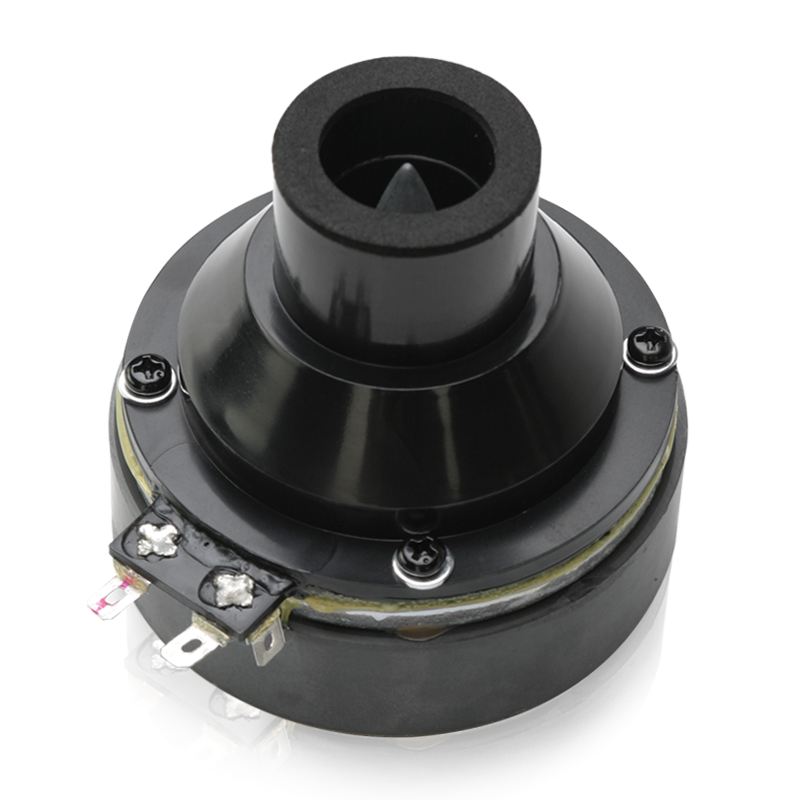

• 1" Exit Titanium High Frequency Compression Driver


• UL1480A Listed


• All ¼"-20 Hardware Inserts Allow Easy Integration of "Off-the-Shelf" Security Hardware


• Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage


• Compact, 2-way Loudspeaker Systems for Exceptional Performance in Music and Sound Reinforcement Systems


• Conforms to 100HR Salt Spray Test per ASTM B117


• Highly Efficient 8" HYCONET Treated Woofer

Introducing the SM Series speaker systems from AtlasIED, a range of environment-resistant speakers that combine exceptional sound reproduction with contemporary styling, all packed into a compact enclosure. Designed to meet the highest standards of audio performance, these speakers are equipped with advanced components to deliver clear and immersive sound.

The system components of the SM Series include a highly efficient woofer section and a 1" exit high frequency compression driver. This combination ensures excellent vocal and musical clarity, allowing every detail of the audio to be reproduced faithfully. To further enhance the sound quality, the SM Series speakers feature the innovative AtlasIED TRX Control WaveGuide high frequency director. This mathematically conceived design optimizes the dispersion of high frequencies, providing smooth and even sound coverage with a horizontal and vertical dispersion of 65°.

The high frequency section of the speakers is symmetrical, ensuring equal coverage in both vertical and horizontal mounting positions. This versatility allows for flexible installation options and consistent sound distribution throughout the desired area. Additionally, the high frequency components are protected by the AtlasIED PolyGuard protection circuit, safeguarding them against damage and ensuring long-lasting performance.

The SM82T model, in particular, includes an internally mounted 60-watt 70.7V/100V line matching transformer with an 8Ω bypass. This transformer offers compatibility with distributed sound systems and allows for easy adjustment of tap selection using a screwdriver. This feature makes the SM82T ideal for applications where distributed sound is required, such as in commercial spaces or public venues.

To withstand the rigors of outdoor environments, the Strategy Series SM82T surface mount speakers are constructed using weather-resistant materials. The cabinets are made of UV-resistant, talc impregnated, polypropylene injection molded material, ensuring durability and protection against harsh elements. The woofer cones are also crafted from polypropylene, further enhancing their resistance to environmental conditions. Additionally, the speakers feature powder-coated aluminum grilles and all-brass hardware, adding to their overall ruggedness and longevity.

Whether you need high-quality sound reinforcement for outdoor events, commercial installations, or public spaces, the SM Series speakers deliver exceptional audio performance in a compact and weather-resistant design. With their contemporary styling and advanced features, these speakers are sure to elevate your sound experience while seamlessly blending into any environment. Trust AtlasIED to provide you with reliable and stylish speakers that exceed your expectations.
