Atlas Sound 6" Coaxial In-Ceiling Speaker with 4-Watt 70V Transformer FA136T47

SKU: FA136T47  |  UPC: 612079113361
$78.99
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion\n Front Loads into Specially Designed, Acoustically Matched Enclosure\n Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles\n Patented, Easy-to-Install Loudspeaker Mounting System\n Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion

  • Front Loads into Specially Designed, Acoustically Matched Enclosure

  • Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles

  • Patented, Easy-to-Install Loudspeaker Mounting System

  • Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs


Model FA136T47 is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assembly is manufactured with highquality materials including a Kevlar®, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferro fluid-cooled voice coil for smooth response and excellent power handling capability.

Is This Right For You?


Recommendation

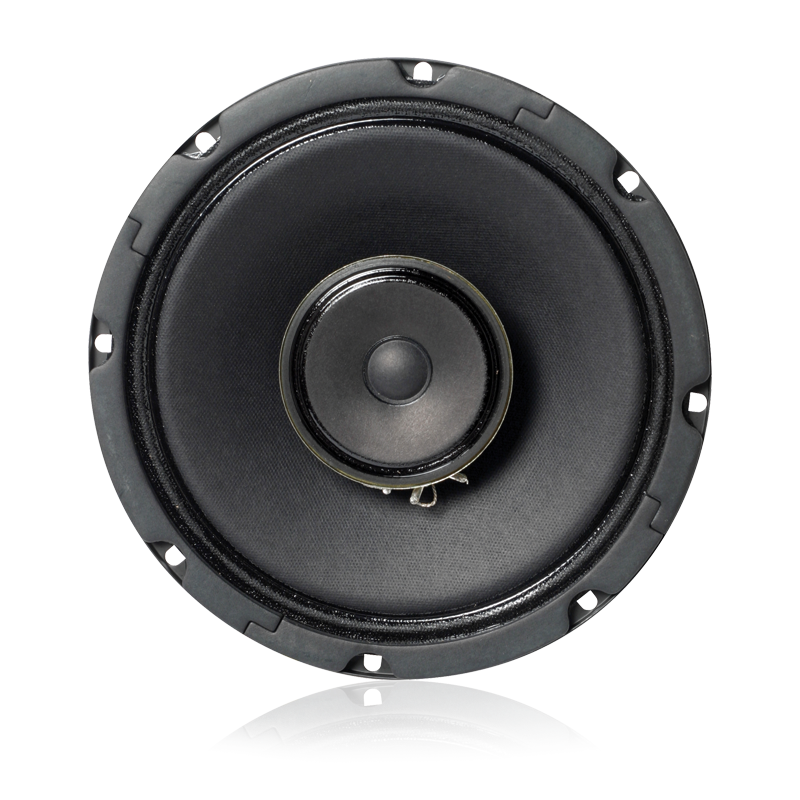

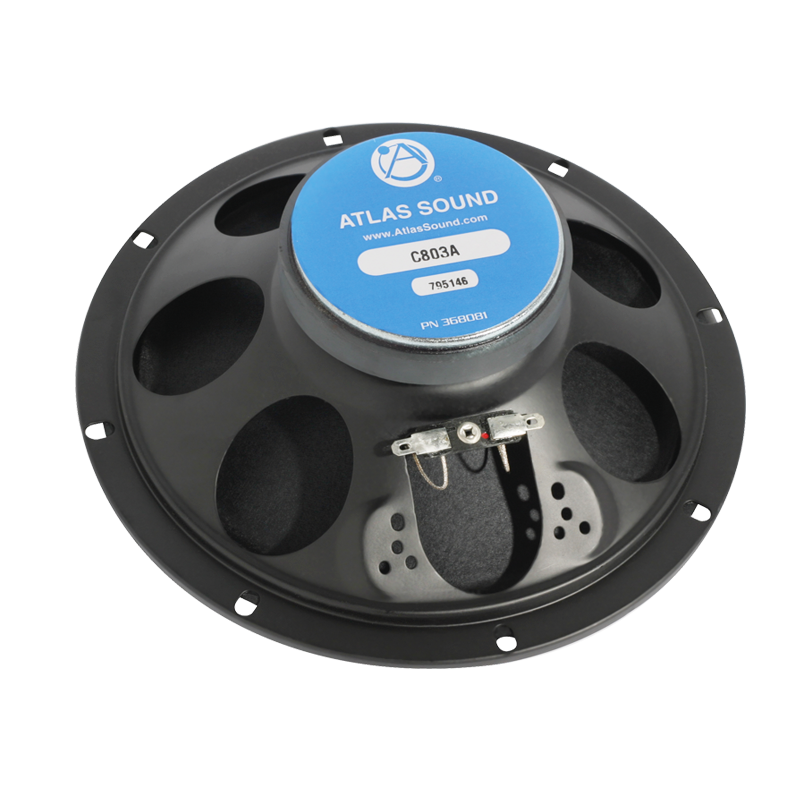

8 In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer
Atlas Sound

Atlas Sound 6" Coaxial In-Ceiling Speaker with 4-Watt 70V Transformer FA136T47

$78.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Speaker Type</td>
<td>Coaxial</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>88dB Average, 91dB Peak</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>80Hz - 20kHz</td>
</tr>
<tr>
<td>Power Taps</td>
<td>.5, 1, 2, 4 Watts</td>
</tr>
<tr>
<td>Dispersion</td>
<td>130°</td>
</tr>
<tr>
<td>Depth</td>
<td>5 1/8" (13.0175 cm)</td>
</tr>
<tr>
<td>Diameter</td>
<td>6 9/16" (16.67002 cm)</td>
</tr>
<tr>
<td>Shipping Weight</td>
<td>3.67 lbs (1.66 kgs)</td>
</tr>
<tr>
<td>Safety Listed</td>
<td>1480</td>
</tr>
</tbody>
</table>
</div>
