Atlas Sound 12" 2-Way Multipurpose Horn Speaker System 90° x 40° FS12T-94

SKU: FS12T94  |  UPC: 612079660681
$899.99
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons\n 400 Watts Power Handling\n Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 40 º Vertical (2kHz Octave Band)\n Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver\n Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker\n Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons

  • 400 Watts Power Handling

  • Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 40 º Vertical (2kHz Octave Band)

  • Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver

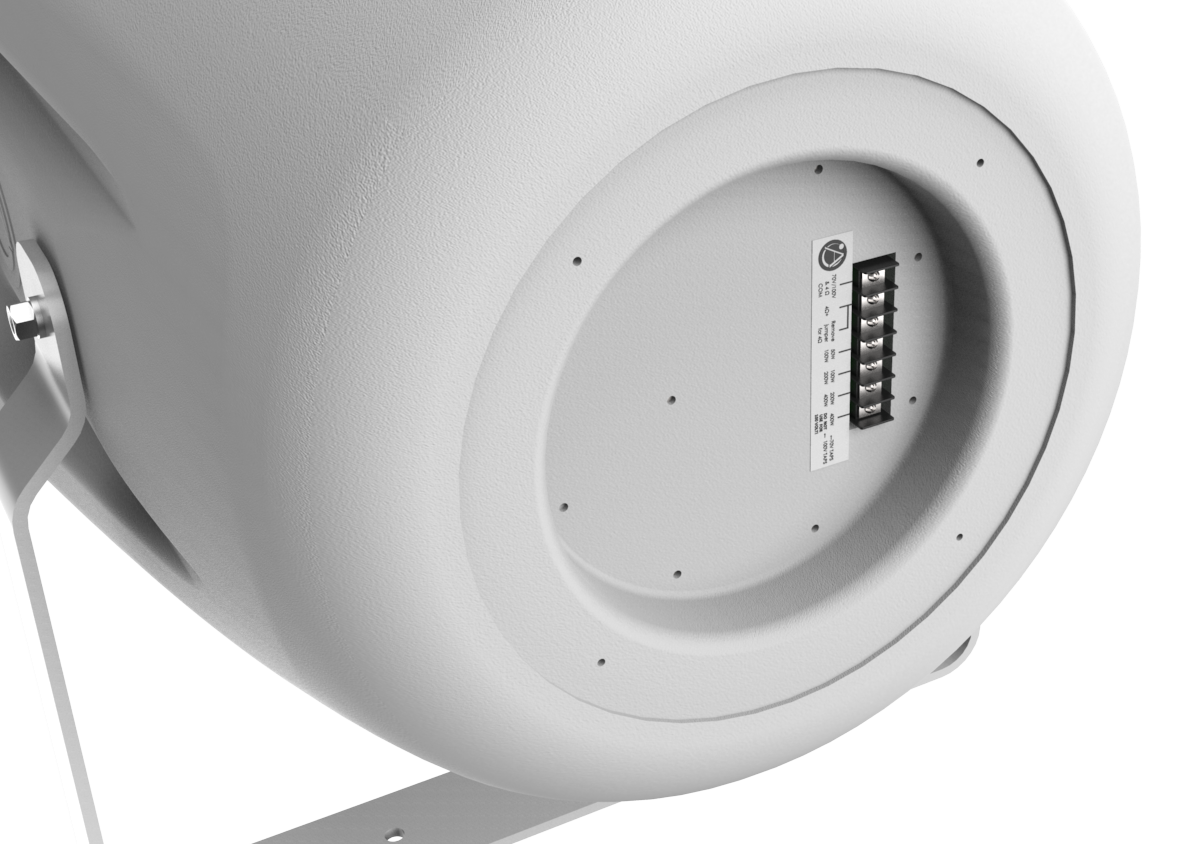

  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker

  • Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer

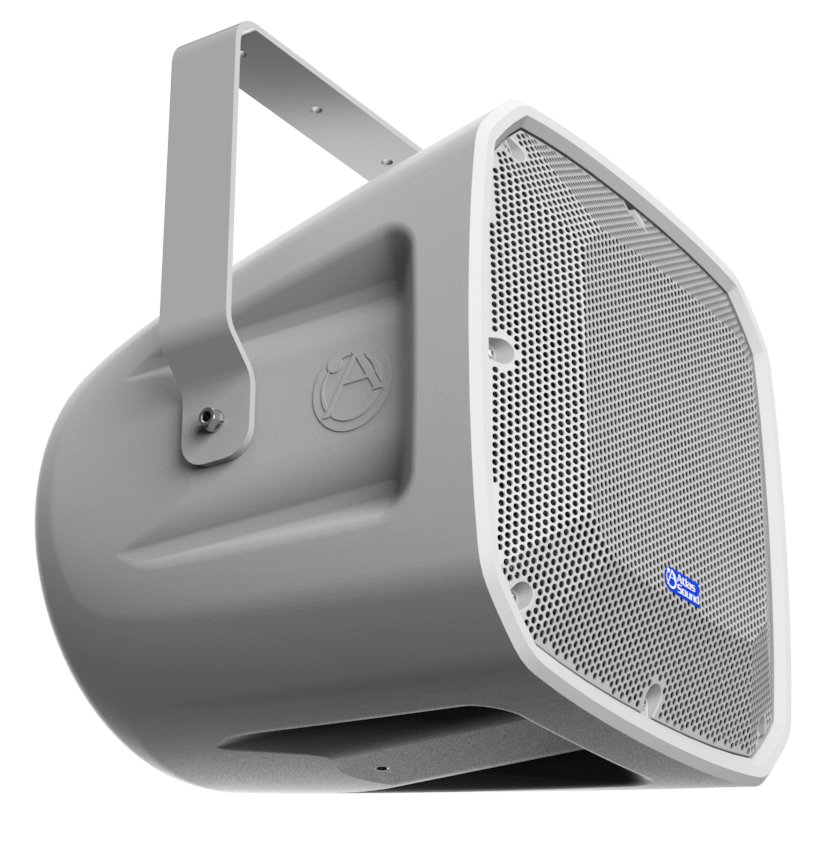

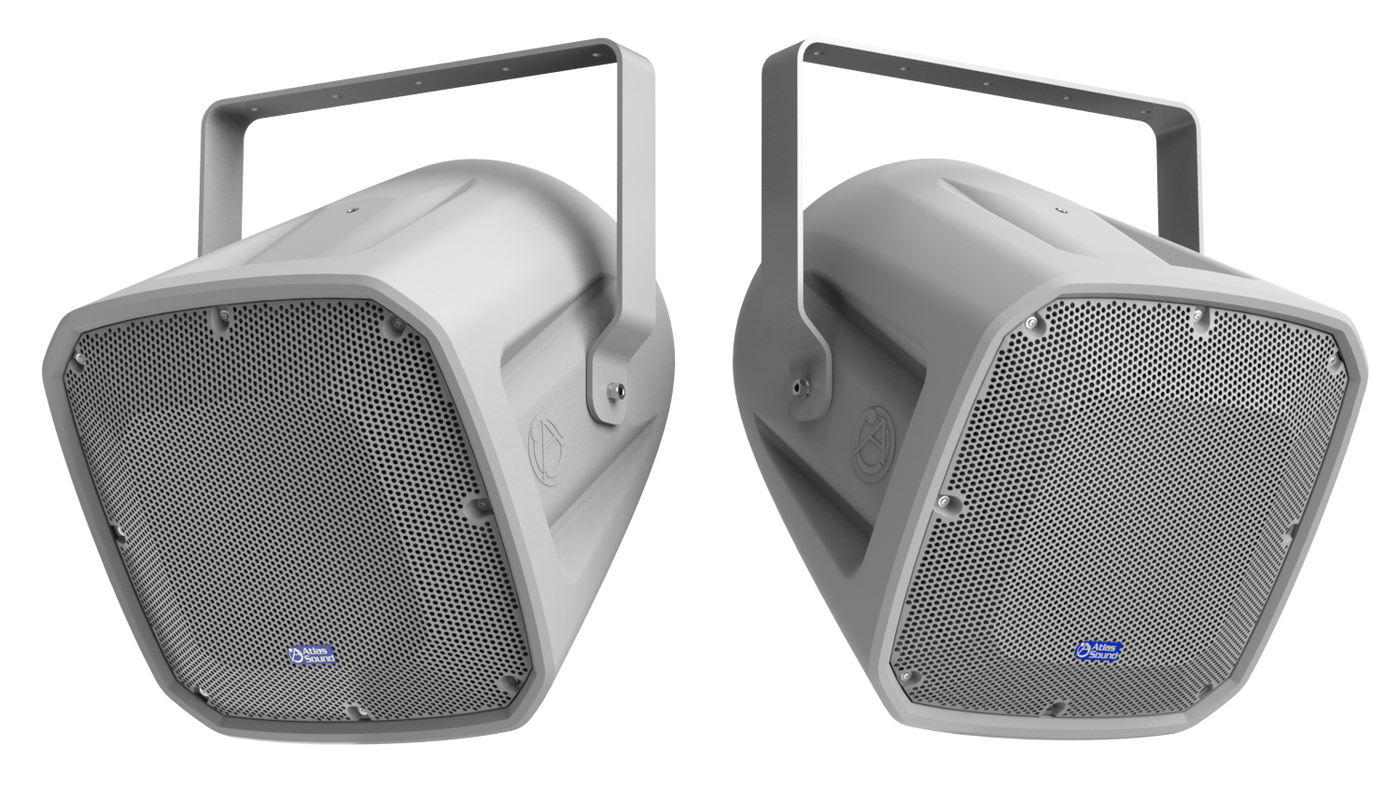

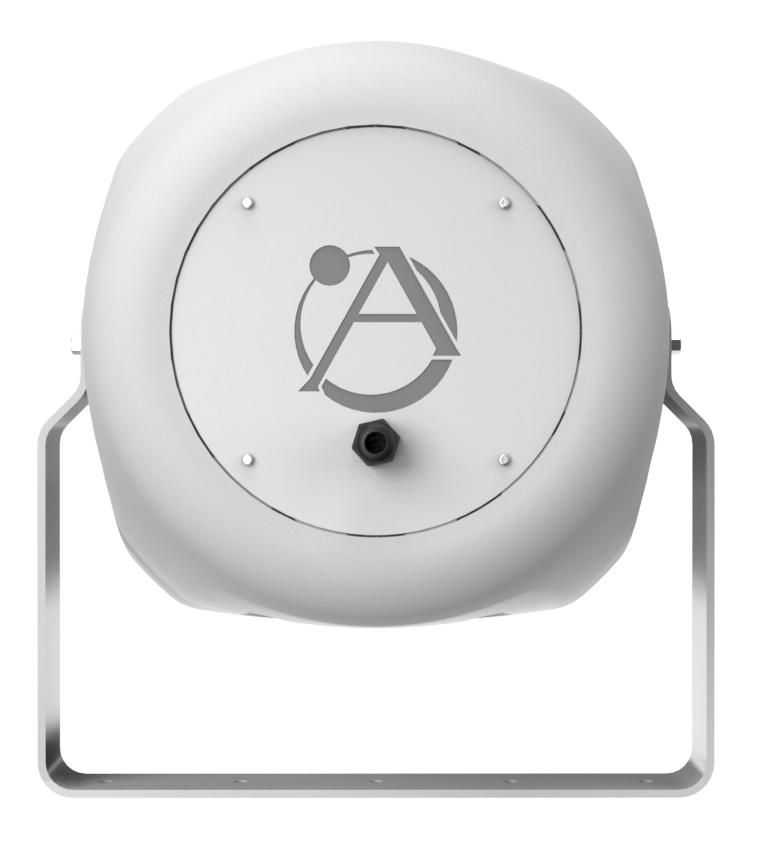

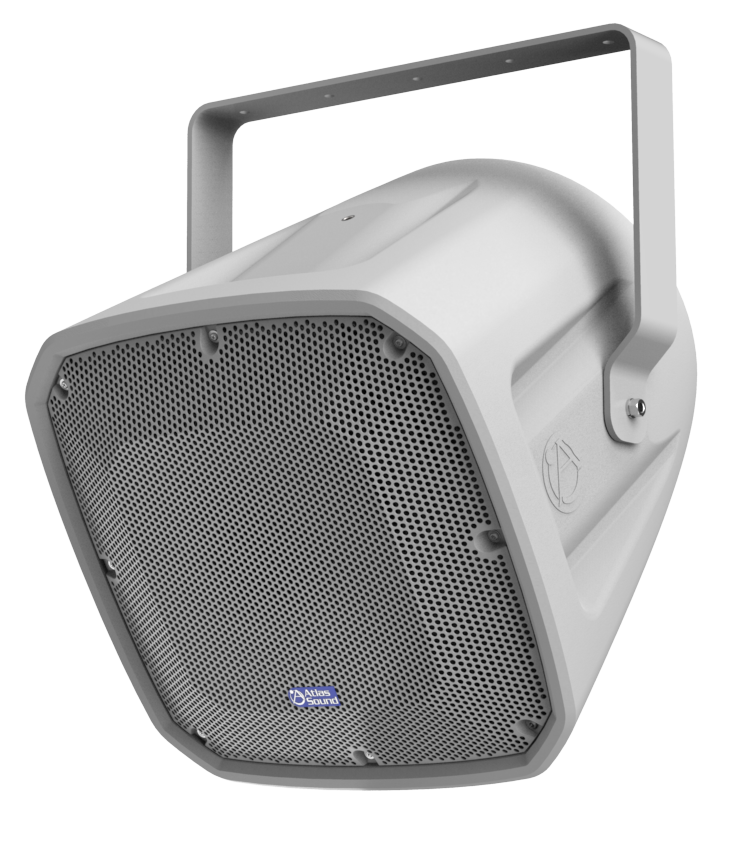

The FS12T-94 is two-way, full-range speaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability. It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 90° x 40° coverage and is tuned for optimal source reproduction. The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.

Is This Right For You?


Recommendation


Atlas Sound 12 2-Way Multipurpose Horn Speaker System 90° x 40° FS12T-94
Atlas Sound

Atlas Sound 12" 2-Way Multipurpose Horn Speaker System 90° x 40° FS12T-94

$899.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Power Taps</td>
<td>400, 200, 100, 50 Watts &amp; 4Ω bypass</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>102.5dB SPL</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>80Hz - 17.6kHz</td>
</tr>
<tr>
<td>Height</td>
<td>19.56" (49.78 cm)</td>
</tr>
<tr>
<td>Driver Type</td>
<td>1" HF and 12" LF</td>
</tr>
<tr>
<td>Depth</td>
<td>18.5" (46.9 cm)</td>
</tr>
<tr>
<td>Dispersion</td>
<td>90º H x 40º V</td>
</tr>
<tr>
<td>Environment</td>
<td>IP45</td>
</tr>
<tr>
<td>MAX SPL</td>
<td>128.5dB SPL</td>
</tr>
<tr>
<td>Width</td>
<td>18.5"(46.9 cm)</td>
</tr>
<tr>
<td>Weight</td>
<td>48.00 lbs (21.77 kgs)</td>
</tr>
<tr>
<td>Color</td>
<td>Pantone 423 C - RAL 7045</td>
</tr>
</tbody>
</table>
</div>
