Product Summary
ATEN VE1812 HDMI HDBaseT Extender with PoH
Extend high-quality HDMI video, control signals, and power across long distances with the ATEN VE1812 HDMI HDBaseT Extender with PoH. Designed for classrooms, conference rooms, digital signage, gaming environments, and professional AV installations, the VE1812 uses HDBaseT technology to extend HDMI over a single Cat 5e, Cat 6, or Cat 6a cable.
The VE1812 supports transmission distances of up to 100 meters, including 4K x 2K HDMI at up to 100 meters when using Cat 6a or ATEN 2L-2910 Cat 6 cable. For installations requiring even greater distance, HDBaseT Long Reach Mode extends 1080p signals up to 150 meters.
Integrated Power over HDBaseT (PoH) allows the transmitter to supply power to the receiver through the same category cable, eliminating the need for a separate receiver-side power supply. Bidirectional RS-232 and IR pass-through further simplify remote equipment control, making the VE1812 a versatile solution for professional AV signal extension.
HDBaseT Connectivity
The VE1812 uses HDBaseT technology to extend HDMI signals over a single Cat 5e, Cat 6, or Cat 6a cable.
Using standard category cabling helps simplify installation while providing the distance and reliability required for professional AV environments.
Up to 100-Meter Extension
For standard HDBaseT operation, the VE1812 can extend compatible HDMI signals across distances of up to 100 meters (328 feet).
This extended transmission range makes it possible to locate source equipment in equipment rooms, AV racks, control rooms, or other centralized locations while positioning the display where it is needed.
Long Reach Mode
For applications requiring additional distance, the VE1812 supports HDBaseT Long Reach Mode.
When enabled, Long Reach Mode can extend a 1080p HDMI signal up to 150 meters (492 feet) over compatible category cabling.
Up to 150 Meters at 1080p
The ability to reach 150 meters at 1080p makes the VE1812 well suited for large classrooms, conference facilities, auditoriums, commercial buildings, and other installations where the source and display are separated by significant distances.
4K x 2K HDMI Support
The VE1812 supports 4K x 2K HDMI video, providing the resolution capabilities required for high-quality professional AV installations.
This allows compatible high-resolution content to be transmitted between remotely located HDMI sources and displays.
4K Transmission Up to 100 Meters
When transmitting HDMI 4K x 2K signals using Cat 6a or ATEN 2L-2910 Cat 6 cable, the VE1812 supports transmission distances of up to 100 meters.
This provides substantial installation flexibility for professional 4K AV systems.
HDMI Compatibility
The VE1812 supports HDMI features including:
-
3D
-
Deep Color
-
4K x 2K video
This broad HDMI compatibility allows the extender to integrate with a variety of professional and commercial AV equipment.
HDCP Compatibility
Integrated HDCP compatibility supports transmission of protected digital content between compatible HDMI source and display devices.
Power over HDBaseT
The VE1812 features Power over HDBaseT (PoH), allowing power to be transmitted from the transmitter to the receiver through the same Cat 5e, Cat 6, or Cat 6a cable carrying the AV and control signals.
No Separate Receiver Power Supply Required
Because the VE1812T transmitter supplies power to the VE1812R receiver through the HDBaseT connection, an additional receiver-side power supply is not required.
This simplifies installation in locations where access to AC power near the display may be limited or inconvenient.
Single-Cable Installation
Combining HDMI extension, control capabilities, and receiver power over a single category cable helps reduce installation complexity.
Fewer cables can mean cleaner installations, easier cable management, and more flexibility when deploying displays in remote locations.
Bidirectional RS-232
The VE1812 incorporates a bidirectional RS-232 channel, allowing compatible serial communication to travel between the transmitter and receiver locations.
This provides additional control flexibility for professional AV installations.
Serial Device Integration
The RS-232 connection can be used with compatible serial terminals and devices such as:
-
Touchscreens
-
Barcode scanners
-
AV control systems
-
Other RS-232-equipped equipment
This makes the VE1812 suitable for interactive and centrally managed installations as well as straightforward video extension.
Bidirectional IR Extension
The VE1812 supports IR signal extension in both directions.
This allows equipment at either end of the HDBaseT connection to be remotely controlled from the opposite location when used with compatible IR equipment.
Remote Source Control
Operators at the VE1812R receiver location can control a compatible HDMI source located at the transmitter side.
This is useful when source equipment is installed in an AV rack, equipment closet, or another area away from the display.
Remote Display Control
The bidirectional IR architecture also allows compatible display equipment at the receiver side to be accessed from the VE1812T transmitter location.
This gives installers and operators greater control flexibility without requiring additional dedicated control cabling.
HDBaseT Anti-Jamming
The VE1812 incorporates HDBaseT anti-jamming technology designed to resist signal interference during high-quality video transmission.
This helps maintain reliable signal delivery across long cable runs in professional AV environments.

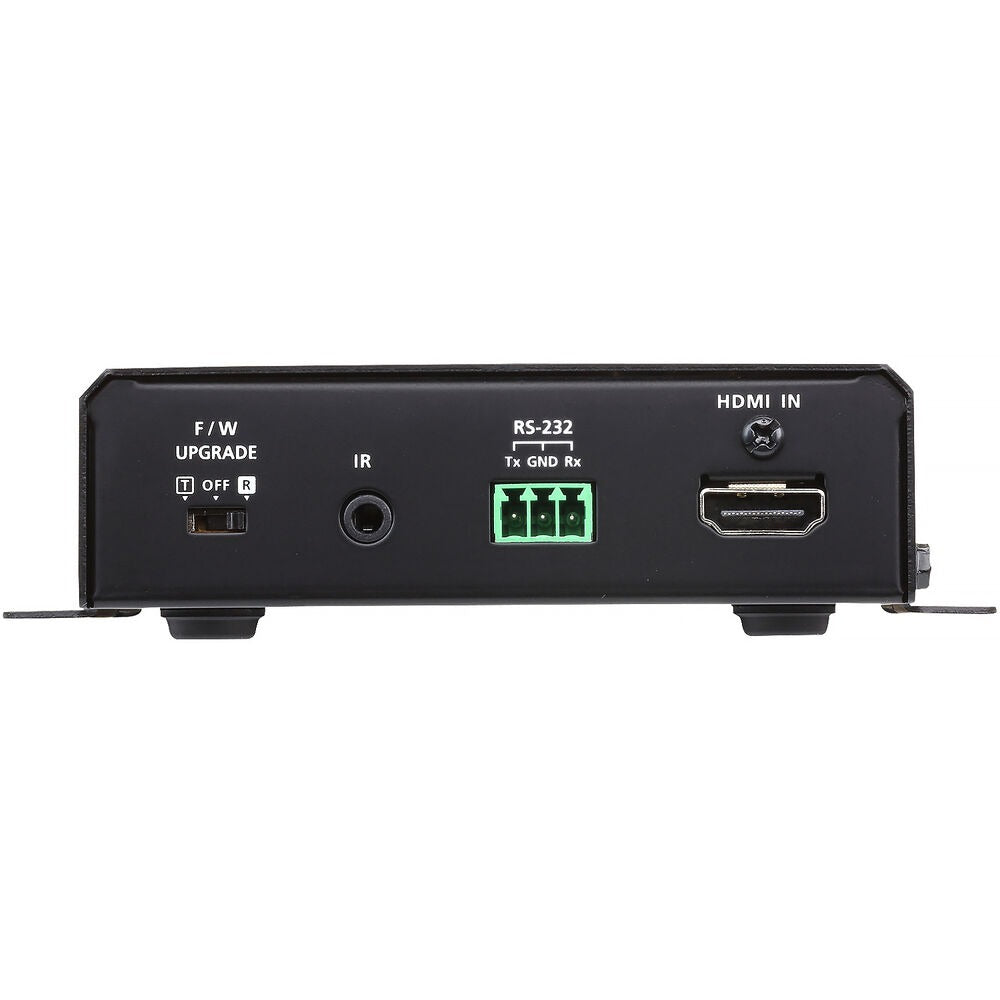

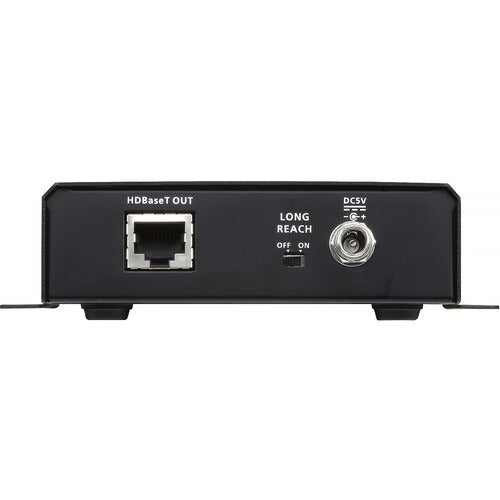

VE1812T Transmitter
The VE1812T transmitter connects to the HDMI source and sends the HDMI, control, and power signals across the HDBaseT cable.
Its PoH capability provides power to the remote receiver through the same category cable.
VE1812R Receiver
The VE1812R receiver is installed near the remote display and converts the incoming HDBaseT transmission back into the required HDMI and control connections.
Because it receives power through PoH, a separate local receiver power supply is unnecessary.
Designed for Digital Classrooms
The VE1812 is well suited for digital classrooms, where computers and other source equipment may be located away from projectors, interactive displays, or large-format monitors.
Long-distance transmission and remote control capabilities provide greater flexibility when designing educational AV systems.
Video Conference Room Integration
For conference and collaboration spaces, the VE1812 provides a streamlined method for connecting remotely located HDMI equipment to room displays.
Its combination of HDMI, RS-232, IR, and PoH over category cable helps reduce the amount of dedicated cabling required.
Professional AV Installations
The VE1812 can be incorporated into professional AV systems where reliable long-distance video and control transmission is essential.
Its HDBaseT architecture makes it suitable for installations where conventional HDMI cable lengths would be impractical.

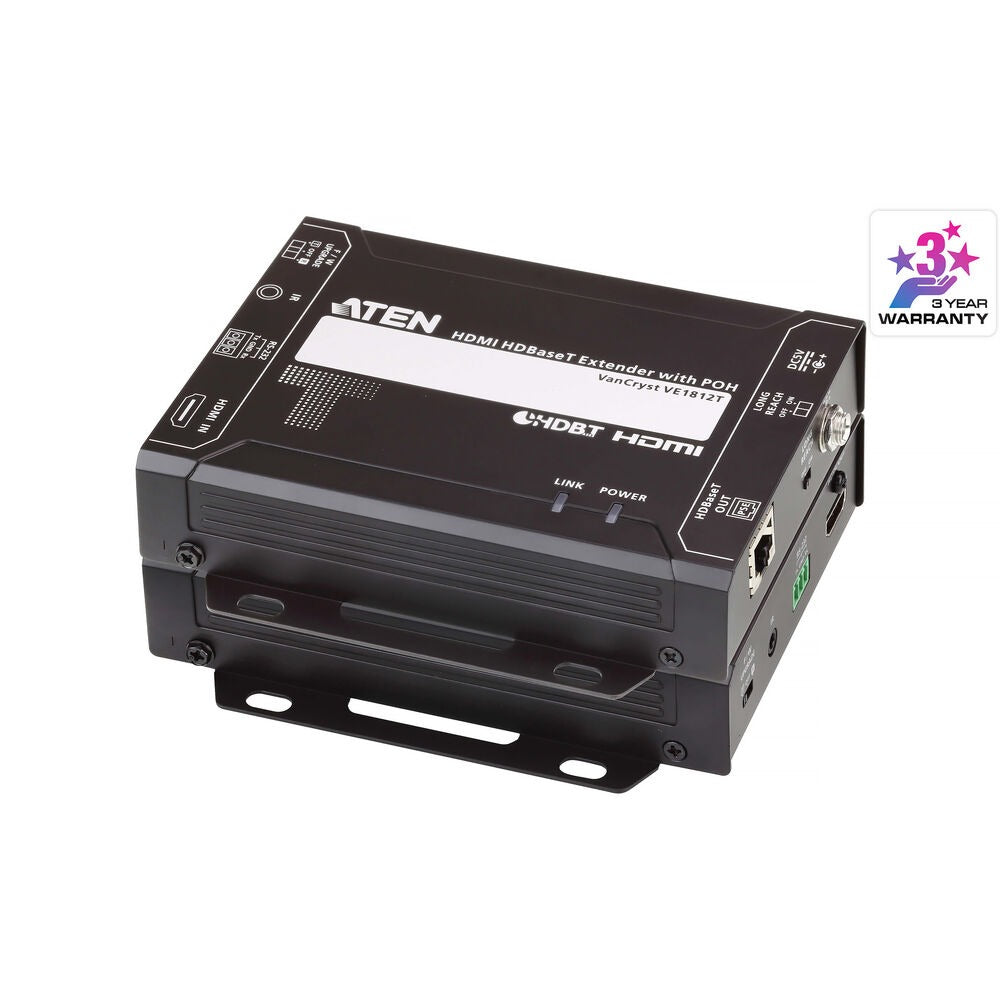

ATEN VE1812 HDMI HDBaseT Extender over CATx Cable with PoH (328')
$504.95
Product Description
ATEN VE1812 HDMI HDBaseT Extender with PoH
Extend high-quality HDMI video, control signals, and power across long distances with the ATEN VE1812 HDMI HDBaseT Extender with PoH. Designed for classrooms, conference rooms, digital signage, gaming environments, and professional AV installations, the VE1812 uses HDBaseT technology to extend HDMI over a single Cat 5e, Cat 6, or Cat 6a cable.
The VE1812 supports transmission distances of up to 100 meters, including 4K x 2K HDMI at up to 100 meters when using Cat 6a or ATEN 2L-2910 Cat 6 cable. For installations requiring even greater distance, HDBaseT Long Reach Mode extends 1080p signals up to 150 meters.
Integrated Power over HDBaseT (PoH) allows the transmitter to supply power to the receiver through the same category cable, eliminating the need for a separate receiver-side power supply. Bidirectional RS-232 and IR pass-through further simplify remote equipment control, making the VE1812 a versatile solution for professional AV signal extension.
HDBaseT Connectivity
The VE1812 uses HDBaseT technology to extend HDMI signals over a single Cat 5e, Cat 6, or Cat 6a cable.
Using standard category cabling helps simplify installation while providing the distance and reliability required for professional AV environments.
Up to 100-Meter Extension
For standard HDBaseT operation, the VE1812 can extend compatible HDMI signals across distances of up to 100 meters (328 feet).
This extended transmission range makes it possible to locate source equipment in equipment rooms, AV racks, control rooms, or other centralized locations while positioning the display where it is needed.
Long Reach Mode
For applications requiring additional distance, the VE1812 supports HDBaseT Long Reach Mode.
When enabled, Long Reach Mode can extend a 1080p HDMI signal up to 150 meters (492 feet) over compatible category cabling.
Up to 150 Meters at 1080p
The ability to reach 150 meters at 1080p makes the VE1812 well suited for large classrooms, conference facilities, auditoriums, commercial buildings, and other installations where the source and display are separated by significant distances.
4K x 2K HDMI Support
The VE1812 supports 4K x 2K HDMI video, providing the resolution capabilities required for high-quality professional AV installations.
This allows compatible high-resolution content to be transmitted between remotely located HDMI sources and displays.
4K Transmission Up to 100 Meters
When transmitting HDMI 4K x 2K signals using Cat 6a or ATEN 2L-2910 Cat 6 cable, the VE1812 supports transmission distances of up to 100 meters.
This provides substantial installation flexibility for professional 4K AV systems.
HDMI Compatibility
The VE1812 supports HDMI features including:
-
3D
-
Deep Color
-
4K x 2K video
This broad HDMI compatibility allows the extender to integrate with a variety of professional and commercial AV equipment.
HDCP Compatibility
Integrated HDCP compatibility supports transmission of protected digital content between compatible HDMI source and display devices.
Power over HDBaseT
The VE1812 features Power over HDBaseT (PoH), allowing power to be transmitted from the transmitter to the receiver through the same Cat 5e, Cat 6, or Cat 6a cable carrying the AV and control signals.
No Separate Receiver Power Supply Required
Because the VE1812T transmitter supplies power to the VE1812R receiver through the HDBaseT connection, an additional receiver-side power supply is not required.
This simplifies installation in locations where access to AC power near the display may be limited or inconvenient.
Single-Cable Installation
Combining HDMI extension, control capabilities, and receiver power over a single category cable helps reduce installation complexity.
Fewer cables can mean cleaner installations, easier cable management, and more flexibility when deploying displays in remote locations.
Bidirectional RS-232
The VE1812 incorporates a bidirectional RS-232 channel, allowing compatible serial communication to travel between the transmitter and receiver locations.
This provides additional control flexibility for professional AV installations.
Serial Device Integration
The RS-232 connection can be used with compatible serial terminals and devices such as:
-
Touchscreens
-
Barcode scanners
-
AV control systems
-
Other RS-232-equipped equipment
This makes the VE1812 suitable for interactive and centrally managed installations as well as straightforward video extension.
Bidirectional IR Extension
The VE1812 supports IR signal extension in both directions.
This allows equipment at either end of the HDBaseT connection to be remotely controlled from the opposite location when used with compatible IR equipment.
Remote Source Control
Operators at the VE1812R receiver location can control a compatible HDMI source located at the transmitter side.
This is useful when source equipment is installed in an AV rack, equipment closet, or another area away from the display.
Remote Display Control
The bidirectional IR architecture also allows compatible display equipment at the receiver side to be accessed from the VE1812T transmitter location.
This gives installers and operators greater control flexibility without requiring additional dedicated control cabling.
HDBaseT Anti-Jamming
The VE1812 incorporates HDBaseT anti-jamming technology designed to resist signal interference during high-quality video transmission.
This helps maintain reliable signal delivery across long cable runs in professional AV environments.
VE1812T Transmitter
The VE1812T transmitter connects to the HDMI source and sends the HDMI, control, and power signals across the HDBaseT cable.
Its PoH capability provides power to the remote receiver through the same category cable.
VE1812R Receiver
The VE1812R receiver is installed near the remote display and converts the incoming HDBaseT transmission back into the required HDMI and control connections.
Because it receives power through PoH, a separate local receiver power supply is unnecessary.
Designed for Digital Classrooms
The VE1812 is well suited for digital classrooms, where computers and other source equipment may be located away from projectors, interactive displays, or large-format monitors.
Long-distance transmission and remote control capabilities provide greater flexibility when designing educational AV systems.
Video Conference Room Integration
For conference and collaboration spaces, the VE1812 provides a streamlined method for connecting remotely located HDMI equipment to room displays.
Its combination of HDMI, RS-232, IR, and PoH over category cable helps reduce the amount of dedicated cabling required.
Professional AV Installations
The VE1812 can be incorporated into professional AV systems where reliable long-distance video and control transmission is essential.
Its HDBaseT architecture makes it suitable for installations where conventional HDMI cable lengths would be impractical.
