Product Highlights:
  • 3G/HD-SDI, HDMI, and NDI Outputs
  • 2MP 1/2.8" Sensor
  • 4.7-94mm Lens, 20x Optical Zoom
  • 1080p/i & 720p Resolution up to 60 fps

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • Set of M3 Screws
  • Metal Installation Plate B
  • Metal Installation Plate A
  • RS-422 Connector (Removable)
  • Power Adapter
  • Power Cord
  • Remote Control


  • 3G/HD-SDI, HDMI, and NDI Outputs

  • 2MP 1/2.8" Sensor

  • 4.7-94mm Lens, 20x Optical Zoom

  • 1080p/i & 720p Resolution up to 60 fps



  • 2-Megapixel 1/2.8-inch Sensor

  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p

  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

  • 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

  • Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt

  • TRS Audio Line/Mic level select (2.5V to mic)

  • Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor

  • Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

  • 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for

  • PoE+ (802.3af) Power over Ethernet

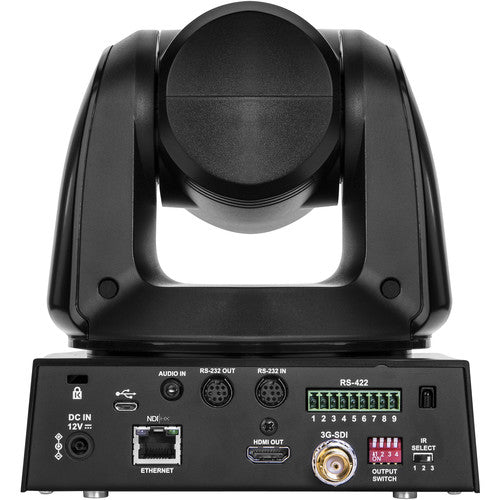

REAR OUTPUTS:

1. USB port for FW updates

2. 12V Power input

3. NDI NETWORK Ethernet (PoE/H.264/Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.



In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.

  • RS422/RS232 Remote Control Interface at High Comm Speeds

  • Mountable via table, wall, ceiling mounts included for use with built-in image flip setting

  • Compatible with integrated video conferencing systems and NDI-enabled networks
