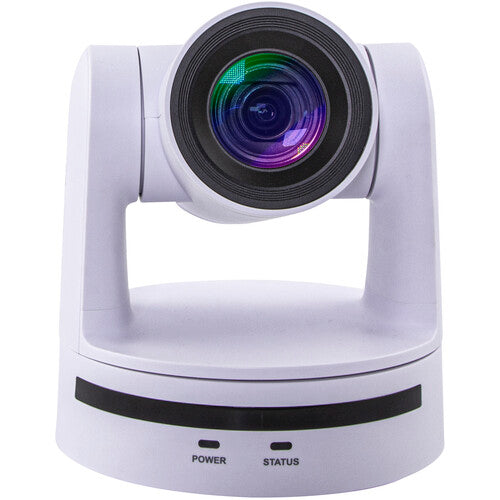

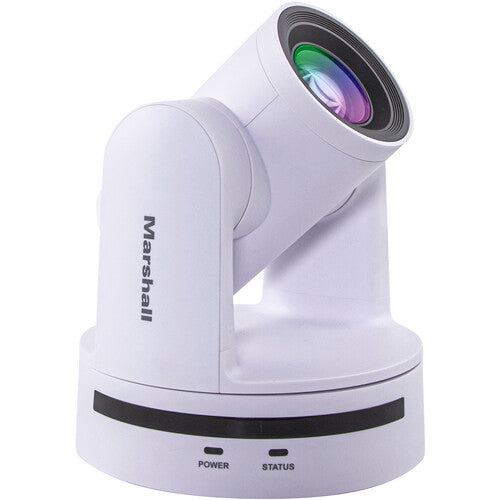

Marshall Electronics CV605-WH Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom

SKU: CV605WH | UPC: 801813225266

$708.75

In Stock · Free Shipping to Lower 48 States

Tax-Exempt & Purchase Orders Accepted

Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote

Manufacturer Warranty Included
Lifetime Technical Support from OfficeWonderland
No Sales Tax for Qualified Tax-Exempt Organizations
Purchase Orders Accepted (Net 30 Available)

Key Features

\n Capture and Stream up to 1080p60 Video\n 5x Optical Zoom, 10x Digital Zoom\n 85° Angle of View\n 3G/HD-SDI and IP Video Output\n RS-232/VISCA Serial Control\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

Net 30 Purchase Orders
Tax-Exempt Sales for Eligible Organizations
W-9 Available Upon Request

Request a Quote

Capture and Stream up to 1080p60 Video

5x Optical Zoom, 10x Digital Zoom

85° Angle of View

3G/HD-SDI and IP Video Output

RS-232/VISCA Serial Control

2 Megapixel (HD) sensor

5X Optical Zoom (3~15mm) - starting at 85° AOV

HD Resolution: 1920x1080p, 1920x1080i & 1280x720p

Resolution/Framerate choices:
- 1920x1080p at 60/59.94/50/30/29.97/25fps
- 1920x1080i at 60/59.94/50fps
- 1280x720p at 60/59.94/50/30/29.97/25fps

Low Illumination capability at 0.5Lux (F1.8) for challenging environments

3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45

Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable

Control Options: IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) or Custom

3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

The CV605-WH 5X optical zoom 3GSDI camera makes use of a professional grade 2 Megapixel sensor to obtain crisp HD video beginning at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Numerous available outputs consist of 3GSDI and IP (H.265/H.264). Marshall's simplistic design and east to use makes this camera an affordable camera for a wide array of broadcast and professional A/V applications. CV605-WH can be installed through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

Ultra-Wide 85° with 5x Optical Zoom Range

The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

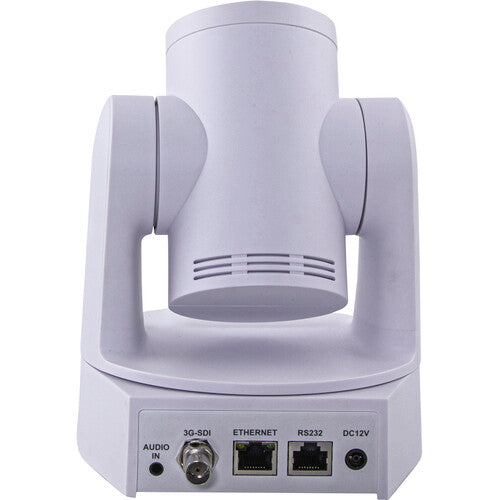

Marshall Electronics CV605-WH 3GSDI + IP (Ethernet) Workflow Flexibility

Marshall Electronics CV605-WH 3GSDI + IP (Ethernet) Workflow Flexibility

3GSDI + IP (Ethernet) Workflow Flexibility

CV605-WH offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).
Marshall Electronics CV605-WH Low-light Sensitivity

Marshall Electronics CV605-WH Low-light Sensitivity

Low-light Sensitivity

The CV605-WH PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
Marshall Electronics CV605-WH One Cable to Camera

Marshall Electronics CV605-WH One Cable to Camera

One Cable to Camera

One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

Sensor

1-Chip 1/2.8" CMOS Sensor
Resolution

4K
Signal To Noise Ratio

55 dB
Image Flip

Mirror Support
Output

SDI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps
Audio Input

1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Audio

SDI
Focal Length

3 to 15.5mm
Pan Angle

270° (-135 to 135°)
Tilt Angle

60° (-30 to 30°)
Pan Speed

1 to 60°/sec
Tilt Speed

1 to 30°/sec
Operating Temperature

14 to 122°F / -10 to 50°C
Power

PoE 802.3af
Optical Zoom

5x
