Product Summary








































































Input Type Mic or Line, GUI selectable
Configuration Electronically balanced
Gain -40 to +15 dB in 0.25 dB Steps
Polarity +/-, GUI selectable
Input Impedance >10 kOhms
Maximum Input Level +20 dBu
Phantom Power 48 V, GUI Enabled
Output Type Line
Ouput Impedance 50 ohms
Maximum Output Level +20 dBu
Frequency Response 20 Hz - 20 kHz
Dynamic Range 110 dB Type (unweighted)
Common Mode Rejection Ratio >100 dB (50 Hz - 10 kHz)
Distortion 0.002% (1 kHz @ +4 dBu)
Dimensions 1.5 x 4.0 x 5.2" (3.9 x 10.1 x 13.2 cm)
Weight 13 oz (368 g)
External Power Supply cUL, CE, RoHS, TUV





  • Drag and Drop architecture









  • Mic or Line selectable inputs









  • Balanced high gain outputs

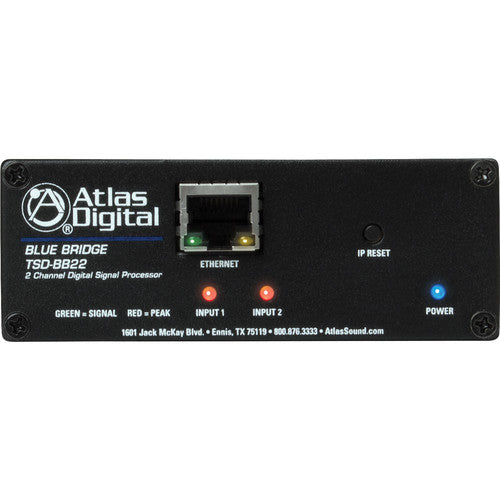

  • Output peak and signal indicator LEDs









  • Low noise floor









  • THAT Corp mic preamp









  • Ethernet network connectivity

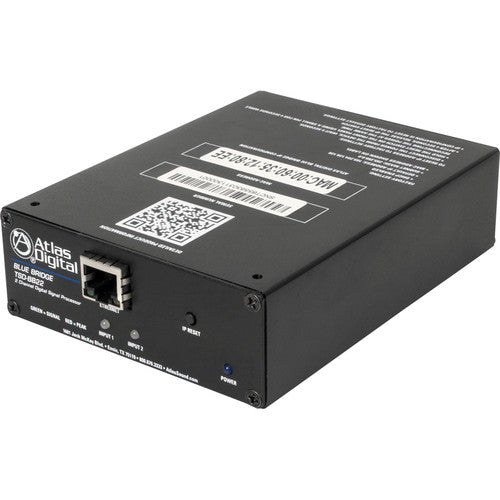

Introducing the Atlas Sound TSDBB22 TSD BlueBridge 2 Input / 2 Output DSP Audio Processor, a cutting-edge platform designed to enhance sound reinforcement and AV applications. This versatile DSP processor combines audio and Ethernet connectivity, allowing for seamless integration with TCP/IP third-party control and programmability.

With microphone preamps sourced from THAT Corporation and 24-bit converters, the TSD BlueBridge processor achieves an impressive low noise floor, ensuring pristine audio quality. The 40-bit floating-point DSP engine is specifically designed to prevent digital clipping and deliver exceptional speed and processing power for handling complex algorithms in advanced system designs.

The unit is compatible with any network, and upon connection, it is instantly recognized and controllable. The TSD BlueBridge processors offer both fixed application embedded designs and the flexibility to create custom drag-and-drop systems, providing tailored solutions for a variety of audio setups.

Whether your system requires limited I/Os or demands a modern DSP platform, the TSD processor is the perfect choice. It can function as a standalone device to run a sound system or seamlessly integrate with existing setups to supplement their capabilities.

Experience the power and flexibility of the TSD BlueBridge 2 Input / 2 Output DSP Audio Processor. With its advanced features, superior audio processing capabilities, and user-friendly design, it is the ideal solution for elevating sound systems in various applications. Unlock the true potential of your audio setup with the TSD BlueBridge processor.

Atlas Sound TSDBB22 BlueBridge 2 Input / 2 Output DSP Audio Processor

SKU: TSDBB22 | UPC: 612079189489
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,312.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound TSDBB22 BlueBridge 2 Input / 2 Output DSP Audio Processor $1,312.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features
