Atlas Sound TSDBB22 BlueBridge 2 Input / 2 Output DSP Audio Processor
SKU:
TSDBB22
$10.49
Unit price
/
Unavailable
In Stock
·
Free Shipping to Lower 48 States
Tax-Exempt
& Purchase Orders Accepted
Bulk Pricing
Available
Atlas Sound TSDBB22 BlueBridge 2 Input / 2 Output DSP Audio Processor is backordered and will ship as soon as it is back in stock.
- Manufacturer Warranty Included
- Lifetime Technical Support from OfficeWonderland
- No Sales Tax for Qualified Tax-Exempt Organizations
- Purchase Orders Accepted (Net 30 Available)
Atlas Sound TSDBB22 BlueBridge 2 Input / 2 Output DSP Audio Processor
$10.49
Unit price
/
Unavailable
Key Features
- \n\n\nInput Type\nMic or Line, GUI selectable\n\n\nConfiguration\nElectronically balanced\n\n\nGain\n-40 to +15 dB in 0.25 dB Steps\n\n\nPolarity\n+/-, GUI selectable\n\n\nInput Impedance\n>10 kOhms\n\n\nMaximum Input Level\n+20 dBu\n\n\nPhantom Power\n48 V, GUI Enabled\n\n\nOutput Type\nLine\n\n\nOuput Impedance\n50 ohms\n\n\nMaximum Output Level\n+20 dBu\n\n\nFrequency Response\n20 Hz - 20 kHz\n\n\nDynamic Range\n110 dB Type (unweighted)\n\n\nCommon Mode Rejection Ratio\n>100 dB (50 Hz - 10 kHz)\n\n\nDistortion\n0.002% (1 kHz @ +4 dBu)\n\n\nDimensions\n1.5 x 4.0 x 5.2" (3.9 x 10.1 x 13.2 cm)\n\n\nWeight\n13 oz (368 g)\n\n\nExternal Power Supply\ncUL, CE, RoHS, TUV\n\n\n
Purchase Orders & Tax-Exempt
We proudly support schools, universities, government agencies, and qualified businesses.
- Net 30 Purchase Orders
- Tax-Exempt Sales for Eligible Organizations
- W-9 Available Upon Request
| Input Type | Mic or Line, GUI selectable |
| Configuration | Electronically balanced |
| Gain | -40 to +15 dB in 0.25 dB Steps |
| Polarity | +/-, GUI selectable |
| Input Impedance | >10 kOhms |
| Maximum Input Level | +20 dBu |
| Phantom Power | 48 V, GUI Enabled |
| Output Type | Line |
| Ouput Impedance | 50 ohms |
| Maximum Output Level | +20 dBu |
| Frequency Response | 20 Hz - 20 kHz |
| Dynamic Range | 110 dB Type (unweighted) |
| Common Mode Rejection Ratio | >100 dB (50 Hz - 10 kHz) |
| Distortion | 0.002% (1 kHz @ +4 dBu) |
| Dimensions | 1.5 x 4.0 x 5.2" (3.9 x 10.1 x 13.2 cm) |
| Weight | 13 oz (368 g) |
| External Power Supply | cUL, CE, RoHS, TUV |
- Drag and Drop architecture
- Mic or Line selectable inputs
- Balanced high gain outputs

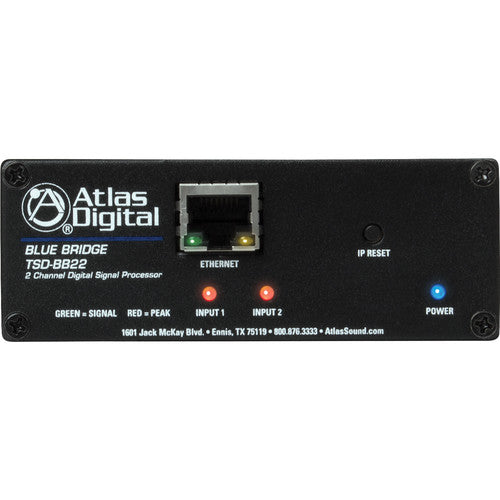

- Output peak and signal indicator LEDs
- Low noise floor
- THAT Corp mic preamp
- Ethernet network connectivity
Introducing the Atlas Sound TSDBB22 TSD BlueBridge 2 Input / 2 Output DSP Audio Processor, a cutting-edge platform designed to enhance sound reinforcement and AV applications. This versatile DSP processor combines audio and Ethernet connectivity, allowing for seamless integration with TCP/IP third-party control and programmability.
With microphone preamps sourced from THAT Corporation and 24-bit converters, the TSD BlueBridge processor achieves an impressive low noise floor, ensuring pristine audio quality. The 40-bit floating-point DSP engine is specifically designed to prevent digital clipping and deliver exceptional speed and processing power for handling complex algorithms in advanced system designs.
The unit is compatible with any network, and upon connection, it is instantly recognized and controllable. The TSD BlueBridge processors offer both fixed application embedded designs and the flexibility to create custom drag-and-drop systems, providing tailored solutions for a variety of audio setups.
Whether your system requires limited I/Os or demands a modern DSP platform, the TSD processor is the perfect choice. It can function as a standalone device to run a sound system or seamlessly integrate with existing setups to supplement their capabilities.
Experience the power and flexibility of the TSD BlueBridge 2 Input / 2 Output DSP Audio Processor. With its advanced features, superior audio processing capabilities, and user-friendly design, it is the ideal solution for elevating sound systems in various applications. Unlock the true potential of your audio setup with the TSD BlueBridge processor.
