Product Summary

Premium High-Brightness Performance

The ViewSonic PS502W stands out as a top-tier short-throw solution, delivering 4000 ANSI lumens. This ensures that your presentations remain vibrant and legible regardless of indoor lighting conditions.

Space-Efficient Projection

With its 0.52:1 throw ratio, you can project a massive 100-inch screen from only 44 inches away. This setup is ideal for small meeting spaces and classrooms where space is at a premium.

Advanced Connectivity and Audio

Equipped with dual HDMI ports and a high-powered 16W integrated speaker, the PS502W provides a complete multimedia experience without the need for external sound systems or complex cabling.

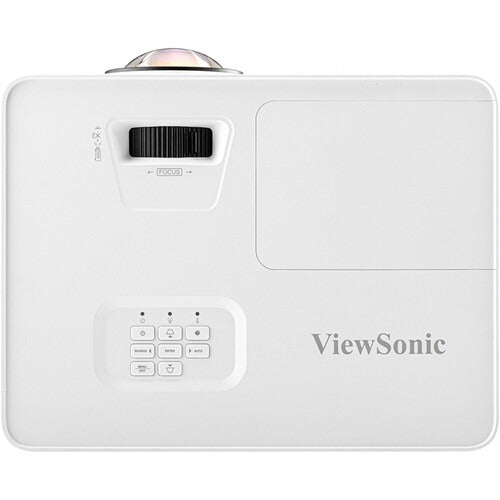

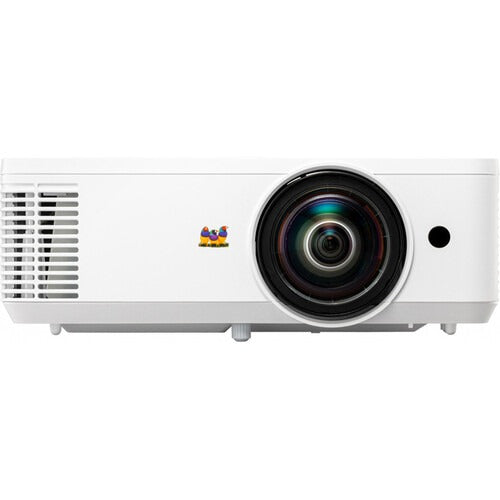

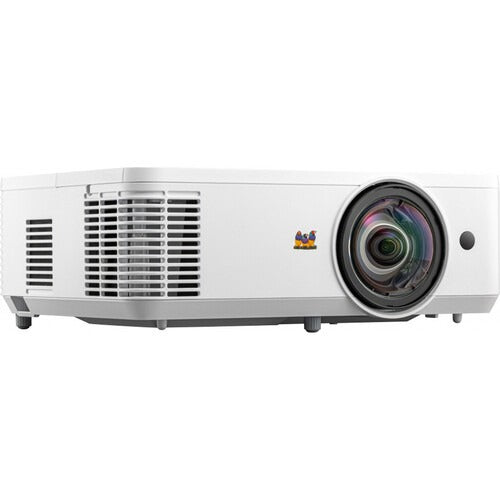

ViewSonic PS502W 4000-Lumen WXGA Short-Throw DLP Projector

SKU: PS502W | UPC: 766907020038
Authorized Dealer Authorized ViewSonic Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$599.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
ViewSonic PS502W 4000-Lumen WXGA Short-Throw DLP Projector $599.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • WXGA 1280 × 800 Resolution
  • 4,000 ANSI Lumens Brightness
  • Short Throw Ratio 0.52:1
  • Powerful 16W Built-In Speaker
  • Dual HDMI Input Connectivity

Technical Details

Specifications

Lumens (ANSI)
4000
Native Resolution
1280 x 800
Display Technology
DLP
Contrast Ratio
15000:1
Aspect Ratio
16:10 (WXGA)
Throw Distance
2.2 - 11.02'
Image Size Diagonal
60 to 300"
Lens
0.52:1
Lens Shift
No
Digital Keystone
Vertical
Short Throw
Yes

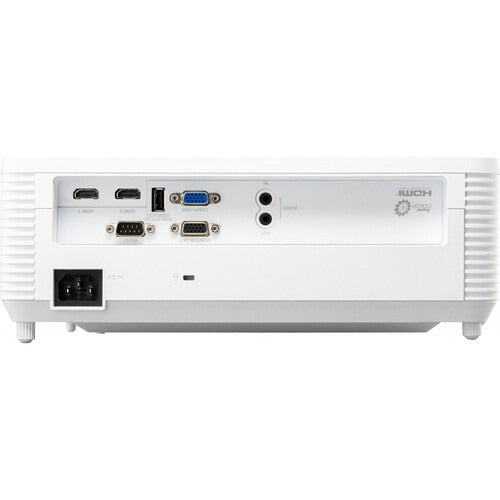

Inputs
• 2x HDMI 1.4 Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input, 1x DE-9/DB-9 (RS-232) Control Input
Outputs
• 1x DE-15/DB-15 (VGA) Video Output 1x 1/8" / 3.5 mm Mini Audio Output, 1x USB-A Power Output
Wireless Networking
Optional
Speakers
16W mono
Audible Noise
34 dB
Lamp Life
4000 Hours
Projector Methods
Front, Rear, Ceiling Mount, Table Top
Dimensions (W × D × H)
12.2 x 4.5 x 9.2"
Unit Weight
6.33 lb
ViewSonic PS502W 4000-Lumen WXGA Short-Throw DLP Projector
ViewSonic

ViewSonic PS502W 4000-Lumen WXGA Short-Throw DLP Projector

$599.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

12.2 x 4.5 x 9.2

N/A

Aspect Ratio

16:10 (WXGA)

N/A

Content

N/A

N/A

Native Resolution

1280 x 800

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

15000:1

N/A

Throw Distance

2.2 - 11.02'

N/A

Lens

0.52:1

N/A

Inputs

2x HDMI 1.4 Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input, 1x DE-9/DB-9 (RS-232) Control Input

N/A

Outputs

1x DE-15/DB-15 (VGA) Video Output 1x 1/8" / 3.5 mm Mini Audio Output, 1x USB-A Power Output

N/A

Display Technology

DLP

N/A

Wireless Networking

Optional

N/A

Speakers

16W mono

N/A

Economode

-

N/A

Audible Noise

34 dB

N/A

Lamp Life

4000 Hours

N/A

Short Throw

Yes

N/A

Aspect Ratio

16:10 (WXGA)

N/A

Image Size Diagonal

60 to 300"

N/A

Lens Shift

No

N/A

Data / Video Signals

720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i

N/A

Digital Keystone

Vertical

N/A

Unit Weight

6.33 lb

N/A

Projector Methods

Front, Rear, Ceiling Mount, Table Top
