Key Features
- UHD 4K30 Video
- 12x Optical Zoom
- 74° Wide Field View
- HDMI HDBT SDI And IP
- Built-In Browser Control
1
/
3
1
3
Product Summary

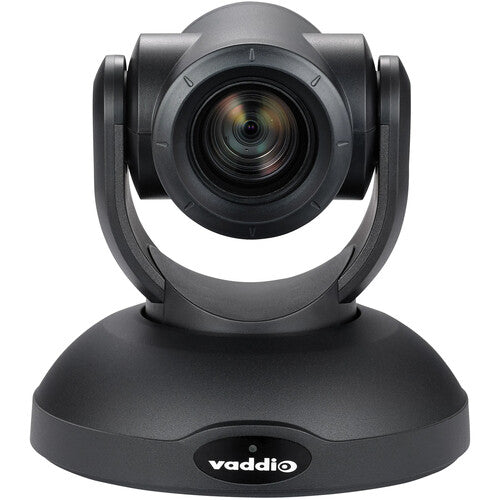

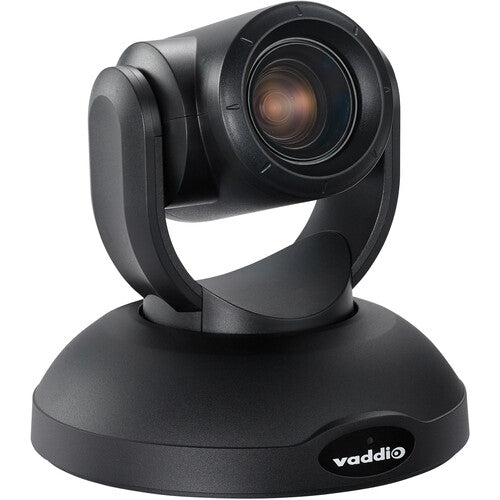

Vaddio RoboSHOT 20 UHD Ultra High-Definition PTZ Camera – Black
The Vaddio RoboSHOT 20 UHD Ultra High-Definition PTZ Camera delivers professional UHD video for distance learning, corporate conferencing, houses of worship, training spaces, and other professional AV environments. Featuring a 1/2.3" Exmor R sensor, UHD 4K capture, 20x total zoom, multiple simultaneous video outputs, and flexible network and serial control, the camera provides a versatile solution for installed video systems.
UHD 4K Video
The RoboSHOT 20 UHD captures UHD 4K (3840 x 2160) video at up to 30 fps, providing detailed imagery for presentations, meetings, lectures, and live video applications.
Its single 1/2.3"-type Exmor R sensor provides the high-resolution imaging required for professional 4K workflows.
20x Total Zoom
The camera features 12x optical zoom combined with 1.67x digital zoom, providing a 20x total zoom range.
Its horizontal angle of view ranges from a wide 74° to a narrow 4.8° at maximum zoom, allowing operators to move between broad room coverage and tightly framed shots of presenters or participants.

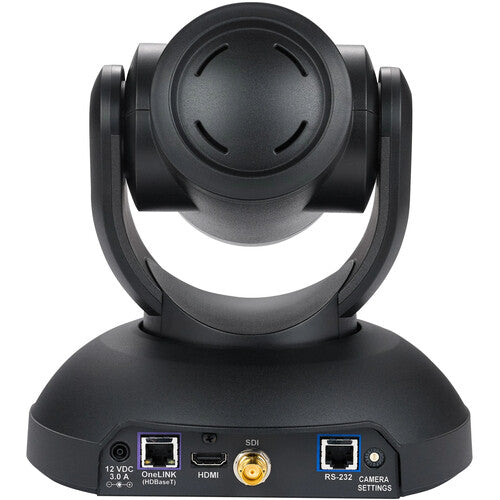

Simultaneous Video Outputs
The RoboSHOT 20 UHD provides multiple video outputs that remain active simultaneously, eliminating the need to select a single output.
Connectivity includes:
- HDMI
- HDBaseT
- 3G-SDI
- IP streaming
Simultaneous output provides flexibility for sending video to multiple displays, recorders, streaming systems, or other AV equipment.
Built-In IP Streaming
Integrated IP streaming allows video to be distributed directly across a network, making the camera suitable for network-based video and remote production environments.
The camera can also be accessed from a networked computer through its Ethernet connection.
HDBaseT Connectivity
HDBaseT provides both connectivity and camera power over Ethernet cabling, simplifying installation and reducing dependence on a nearby AC power outlet.
This provides greater flexibility when installing the camera in conference rooms, classrooms, auditoriums, houses of worship, and other permanently installed AV environments.
Flexible Camera Control
The RoboSHOT 20 UHD provides several methods for controlling its pan, tilt, zoom, and camera functions.
Control options include:
- Included IR remote commander
- Ethernet/network control
- RS-232
- HDBaseT
- Built-in web interface
The browser-based interface enables operators and administrators to access camera controls from compatible devices connected to the network.
Status Indicator LED
A built-in multicolor LED provides an immediate visual indication of camera status.
- Purple: Boot-up or standby mode
- Blue: Normal operation; camera is powered on and ready
- Blinking Blue: Camera has received an IR command
- Red: Tally/on-air indication
- Blinking Red: Fault condition
- Yellow: Firmware update in progress
The tally indication is particularly useful in production environments by providing presenters and operators with a clear indication when the camera is on-air.
Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black) 999-9950-000B
Authorized Dealer
Authorized
Vaddio
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$5,806.80
BACK 2 SCHOOL SALE | additional discount in cart
Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black) 999-9950-000B
$5,806.80
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Best For
- 🎓 Education
- 🏢 Corporate Collaboration
- 🏛️ Government
Product Description
Vaddio RoboSHOT 20 UHD Ultra High-Definition PTZ Camera – Black
The Vaddio RoboSHOT 20 UHD Ultra High-Definition PTZ Camera delivers professional UHD video for distance learning, corporate conferencing, houses of worship, training spaces, and other professional AV environments. Featuring a 1/2.3" Exmor R sensor, UHD 4K capture, 20x total zoom, multiple simultaneous video outputs, and flexible network and serial control, the camera provides a versatile solution for installed video systems.
UHD 4K Video
The RoboSHOT 20 UHD captures UHD 4K (3840 x 2160) video at up to 30 fps, providing detailed imagery for presentations, meetings, lectures, and live video applications.
Its single 1/2.3"-type Exmor R sensor provides the high-resolution imaging required for professional 4K workflows.
20x Total Zoom
The camera features 12x optical zoom combined with 1.67x digital zoom, providing a 20x total zoom range.
Its horizontal angle of view ranges from a wide 74° to a narrow 4.8° at maximum zoom, allowing operators to move between broad room coverage and tightly framed shots of presenters or participants.
Simultaneous Video Outputs
The RoboSHOT 20 UHD provides multiple video outputs that remain active simultaneously, eliminating the need to select a single output.
Connectivity includes:
- HDMI
- HDBaseT
- 3G-SDI
- IP streaming
Simultaneous output provides flexibility for sending video to multiple displays, recorders, streaming systems, or other AV equipment.
Built-In IP Streaming
Integrated IP streaming allows video to be distributed directly across a network, making the camera suitable for network-based video and remote production environments.
The camera can also be accessed from a networked computer through its Ethernet connection.
HDBaseT Connectivity
HDBaseT provides both connectivity and camera power over Ethernet cabling, simplifying installation and reducing dependence on a nearby AC power outlet.
This provides greater flexibility when installing the camera in conference rooms, classrooms, auditoriums, houses of worship, and other permanently installed AV environments.
Flexible Camera Control
The RoboSHOT 20 UHD provides several methods for controlling its pan, tilt, zoom, and camera functions.
Control options include:
- Included IR remote commander
- Ethernet/network control
- RS-232
- HDBaseT
- Built-in web interface
The browser-based interface enables operators and administrators to access camera controls from compatible devices connected to the network.
Status Indicator LED
A built-in multicolor LED provides an immediate visual indication of camera status.
- Purple: Boot-up or standby mode
- Blue: Normal operation; camera is powered on and ready
- Blinking Blue: Camera has received an IR command
- Red: Tally/on-air indication
- Blinking Red: Fault condition
- Yellow: Firmware update in progress
The tally indication is particularly useful in production environments by providing presenters and operators with a clear indication when the camera is on-air.
Technical Details
Specifications
Resolution
4K
Optical Zoom
3x
Complete Your Solution
Connectivity
Other Accessories
Purchase Orders
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
- Contact name, email address & telephone number. Note: An email address is required to receive order/shipping confirmation.
- Billing name & address.
- Shipping address.
- Tax ID#. For tax exempt orders, please see the Tax Exempt information below.
- Purchase Order Number.
- Date needed. Please note: Up to 3–5 days are needed to process requests. This does not include delivery time.
- Authorized signature. Your purchase order can only be accepted when accompanied by the signature of the officer authorizing the purchase and when submitted on your organization's official purchase order form or letterhead.
- Purchase orders must be in excess of $75 excluding shipping. All prices are in USD.
- Sales tax is charged only on orders shipping to the state of Florida.
Submit Your Purchase Order
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comAttn: Purchase Orders
20400 NE 16th PL
North Miami Beach, FL 33179
Once we have all the information requested above, an account and order will be created.
Please Note
- Please allow 3–5 days for us to process requests.
- Confirmation emails are sent when the order is placed and another email is sent when the order ships.
- Please make all checks payable to OfficeWonderland Ltd. at the address referenced above.
- Payments on PO orders are due within 30 days.
Terms
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
In the Box
- 📷 Vaddio RoboSHOT 20 UHD PTZ Camera – Black
- 🔗 Vaddio OneLINK HDMI Interface
- 🔩 Thin-Profile Wall Mount – Black
- 🎮 Vaddio IR Remote Commander
- 🔌 12V Power Supply & AC Cord
- 🔌 48V Power Supply & AC Cord
- 🔗 EZCamera RS-232 Control Adapter
- 🔩 Mounting Hardware & Documentation
