Product Summary

Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity. The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.Designed for unattended operation, this compact but powerful robotic...

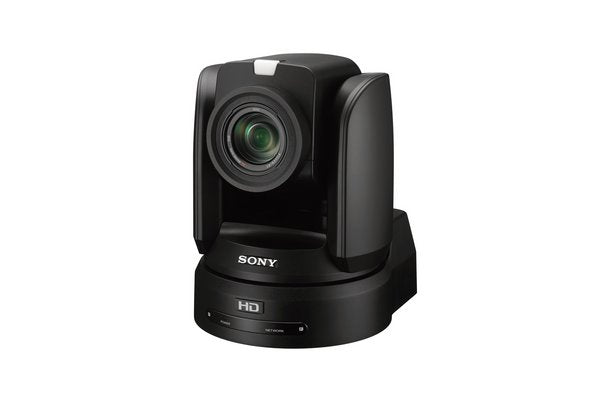

Sony BRC-H800 Full HD PTZ Camera with1-inch Exmor® R CMOS Sensor

SKU: BRCH800 | UPC: 27242913530
Authorized Dealer Authorized Sony Dealer
🛡️Manufacturer Warranty Authorized dealer coverage
🛠️Expert Support Pre- and post-sale assistance

$6,500.00

Black Friday | additional discount in cart
Request a Quote
Sony BRC-H800 Full HD PTZ Camera with1-inch Exmor® R CMOS Sensor $6,500.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 12x Optical Zoom
  • One-Inch Exmor R Sensor
  • 3G-SDI And HDMI Outputs
  • PoE+ And Genlock Support
Complete Your Solution
sony-brc-h900-full-hd-ptz-camera-with1-inch-exmor
Sony

Sony BRC-H800 Full HD PTZ Camera with1-inch Exmor® R CMOS Sensor

$6,500.00

Sensor

1.0-type back-illuminated Exmor R CMOS sensor

Resolution

HD 1080

Signal Sysyetm

1080/59.94p,1080/59.94i,720/59,94p, 1080/50p,1080/50i, 720/50p, 1080/23.98p

Gain

Auto/Manual (-3dB to +33dB)

Shutter Speed Range

1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25/23.98)

Exposure Control

Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light

White Balance

Auto1/Auto2/One Push/Indoor/Outdoor/Manual

Image Flip

On/Off

Sync

yes

Output

4K Video Output No HD Video Output 3G-SDI x2 and HDMI

Camera Control

VISCA RS-422 RJ45(In/Out) VISCA over IP RJ45

Focal Length

f=9.3 to 111.6mm F2.8(Wide) ,F4.5(Tele)

Minimum Object Distance

1000mm(Tele) 80mm (Wide)

Pan Angle

±170°

Tilt Angle

+90°/-30°

Pan Speed

0.3° to 60°/s

Tilt Speed

0.3° to 60°/s

Presets

100

Operating Temperature

0 °C to 40 °C 32 °F to 104 °F

Power

DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant)

Minimum Illumination

1.7 lux (50IRE, F2.8, 1/30s, Max.Gain)

Optical Zoom

12x
