Product Summary

4 x SD/HD/3G-SDI Inputs 1 x SDI & 1 x HDMI Outputs Automatic Signal Detection SDI Re-Clocking on Output Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any...

Blackmagic Design MultiView 4 HD HDL-MULTIP3G/04HD

SKU: HDLMULTIP3G04HD | UPC: 9338716005424
Authorized Dealer Authorized Black Magic Design Dealer
🛡️Manufacturer Warranty Authorized dealer coverage
🛠️Expert Support Pre- and post-sale assistance

$185.00

Black Friday | additional discount in cart
Request a Quote
Blackmagic Design MultiView 4 HD HDL-MULTIP3G/04HD $185.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">4 x SD/HD/3G-SDI Inputs</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">1 x SDI &amp; 1 x HDMI Outputs</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Automatic Signal Detection</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">SDI Re-Clocking on Output</li>\n</ul>

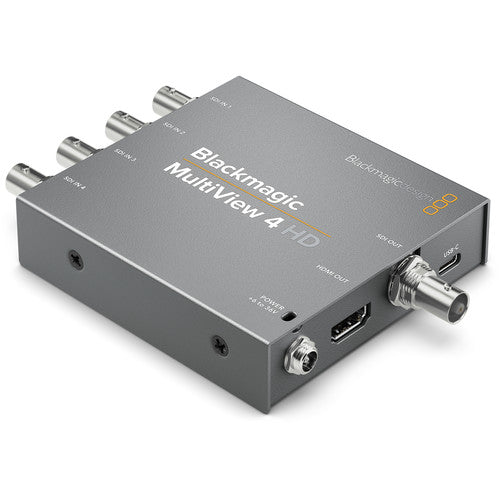

Blackmagic Design MultiView 4 HD HDL-MULTIP3G 04HD front
Black Magic Design

Blackmagic Design MultiView 4 HD HDL-MULTIP3G/04HD

$185.00

General

<strong>Input Connectors:</strong>

4 x BNC (3G-SDI)
<strong>Output Connectors:</strong>

1 x BNC (3G-SDI)
1 x HDMI

<strong>Video Standard Compliance:</strong>

SMPTE 259M/292M/296M/310M/425M-B
ITU -R BT.601/BT.656

<strong>Video Format:</strong>

SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 2K
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
<strong>Max Sample Rate/Resolution :</strong>

48 kHz / 24-Bit

<strong>OS Compatibility:</strong>

macOS 10.12
macOS 10.13
Windows 8.1
Windows 10

<strong>Power Consumption:</strong> 6 to 36 VDC (5.5 W)

<strong>Operating Temperature:</strong> 32 to 104°F / 0 to 40°C
<strong>Storage Temperature:</strong> -4 to 113°F / -20 to 45°C
<strong>Operating Humidity:</strong> 0 to 90%

<strong>Dimensions:</strong> 4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm
<strong>Weight:</strong> 8.53 oz / 0.24 kg
