Product Summary
The Shure PGXD14/BETA98H presents a wireless microphone system specifically designed for wind and percussion instruments, delivering exceptional 24-bit / 48 kHz digital audio quality. This reliable system offers a cost-effective and user-friendly solution for musicians, providing them with the freedom to move while maintaining a pristine sound reproduction. The lightweight tabletop receiver enhances portability, making it an ideal choice for solo musicians and small ensemble performers who are often on the go. Whether performing in event spaces, theaters, weddings, houses of worship, or other limited-size venues, this system ensures a seamless and reliable audio experience for both performers and audiences alike.
The PGXD14/BETA98H-X8 Digital systems are designed to operate within the 900 MHz band, providing a significant distance from potential sources of interference like TV signals and cell phones. This ensures a reliable and interference-free wireless performance. The receiver of the system features true digital diversity, incorporating two antennas and two independent receiver circuits. This advanced design ensures seamless transmission by actively selecting the strongest and most reliable signal, even in challenging RF environments. With an impressive maximum line-of-sight range of up to 200 feet, users can enjoy freedom of movement without sacrificing audio quality.
Operating the PGXD14/BETA98H-X8 system is a breeze. To get started, just press the Scan button on the receiver, and it will automatically scan for a clean frequency. Once a suitable frequency is found, simply press the Sync button. The receiver and transmitter will swiftly synchronize to the same channel using infrared ports. With these simple steps, you're ready to go and enjoy uninterrupted performance. In case the RF environment changes or interference is encountered, a quick rescan and resync will allow you to operate on a fresh clean frequency, ensuring a reliable and interference-free connection. This user-friendly process empowers you to adapt to varying conditions effortlessly and maintain an optimal audio experience.

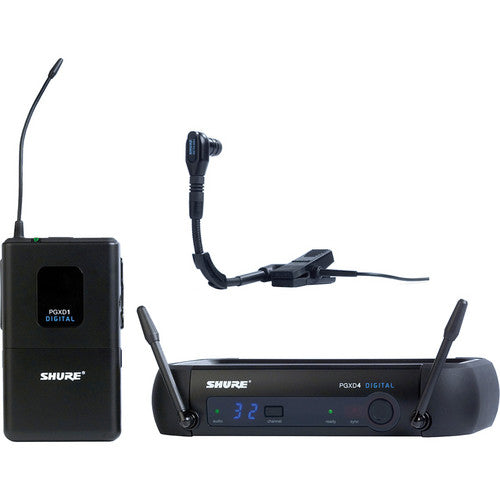

Shure PGXD14/BETA98H-X8 Digital Wireless Cardioid Instrument Microphone System (900 MHz)
$549.00
Product Description
The Shure PGXD14/BETA98H presents a wireless microphone system specifically designed for wind and percussion instruments, delivering exceptional 24-bit / 48 kHz digital audio quality. This reliable system offers a cost-effective and user-friendly solution for musicians, providing them with the freedom to move while maintaining a pristine sound reproduction. The lightweight tabletop receiver enhances portability, making it an ideal choice for solo musicians and small ensemble performers who are often on the go. Whether performing in event spaces, theaters, weddings, houses of worship, or other limited-size venues, this system ensures a seamless and reliable audio experience for both performers and audiences alike.
The PGXD14/BETA98H-X8 Digital systems are designed to operate within the 900 MHz band, providing a significant distance from potential sources of interference like TV signals and cell phones. This ensures a reliable and interference-free wireless performance. The receiver of the system features true digital diversity, incorporating two antennas and two independent receiver circuits. This advanced design ensures seamless transmission by actively selecting the strongest and most reliable signal, even in challenging RF environments. With an impressive maximum line-of-sight range of up to 200 feet, users can enjoy freedom of movement without sacrificing audio quality.
Operating the PGXD14/BETA98H-X8 system is a breeze. To get started, just press the Scan button on the receiver, and it will automatically scan for a clean frequency. Once a suitable frequency is found, simply press the Sync button. The receiver and transmitter will swiftly synchronize to the same channel using infrared ports. With these simple steps, you're ready to go and enjoy uninterrupted performance. In case the RF environment changes or interference is encountered, a quick rescan and resync will allow you to operate on a fresh clean frequency, ensuring a reliable and interference-free connection. This user-friendly process empowers you to adapt to varying conditions effortlessly and maintain an optimal audio experience.
Technical Details
Specifications
System
| Wireless Technology | Digital 900 MHz |
| Included Transmitters | 1 x Bodypack |
| Diversity | True Digital Diversity |
| Max Operating Range | 196.9' / 60 m (Line of Sight) |
| Max Transmitters per Band | 5 |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Dynamic Range | >108 dBA |
| Encryption | None |
Receiver
| Receiver Type | Tabletop |
| Antenna | 2 x Fixed (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" Female Balanced/Unbalanced Output |
| Gain Range | 26 dB |
| Audio Output Level | XLR Output: -2.5 dBV (Mic Level) 1/4" Output: +10 dBV (Instrument Level) |
| Frequency Response | 20 Hz to 20 kHz (Dependent on Mic) |
| Impedance | XLR Output: 50 Ohms (Balanced) 1/4" Output: 50 Ohms (Balanced) |
| RF Output Power | 10 mW |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 150 mA, Center-Positive (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1 x LED (Channel, Group) 1 x LED (AF Level) 1 x LED (Battery Status, RF Level) |
| Housing | Plastic |
| Operating Temperature | 0 to 122°F / -17 to 50°C |
| Dimensions | 7.1 x 1.6 x 4.1" / 181 x 40 x 104 mm |
| Weight | 10.2 oz / 289 g |
Transmitter
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable) |
| Muting | Off/On Switch |
| Audio Input Level | -16 to +10 dBV |
| Gain Range | 26 dB |
| Sync Method | IR |
| Antenna | 1 x External, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x LED (Battery Status, Mute, Sync) |
| Housing | ABS |
| Dimensions | 2.5 x 4.3 x 0.7" / 64 x 108 x 19 mm |
| Weight | 2.8 oz / 79 g |
Microphone
| Microphone Type | Clip-On Instrument |
| Instrument Mic Type | Clarinet, Flute, French Horn, Percussion/Drum, Saxophone, Trombone, Trumpet, Tuba |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| SNR | 63 dB |
| Equivalent Noise Level | 31 dB A-Weighted |
| Maximum SPL | 155 dB SPL |
| Load Impedance | 150 Ohms |
| Sensitivity | -56 dBV/Pa |
| Dynamic Range | 132 dB |
| Output | 1 x TA4/Mini XLR 4-Pin Female |
| Cable Length | 5.3' / 1.62 m |
Packaging Info
| Package Weight | 4 lb |
| Box Dimensions (LxWxH) | 17.3 x 12.6 x 4.3" |
