Product Summary

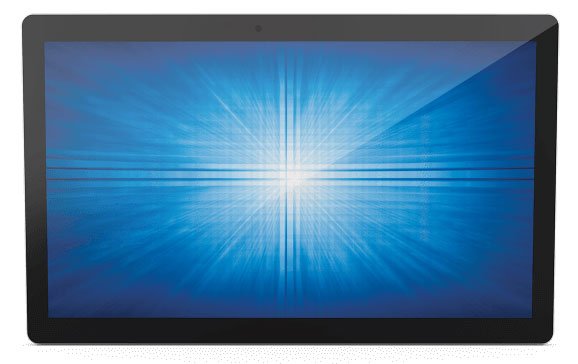

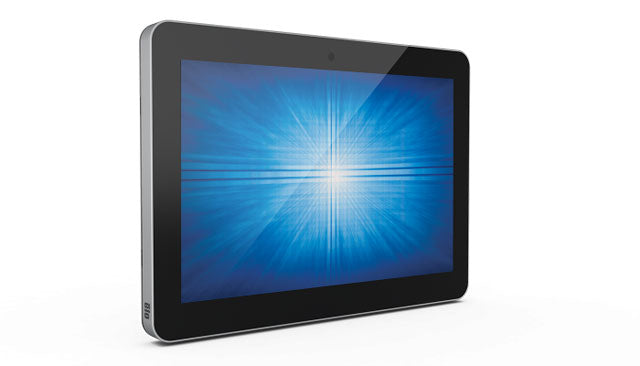

Elo Touch I-Series 2 E693022 22" Interactive Touchscreen Computer

The Elo Touch I-Series 2 E693022 is a 22-inch commercial all-in-one touchscreen computer designed for self-service kiosks, point-of-sale systems, digital signage, hospitality, corporate workspaces, and industrial applications. Powered by a 9th Generation Intel® Core™ i5-9500TE processor with Windows 10 IoT Enterprise LTSC, this all-in-one system delivers enterprise-class performance in a sleek, durable fixed-tablet design. Featuring a 21.5-inch Full HD display, TouchPro® Projected Capacitive (PCAP) technology, 10-point multi-touch, 8GB RAM, and a 128GB SSD, the E693022 is built for continuous commercial operation.

Brilliant Full HD Touch Display

Deliver vibrant visuals and responsive interaction.

  • 21.5-inch TFT LCD display
  • 1920 × 1080 Full HD resolution
  • TouchPro® Projected Capacitive (PCAP) touchscreen
  • Up to 10 simultaneous touch points
  • 250-nit brightness (225 nits with touch)

The edge-to-edge touchscreen provides a smooth, tablet-like experience with wide viewing angles and excellent image clarity.

Powerful Intel® Performance

Built for demanding commercial workloads.

  • Intel® Core™ i5-9500TE processor
  • Windows 10 IoT Enterprise LTSC
  • 8GB DDR4 RAM
  • 128GB SSD
  • Intel® UHD Graphics 630

Enterprise-class Intel computing delivers fast, reliable performance for interactive software, digital signage, and business applications.

Elo Edge Connect™ Expandability

Customize the system to fit your business.

  • Barcode scanner support
  • Magnetic stripe reader (MSR)
  • Fingerprint reader
  • RFID reader
  • EMV payment cradle
  • Webcam and 3D camera
  • Status light and speaker bar options

The modular Edge Connect system allows accessories to be added or replaced as business requirements evolve.

Enterprise Connectivity

Connect seamlessly to your infrastructure.

  • Gigabit Ethernet
  • Wi-Fi 802.11ac
  • Bluetooth® 5.0
  • USB 3.0 port
  • Four Edge Connect Micro-USB ports
  • 3.5 mm audio output

Comprehensive connectivity supports POS peripherals, networking, and enterprise deployments.

Flexible Installation

Deploy virtually anywhere.

  • 75 × 75 mm and 100 × 100 mm VESA compatible
  • Portrait or landscape orientation
  • Countertop, wall, shelf, or pole mounting
  • Compatible with Elo self-service stands

The slim, fixed-tablet design integrates easily into kiosks, workstations, and interactive displays.

Commercial-Grade Reliability

Designed for continuous operation.

  • Commercial-grade construction
  • Fanless architecture
  • 50,000-hour MTBF
  • Kensington security lock
  • 3-year standard warranty

Built for high-traffic public environments with long product life and dependable performance.

Elo Touch I-Series 2 E693022 22" Full HD Touchscreen Commercial Monitor with Intel i5 & Windows 10

SKU: E693022 | UPC: 843173109480
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$2,485.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch I-Series 2 E693022 22" Full HD Touchscreen Commercial Monitor with Intel i5 & Windows 10 $2,485.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 21.5" LCD Display
  • TouchPro® Projected Capacitive (PCAP) 10-Point Multi-Touch
  • All-in-One Interactive Touch Computer
  • 1920 × 1080 Full HD Resolution
  • 250 nits Brightness (225 nits with Touch)
  • Intel® Core™ i5-9500TE Processor with Intel vPro™

Best For

  • 🏢 Corporate Collaboration
  • 🏨 Hospitality

Technical Details

Specifications

Screen Size
21.5"
Brightness
225 nits (cd/m2)
Display Orientation
1920 x 1080 (Full HD)
Inputs
• 1 x USB 3.0 Type-A 4 x Micro-USB (for Elo Edge Connect peripherals) 1 x RJ45 Ethernet (Gigabit) 1 x 3.5mm Headphone Jack Wireless: Wi-Fi 802.11ac and Bluetooth 5.0
VESA Pattern
75mm or 100mm
Elo

Elo Touch I-Series 2 E693022 22" Full HD Touchscreen Commercial Monitor with Intel i5 & Windows 10

$2,485.00

Brightness

225 nits (cd/m2)

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

(W x H x D): 20.7" x 12.6" x 2.1"

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

1 x USB 3.0 Type-A 4 x Micro-USB (for Elo Edge Connect peripherals) 1 x RJ45 Ethernet (Gigabit) 1 x 3.5mm Headphone Jack Wireless: Wi-Fi 802.11ac and Bluetooth 5.0
