Product Summary


  • For Broadcast/Surveillance/Conferencing

  • 3G-SDI and IP Streaming

  • 1080p60 Capture and Streaming

  • C/CS Mount; 122° FOV Lens Included


KEY FEATURES

• Panasonic 1/2.7” inch HD CMOS Sensor

• 3G-SDI High Definition Video Output

• H.264, H.265 & MJPEG IP Streaming Output (dual stream)

• High performance in low illumination situations

• Full 1920x1080p HD Resolutions up to 60 frames per second via SDI

• 2D and 3D noise reduction with our latest “low noise CMOS sensor”

• Wide Dynamic Range • Menu controls on back of camera

• RS485 and IP remote camera control

• C/CS Type Lens Mount

• Standard 1/4-20 female thread for camera mounting (top + bottom)

• PoE (Power over Ethernet) or 12VDC

• Hold left on Menu Navigation button for 5+ seconds to toggle Dynamic or Static IP addressing

• 3-year warranty

• Photobooth capable

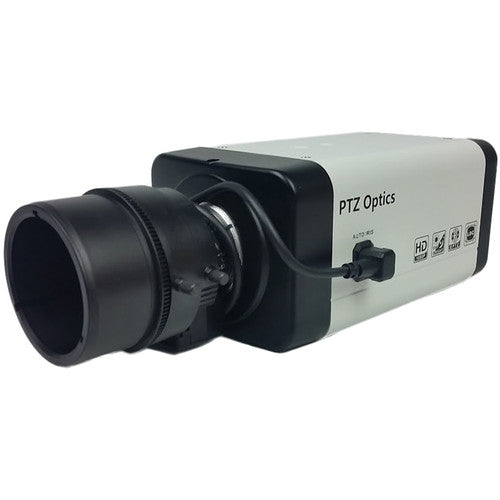

The PTZOptics PTVL-ZCAM is a 1080p box camera for capturing HD video with a variety of lenses. With support for 3G-SDI & IP Streaming this camera is ideal for broadcasting high definition video signals for broadcast, surveillance or video conferencing applications up to 1080p/60 resolution. The PTVL-ZCAM comes complete with your first lens with 4X Zoom and a 122° wide angle field of view.

PTZOptics PTVL-ZCAM 3G-SDI Box Camera

SKU: PTVLZCAM | UPC: 737993157694
Authorized Dealer Authorized PTZOptics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$499.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
PTZOptics PTVL-ZCAM 3G-SDI Box Camera $499.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>For Broadcast/Surveillance/Conferencing</li>\n <li>3G-SDI and IP Streaming</li>\n <li>1080p60 Capture and Streaming</li>\n <li>C/CS Mount; 122° FOV Lens Included</li>\n</ul>
Complete Your Solution
e5c506bd8fcb4a2593a75fa3638b545a
PTZOptics

PTZOptics PTVL-ZCAM 3G-SDI Box Camera

$499.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

Video CMOS Sensor 1/2.7” CMOS, 2.07 Mega Pixels

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

≥55dB

N/A

Gain

N/A

N/A

Shutter Speed Range

1/30s - 1/10000s

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Vertical Flip & Mirror Supported

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI, RJ45 IP Network

N/A

Audio Input

N/A

N/A

Audio

AAC unbalanced stereo (IP Stream only)

N/A

Camera Control

RS485 and IP remote camera control

N/A

Focal Length

F 2.8mm ~ 12mm, F1.4+

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

PoE (Power over Ethernet) or 12VDC

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
