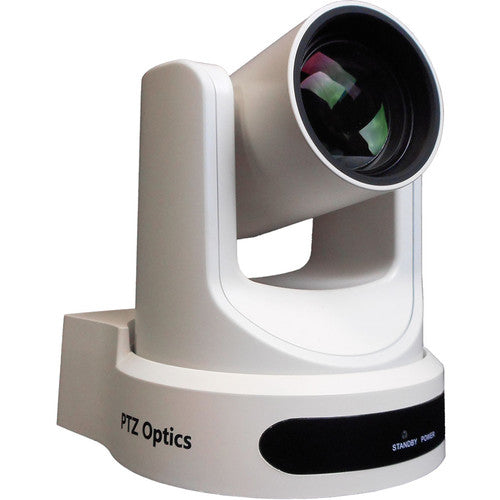

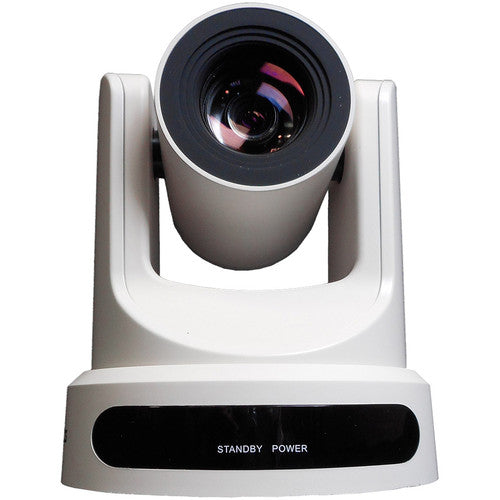

PTZOptics PT20X-SDI-WH-G2 Videoconferencing PTZ Camera

Product Summary

PTZOptics 20X-SDI Gen2 PTZ Camera with 20x Optical Zoom (White)

The PTZOptics 20X-SDI Gen2 PTZ Camera (White) is a professional Full HD camera built for live streaming, broadcast conferencing, corporate AV, education, houses of worship, and multicamera production. Featuring a 1/2.7" 2.1MP CMOS sensor, 20x optical zoom, and professional 3G-SDI output, the camera captures smooth 1080p HD video at up to 60/50 fps while providing extensive streaming, connectivity, and remote-control capabilities.

Part of PTZOptics' second-generation camera lineup, the 20X-SDI Gen2 expands upon earlier models with higher frame-rate video and support for H.265 and MJPEG streaming in addition to H.264.

Full HD 1080p60/50 Video

Capture smooth, detailed Full HD video at up to 1080p60/50, making the camera well suited for presentations, lectures, worship services, corporate meetings, and professional live productions.

Imaging Features

  • 1/2.7" 2.1MP CMOS sensor
  • Full HD 1080p video at up to 60/50 fps
  • 0.5 lux minimum illumination at f/1.8
  • Wide Dynamic Range
  • 2D and 3D noise reduction
  • Motorized pan, tilt, and zoom

Wide Dynamic Range and integrated noise reduction help maintain clear, consistent images across challenging lighting conditions.

Powerful 20x Optical Zoom

The integrated 4.4–88.5mm lens provides a versatile 20x optical zoom range, allowing the camera to capture wider meeting-room views as well as detailed close-ups of presenters and participants.

Lens Specifications

  • 4.4–88.5mm focal length
  • 20x optical zoom
  • f/1.8–f/2.8 aperture
  • 0.5 lux minimum illumination at f/1.8

The combination of long optical zoom and strong low-light performance makes the camera particularly useful in conference rooms, classrooms, auditoriums, sanctuaries, and other medium to large spaces.

Professional 3G-SDI Connectivity

The 3G-SDI output provides a reliable connection to compatible professional video switchers and production equipment for broadcast and conferencing applications.

In addition to SDI, the camera provides HDMI, LAN, and composite video outputs. SDI, HDMI, and LAN can operate simultaneously at the same selected resolution, giving integrators greater flexibility when distributing video to multiple destinations.

The composite output operates separately at 480i/576i resolution.

Professional IP Streaming

The camera's LAN connection supports direct network streaming, allowing video to be distributed to compatible streaming services, content delivery networks, and other IP destinations.

Streaming Capabilities

  • H.264 HD/SD dual streaming
  • H.265 HD/SD dual streaming
  • MJPEG single streaming
  • RTSP streaming
  • Direct network distribution
  • LAN-based camera control

This allows the camera to function as both a professional video source and an IP streaming device without requiring a separate encoder for supported workflows.

Multiple AV Connections

The 20X-SDI Gen2 offers extensive connectivity for integration into professional AV systems.

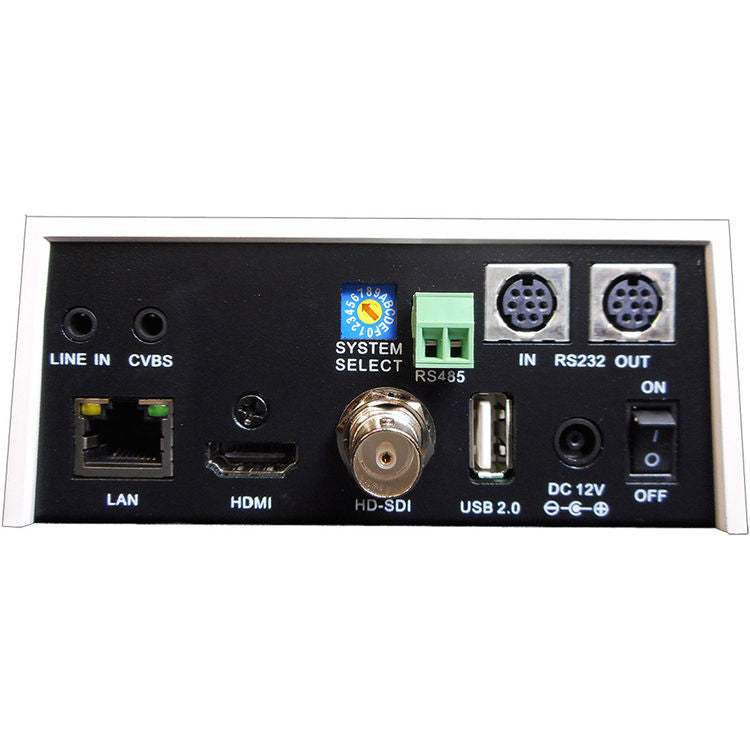

Connectivity

  • 3G-SDI output
  • HDMI output
  • LAN port
  • Composite video output
  • RS-232 input and output
  • RS-485 port
  • 3.5mm audio input
  • USB 2.0 service port

The 3.5mm audio input allows external audio to be embedded into an HDMI signal or LAN stream, simplifying combined audio/video distribution.

The USB 2.0 connection is intended for firmware updates rather than USB video output.

Power over Ethernet

The LAN port supports Power over Ethernet (PoE), allowing compatible installations to deliver network connectivity, camera control, streaming, and power through the network infrastructure.

This can simplify permanent installations by reducing the amount of separate cabling required at the camera location.

Flexible Camera Control

The camera supports multiple professional control methods for standalone and integrated AV environments.

Control Options

  • LAN network control
  • ONVIF network control
  • RS-232 control
  • VISCA commands
  • RS-485 connectivity
  • Included IR remote
  • PTZOptics Network Control applications
  • PTZOptics VISCA Control applications

NewTek TriCaster Integration

The 20X-SDI Gen2 can be integrated with compatible NewTek TriCaster production systems. Multiple cameras can be connected and controlled directly through TriCaster software using supported RS-232 workflows.

IP-based TriCaster control is also possible with compatible third-party software.

Programmable Presets

Store frequently used camera positions for rapid recall during meetings, broadcasts, lectures, and live productions.

Preset Capabilities

  • Up to 64 presets stored in the camera
  • Up to 255 presets via RS-232
  • Up to 10 presets accessible from the IR remote
  • 0.1° preset accuracy

The included IR remote can also control up to four cameras and provides access to camera settings through the on-screen display.

Open-Source Customization

The PTZOptics Gen2 platform supports customization through HTML commands, providing developers and AV integrators with additional flexibility when incorporating the camera into specialized control, automation, and streaming systems.

Flexible Installation

The camera can be used as a desktop-mounted PTZ solution or installed overhead using an optional PTZOptics ceiling-mount bracket.

This installation flexibility makes it suitable for both temporary production setups and permanently integrated AV systems.

PTZOptics PT20X-SDI-WH-G2 Videoconferencing PTZ Camera

SKU: PT20XSDIWHG2 | UPC: 737993157533
Authorized Dealer Authorized PTZOptics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,699.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
PTZOptics PT20X-SDI-WH-G2 Videoconferencing PTZ Camera $1,699.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 20x Optical Zoom
  • Professional 3G-SDI Output
  • Simultaneous SDI HDMI LAN
  • 0.5-Lux Low-Light Performance

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration
  • ⛪ House of Worship
  • 🏛️ Government

Technical Details

Specifications

Resolution
4K
Optical Zoom
3x
Pan Angle
±170°
Tilt Angle
Up: 90° Down: 30°
Output
1 x 3G-SDI, 1 x HDMI (1.3), 1 x RJ45 (10 m/100 m adaptive Ethernet port) (IP network interface), 1 x 3.5 mm Composite
Audio Input
1 x 3.5 mm line in (for embedding into IP stream only)
Power
Input: 12 VDC (10.8 - 13.0 VDC)
PTZOptics

PTZOptics PT20X-SDI-WH-G2 Videoconferencing PTZ Camera

$1,699.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.7" CMOS progressive, 2.12 MP

N/A

Resolution

4K

N/A

Signal Sysyetm

NTSC, PAL

N/A

Signal To Noise Ratio

-

N/A

Gain

-

N/A

Shutter Speed Range

1/30 - 1/10000 sec

N/A

Exposure Control

-

N/A

White Balance

-

N/A

Image Stabilization

-

N/A

Image Flip

-

N/A

ICR

-

N/A

Sync

-

N/A

Output

1 x 3G-SDI, 1 x HDMI (1.3), 1 x RJ45 (10 m/100 m adaptive Ethernet port) (IP network interface), 1 x 3.5 mm Composite

N/A

Audio Input

1 x 3.5 mm line in (for embedding into IP stream only)

N/A

Audio

-

N/A

Camera Control

1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance) 1 x RS-232 output

N/A

Focal Length

Integrated 4.4 - 88.5mm, f/1.8 - f/2.8

N/A

Minimum Object Distance

-

N/A

Pan Angle

±170°

N/A

Tilt Angle

Up: 90° Down: 30°

N/A

Pan Speed

-

N/A

Tilt Speed

-

N/A

Presets

Up to 64 presets (255 presets via RS-232)

N/A

Operating Temperature

23 to 104°F (-5 to 40°C

N/A

Power

Input: 12 VDC (10.8 - 13.0 VDC)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.5 lux at f/1.8, AGC on

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
