Key Features
- Full HD 1080p60 Video
- 12x Optical Zoom
- Professional 3G-SDI Output
- Simultaneous SDI HDMI LAN
- 0.5-Lux Low-Light Performance
1
/
4
1
4
Product Summary

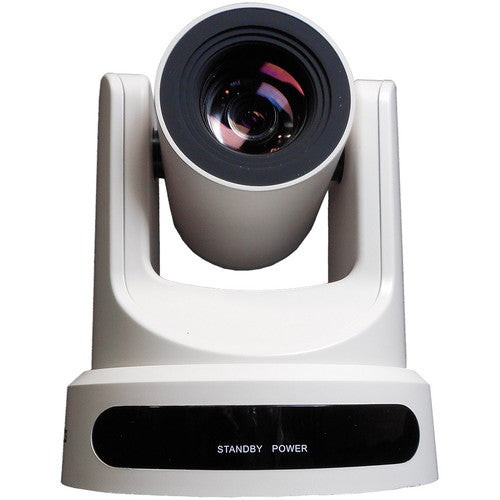

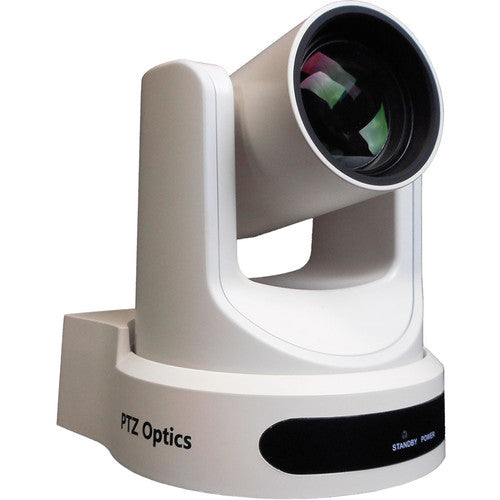

PTZOptics PT12X-SDI-WH-G2 12X-SDI Gen2 PTZ Camera with 12x Optical Zoom (White)
The PTZOptics PT12X-SDI-WH-G2 12X-SDI Gen2 PTZ Camera is a professional Full HD live streaming and conferencing camera designed for corporate AV, education, houses of worship, broadcast production, and other professional video applications. Finished in white, it combines a 1/2.7" 2.1MP CMOS sensor, 12x optical zoom, and professional 3G-SDI connectivity with flexible IP streaming and remote-control capabilities.
The Gen2 platform supports 1080p video at up to 60/50 fps and expands streaming capabilities with H.265 and MJPEG support in addition to H.264.
Full HD 1080p60/50 Video
The PT12X-SDI-WH-G2 captures smooth 1080p HD video at up to 60/50 fps, making it well suited for presentations, lectures, meetings, worship services, live streaming, and professional multicamera productions.
Its integrated imaging technologies help maintain clear, consistent video across a variety of lighting conditions.
Imaging Features
- 1/2.7" 2.1MP CMOS sensor
- Full HD 1080p video at up to 60/50 fps
- 0.5 lux minimum illumination at f/1.8
- Wide Dynamic Range
- 2D and 3D noise reduction
- Motorized pan, tilt, and zoom
Versatile 12x Optical Zoom
The integrated 3.5–42.3mm lens provides a 12x optical zoom range, offering the flexibility needed for both wider group shots and detailed views of individual presenters.
Lens Specifications
- 3.5–42.3mm focal length
- 12x optical zoom
- f/1.8–f/2.8 aperture
- 0.5 lux minimum illumination at f/1.8
The fast aperture, Wide Dynamic Range, and integrated noise reduction help deliver usable images even in challenging or relatively low-light environments.
Professional 3G-SDI Output
A professional 3G-SDI output allows the PT12X-SDI-WH-G2 to connect directly to compatible video switchers and other broadcast or production equipment.
In addition to SDI, the camera provides HDMI, LAN, and composite video outputs. The SDI, LAN, and HDMI connections can operate simultaneously at the same selected resolution, providing additional flexibility for professional AV installations.
The composite output operates separately at 480i/576i resolution.
IP Streaming
The integrated LAN connection supports network-based video streaming and allows the camera to distribute content directly to compatible CDNs, streaming services, and other IP destinations.
Streaming Capabilities
- H.264 HD/SD dual streaming
- H.265 HD/SD dual streaming
- MJPEG single streaming
- RTSP streaming
- Direct network distribution
The camera can transmit two H.264 or H.265 RTSP streams simultaneously, with one HD and one SD stream, or provide a single MJPEG stream.
Extensive AV Connectivity

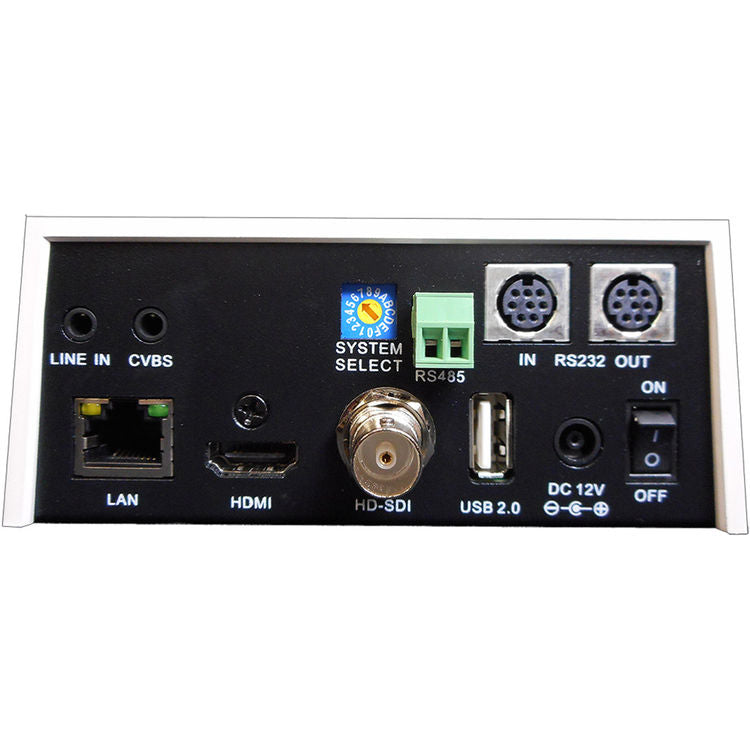

The PT12X-SDI-WH-G2 provides a broad selection of professional AV and control connections for integration into conferencing, streaming, and production environments.
Connectivity
- 3G-SDI output
- HDMI output
- LAN port
- Composite video output
- RS-232 input and output
- RS-485 port
- 3.5mm audio input
- USB 2.0 service port
The 3.5mm audio input can be used to embed external audio into an HDMI signal or LAN stream, allowing audio and video to be delivered together.
The USB 2.0 connection is intended for firmware updates rather than USB video output.
Power over Ethernet
The LAN connection supports Power over Ethernet (PoE) in addition to network streaming and camera control.
PoE can simplify permanent installations by allowing compatible network infrastructure to provide power and network connectivity to the camera through the same Ethernet connection.
Flexible PTZ Control
Multiple control options make the camera suitable for both standalone operation and integration into larger professional AV systems.
Control Options
- LAN network control
- ONVIF network control
- RS-232
- RS-485
- VISCA commands
- Included IR remote control
- PTZOptics Network Control applications
- PTZOptics VISCA Control applications
NewTek TriCaster Integration
The PT12X-SDI-WH-G2 supports integration with NewTek TriCaster production systems, including TriCaster Mini models. Multiple cameras can be connected using supported RS-232 workflows and operated through the TriCaster software.
IP-based TriCaster control can also be implemented using compatible third-party software.
Programmable Camera Presets
Frequently used camera positions can be stored as presets for fast recall during presentations, meetings, lectures, broadcasts, and live productions.
Preset Capabilities
- Up to 64 presets stored in the camera
- Up to 255 presets via RS-232
- Up to 10 presets accessible using the IR remote
- 0.1° preset accuracy
The included IR remote can control up to four cameras and provides access to numerous camera settings through the on-screen display.
Open-Source Customization
The PTZOptics Gen2 platform supports customization using HTML commands, giving developers and professional AV integrators additional flexibility when incorporating the camera into custom control, automation, and streaming systems.
Flexible Installation
The camera can be positioned on a desktop or installed overhead with an optional PTZOptics ceiling-mount bracket, making it adaptable to both temporary and permanently integrated AV environments.
PTZOptics PT12X-SDI-WH-G2 Videoconferencing PTZ Camera
Authorized Dealer
Authorized
PTZOptics
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$1,579.00
BACK 2 SCHOOL SALE | additional discount in cart
PTZOptics PT12X-SDI-WH-G2 Videoconferencing PTZ Camera
$1,579.00
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Best For
- 🎓 Education
- 🏢 Corporate Collaboration
- ⛪ House of Worship
- 🏛️ Government
Product Description
PTZOptics PT12X-SDI-WH-G2 12X-SDI Gen2 PTZ Camera with 12x Optical Zoom (White)
The PTZOptics PT12X-SDI-WH-G2 12X-SDI Gen2 PTZ Camera is a professional Full HD live streaming and conferencing camera designed for corporate AV, education, houses of worship, broadcast production, and other professional video applications. Finished in white, it combines a 1/2.7" 2.1MP CMOS sensor, 12x optical zoom, and professional 3G-SDI connectivity with flexible IP streaming and remote-control capabilities.
The Gen2 platform supports 1080p video at up to 60/50 fps and expands streaming capabilities with H.265 and MJPEG support in addition to H.264.
Full HD 1080p60/50 Video
The PT12X-SDI-WH-G2 captures smooth 1080p HD video at up to 60/50 fps, making it well suited for presentations, lectures, meetings, worship services, live streaming, and professional multicamera productions.
Its integrated imaging technologies help maintain clear, consistent video across a variety of lighting conditions.
Imaging Features
- 1/2.7" 2.1MP CMOS sensor
- Full HD 1080p video at up to 60/50 fps
- 0.5 lux minimum illumination at f/1.8
- Wide Dynamic Range
- 2D and 3D noise reduction
- Motorized pan, tilt, and zoom
Versatile 12x Optical Zoom
The integrated 3.5–42.3mm lens provides a 12x optical zoom range, offering the flexibility needed for both wider group shots and detailed views of individual presenters.
Lens Specifications
- 3.5–42.3mm focal length
- 12x optical zoom
- f/1.8–f/2.8 aperture
- 0.5 lux minimum illumination at f/1.8
The fast aperture, Wide Dynamic Range, and integrated noise reduction help deliver usable images even in challenging or relatively low-light environments.
Professional 3G-SDI Output
A professional 3G-SDI output allows the PT12X-SDI-WH-G2 to connect directly to compatible video switchers and other broadcast or production equipment.
In addition to SDI, the camera provides HDMI, LAN, and composite video outputs. The SDI, LAN, and HDMI connections can operate simultaneously at the same selected resolution, providing additional flexibility for professional AV installations.
The composite output operates separately at 480i/576i resolution.
IP Streaming
The integrated LAN connection supports network-based video streaming and allows the camera to distribute content directly to compatible CDNs, streaming services, and other IP destinations.
Streaming Capabilities
- H.264 HD/SD dual streaming
- H.265 HD/SD dual streaming
- MJPEG single streaming
- RTSP streaming
- Direct network distribution
The camera can transmit two H.264 or H.265 RTSP streams simultaneously, with one HD and one SD stream, or provide a single MJPEG stream.
Extensive AV Connectivity
The PT12X-SDI-WH-G2 provides a broad selection of professional AV and control connections for integration into conferencing, streaming, and production environments.
Connectivity
- 3G-SDI output
- HDMI output
- LAN port
- Composite video output
- RS-232 input and output
- RS-485 port
- 3.5mm audio input
- USB 2.0 service port
The 3.5mm audio input can be used to embed external audio into an HDMI signal or LAN stream, allowing audio and video to be delivered together.
The USB 2.0 connection is intended for firmware updates rather than USB video output.
Power over Ethernet
The LAN connection supports Power over Ethernet (PoE) in addition to network streaming and camera control.
PoE can simplify permanent installations by allowing compatible network infrastructure to provide power and network connectivity to the camera through the same Ethernet connection.
Flexible PTZ Control
Multiple control options make the camera suitable for both standalone operation and integration into larger professional AV systems.
Control Options
- LAN network control
- ONVIF network control
- RS-232
- RS-485
- VISCA commands
- Included IR remote control
- PTZOptics Network Control applications
- PTZOptics VISCA Control applications
NewTek TriCaster Integration
The PT12X-SDI-WH-G2 supports integration with NewTek TriCaster production systems, including TriCaster Mini models. Multiple cameras can be connected using supported RS-232 workflows and operated through the TriCaster software.
IP-based TriCaster control can also be implemented using compatible third-party software.
Programmable Camera Presets
Frequently used camera positions can be stored as presets for fast recall during presentations, meetings, lectures, broadcasts, and live productions.
Preset Capabilities
- Up to 64 presets stored in the camera
- Up to 255 presets via RS-232
- Up to 10 presets accessible using the IR remote
- 0.1° preset accuracy
The included IR remote can control up to four cameras and provides access to numerous camera settings through the on-screen display.
Open-Source Customization
The PTZOptics Gen2 platform supports customization using HTML commands, giving developers and professional AV integrators additional flexibility when incorporating the camera into custom control, automation, and streaming systems.
Flexible Installation
The camera can be positioned on a desktop or installed overhead with an optional PTZOptics ceiling-mount bracket, making it adaptable to both temporary and permanently integrated AV environments.
Technical Details
Specifications
Resolution
HD 1080
Optical Zoom
12x
Pan Angle
±170°
Tilt Angle
Up: 90° Down: 30°
Output
1 x 3G-SDI, 1 x HDMI (1.3), 1 x RJ45 (10 m/100 m adaptive Ethernet port) (IP network interface), 1 x 3.5 mm Composite
Audio Input
1 x 3.5 mm line in (for embedding into IP stream only)
Power
Input: 12 VDC (10.8 - 13.0 VDC)
