Product Summary

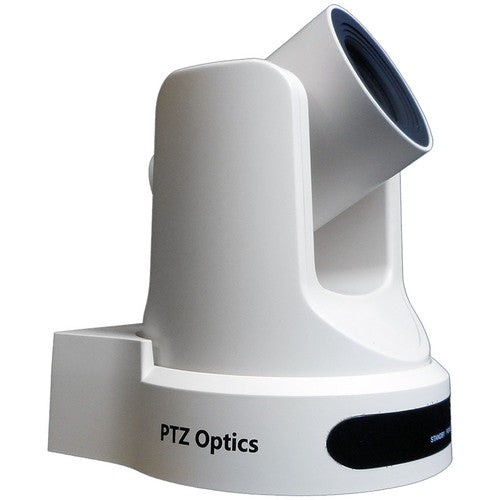

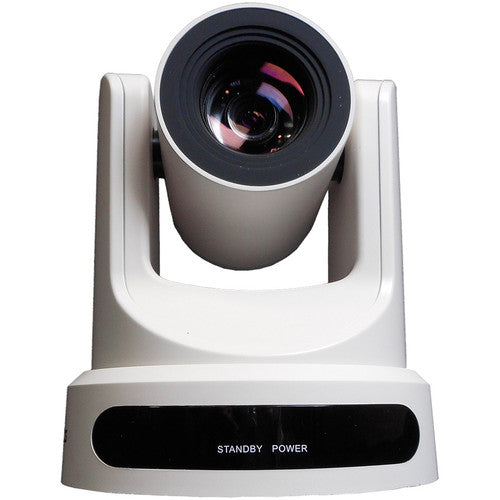

PTZOptics PT20X-USB-WH-G2 20X-USB Gen2 PTZ Camera (White)

The PTZOptics PT20X-USB-WH-G2 20X-USB Gen2 PTZ Camera is a professional Full HD camera designed for video conferencing, live streaming, education, houses of worship, corporate meetings, and other professional AV applications. Finished in white, the camera combines a 1/2.7" CMOS sensor, powerful 20x optical zoom, and convenient USB 3.0 connectivity for direct integration with computers and web conferencing systems.

The second-generation design supports video at up to 1080p60/50, delivering smoother motion than earlier 30 fps models. It also expands IP streaming capabilities with support for H.265, H.264, and MJPEG video compression.

Full HD 1080p60 Video

The PT20X-USB-WH-G2 captures detailed Full HD video at up to 1080p60/50, providing smooth reproduction of presenters, meetings, lectures, and live events.

Imaging Features

  • 1/2.7" CMOS image sensor
  • Full HD video up to 1080p60/50
  • 0.5 lux minimum illumination
  • Smooth PTZ operation
  • White camera housing

Its low-light capabilities help maintain usable image quality in conference rooms, classrooms, sanctuaries, and other spaces where lighting conditions can vary.

Powerful 20x Optical Zoom

The integrated 4.4–88.5mm zoom lens provides a versatile 20x optical zoom range, allowing users to capture both wider room views and detailed close-ups from a distance.

Lens Specifications

  • 4.4–88.5mm focal length
  • 20x optical zoom
  • f/1.8–2.8 maximum aperture
  • Suitable for medium to large meeting spaces

The extended optical zoom makes the camera ideal for capturing presenters, speakers, instructors, and meeting participants without sacrificing the image quality associated with optical magnification.

USB 3.0 Connectivity

A key feature of the PT20X-USB-WH-G2 is its USB 3.0 output, which provides a convenient connection to compatible computers for HD web conferencing and video production.

This makes the camera particularly well suited for computer-based conferencing systems and software-driven AV environments.

Flexible IP Streaming

The Gen2 platform supports multiple video compression formats for efficient IP streaming and integration with a variety of production workflows.

Video Compression

  • H.265
  • H.264
  • MJPEG

H.265 provides efficient compression for bandwidth-conscious network applications, while H.264 and MJPEG offer compatibility with a broad range of existing video and streaming systems.

Remote Pan, Tilt, and Zoom

Motorized pan, tilt, and zoom operation allows users to remotely adjust framing during meetings, presentations, classes, and live productions. Combined with the 20x optical zoom lens, the camera can cover multiple areas of a room from a fixed installation position.

Designed for Web Conferencing

With USB connectivity and Full HD video, the PT20X-USB-WH-G2 provides a practical camera solution for professional web conferencing environments. Connect the camera to a compatible computer and integrate it into your preferred conferencing or production workflow.

PTZOptics PT20X-USB-WH-G2 Videoconferencing PTZ Camera

SKU: PT20XUSBWHG2 | UPC: 737993159100
Authorized Dealer Authorized PTZOptics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,799.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
PTZOptics PT20X-USB-WH-G2 Videoconferencing PTZ Camera $1,799.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 20x Optical Zoom
  • USB 3.0 Video Output
  • H.265 Network Video Streaming
  • 0.5-Lux Low-Light Performance

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration
  • ⛪ House of Worship
  • 🏛️ Government

Technical Details

Specifications

Resolution
HD 1080
Optical Zoom
20x
Pan Angle
±170°
Tilt Angle
Up: 90° Down: 30°
Output
1 x USB 3.0 (type B, female) 1 x HDMI (1.3) 1 x RJ45 (10 m/100 m adaptive Ethernet port) 1 x 3.5 mm Component
Audio Input
1 x 3.5 mm line in (for embedding into IP stream only)
Power
Input: 12 VDC (10.8 - 13.0 VDC)
dji-spark-fly-more-combo-sky-blue-cppt000902-dji-phantom-4-pro-quadcopter-cppt000488
PTZOptics

PTZOptics PT20X-USB-WH-G2 Videoconferencing PTZ Camera

$1,799.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.7" CMOS progressive, 2.12 MP

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

NTSC, PAL

N/A

Signal To Noise Ratio

-

N/A

Gain

-

N/A

Shutter Speed Range

1/30 - 1/10000 sec

N/A

Exposure Control

-

N/A

White Balance

-

N/A

Image Stabilization

-

N/A

Image Flip

Supported (vertical)

N/A

ICR

-

N/A

Sync

-

N/A

Output

1 x USB 3.0 (type B, female) 1 x HDMI (1.3) 1 x RJ45 (10 m/100 m adaptive Ethernet port) 1 x 3.5 mm Component

N/A

Audio Input

1 x 3.5 mm line in (for embedding into IP stream only)

N/A

Audio

-

N/A

Camera Control

1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance) 1 x RS-232 output

N/A

Focal Length

Integrated 4.4 - 88.5mm, f/1.8 - f/2.8

N/A

Minimum Object Distance

-

N/A

Pan Angle

±170°

N/A

Tilt Angle

Up: 90° Down: 30°

N/A

Pan Speed

-

N/A

Tilt Speed

-

N/A

Presets

Up to 64 presets (255 presets via RS-232)

N/A

Operating Temperature

23 to 104°F (-5 to 40°C

N/A

Power

Input: 12 VDC (10.8 - 13.0 VDC)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.5 lux at f/1.8, AGC on

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
