Key Features
- Full HD HDMI video up to 1080p59.94
- 30× optical zoom and 65° wide horizontal view
- 16 programmable positions
- VISCA over IP and serial control
- Desktop or ceiling mounting
$1,669.00

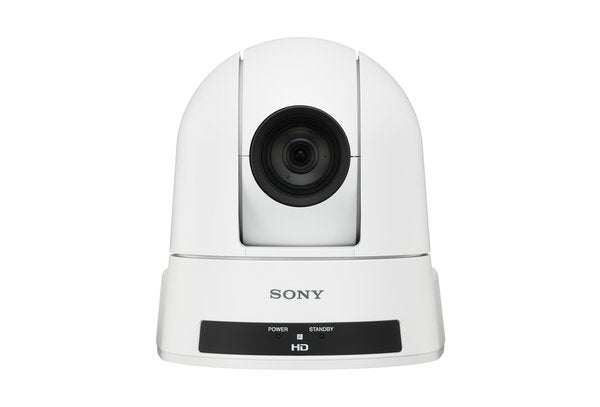

The Sony SRG-300H/W is a white Full HD PTZ camera with 30× optical zoom for lecture halls, boardrooms, training spaces, and houses of worship. It’s a good fit when the camera needs to stay in a fixed position and an operator needs to move between a wide view and a close-up. In a lecture hall, that might mean showing the entire teaching area at the start of class, then zooming in on the instructor at the lectern. In a boardroom, the same camera can frame the table for introductions and move to a tighter shot when someone presents.
The lens starts at a 65° horizontal field of view and gives the operator 30× optical zoom to frame a subject across the room. Autofocus can help when switching between subjects at different distances, and manual focus is available for a repeatable shot. For regularly used views, the camera supports 16 programmable presets through compatible control. An operator can set up views for a lectern, a panel table, and the audience, then recall them as the program moves from a presentation to Q&A.
The 1/2.8-type Exmor CMOS sensor supports 1920 × 1080 at up to 59.94 progressive frames per second. That frame rate is useful when the person on camera moves around the stage, demonstrates equipment, or writes at a board. Sony’s View-DR processing is designed for scenes with bright and dark areas in the same frame, such as a meeting room with windows behind the participants. XDNR reduces image noise in dimmer scenes. Test the camera under the lighting the room actually uses, especially for services or events that change lighting between segments.
Connect the camera’s HDMI output to a compatible switcher, capture device, or conferencing system. For a computer-based lecture capture or livestream setup, HDMI capture equipment provides the path into the computer. A separate Ethernet connection can carry VISCA camera commands, allowing an operator to recall shots and adjust framing from a control desk. The camera also supports RS-232C and RS-422 for installations that already use serial control. Check the receiving equipment’s video formats and controller compatibility before choosing the wiring.
The camera supports desktop and ceiling installation, and electronic image flip keeps the picture upright when the unit is inverted. Use the supplied 12 V DC adapter and plan for power, HDMI, and any separate control cable. Before fixing the mount, check the 65° wide view from the proposed location. The zoom can bring a distant subject closer, while the wide end determines whether the camera can capture the whole table, stage, or teaching area.
The SRG-300H/W makes the most sense in an HDMI-based Full HD system that needs substantial optical reach and repeatable operator-controlled framing. Its combination of wide and tight shots, presets, and a choice of network or serial control is especially useful in rooms that host different events from the same camera position.
Technical Details
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comOnce we have all the information requested above, an account and order will be created.
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
1 year parts and labor. Camera block parts covered for 2 years under Sony’s U.S. limited warranty.
